SSMB Male RF Coaxial Connector – Right-Angle, Brass Body, PCB Solder Mount
SSMB Male RF Coaxial Connector – Right-Angle, Brass Body, PCB Solder Mount
SSMB Male RF Coaxial Connector – Right-Angle, Brass Body, PCB Solder Mount
SSMB Male RF Coaxial Connector – Right-Angle, Brass Body, PCB Solder Mount
SSMB Male RF Coaxial Connector – Right-Angle, Brass Body, PCB Solder Mount
SSMB Male RF Coaxial Connector – Right-Angle, Brass Body, PCB Solder Mount
Specifications
Brand Name :
SIPU
Model Number :
SSMB-JWHD1
Certification :
ISO9001, RoHS, CE
Place of Origin :
CHINA
MOQ :
100
Price :
Discuss
Payment Terms :
L/C, T/T, Western Union
Packaging Details :
Carton
Supply Ability :
100000pcs/year
Delivery Time :
5-8work days
Product name :
SSMB Male RF Coaxial Connector – Right-Angle, Brass Body, PCB Solder Mount
Gender :
Male
Type :
Straight
Material :
Brass
Plating :
Gold
Insulating medium :
PTFE
Description

SSMB Male RF Coaxial Connector – Right-Angle, Brass Body, PCB Solder Mount

Product Overview

The SSMB series is a miniature push-in RF connector known for its compact size, light weight, fast and convenient connection, and good shock resistance. It is especially suitable for connecting RF coaxial cables in micro radio devices and electronic instruments where space and reliability are critical.

Applications

Electronic instruments

Radio communication equipment

Compact RF modules

Product Features

Right-angle (bent) PCB soldering structure

Small size and lightweight design

Good vibration and shock resistance

Easy installation with reliable push-in connection

Excellent soldering performance and electrical stability

Product Specifications

SSMB Male RF Coaxial Connector – Right-Angle, Brass Body, PCB Solder Mount

Important Technical Parameters

Electrical property

Temperature range

 -55～+155℃

Characteristic impedance

 50Ω

Frequency range

 DC-3GHz

Dielectric withstanding voltage

 500V

VSWR

 ≤1.5

Insulation resistance

 ≥1000MΩ

Insertion loss

 ≤0.1√F(GHz)dB

Contact resistance

Center conductor

 ≤5.0mΩ

Mechanical property

Outer conductor

 ≤2.5mΩ

Durability

 500times

Materials and Surface Treatment

Center conductor

Brass,gold plating

Insulating medium

PTFE

Outer conductor

Brass,gold plating

 / /

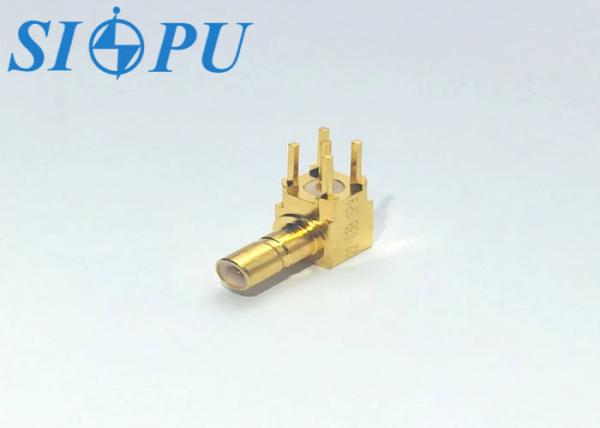

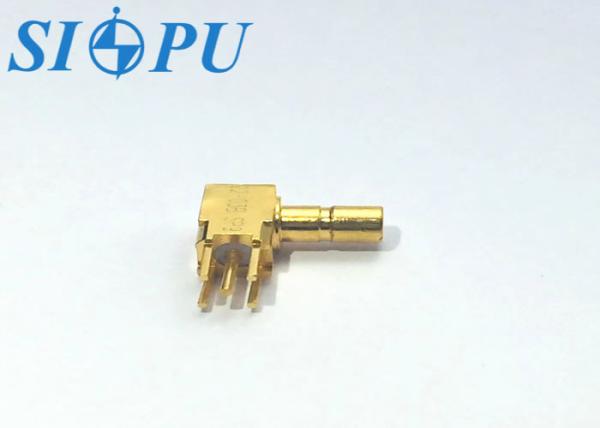

Product Image Gallery

SSMB Male RF Coaxial Connector – Right-Angle, Brass Body, PCB Solder MountSSMB Male RF Coaxial Connector – Right-Angle, Brass Body, PCB Solder Mount
