SSMB Male RF Coaxial Connector – Straight Microstrip Type, Flange Mounted, Solderable
SSMB Male RF Coaxial Connector – Straight Microstrip Type, Flange Mounted, Solderable
SSMB Male RF Coaxial Connector – Straight Microstrip Type, Flange Mounted, Solderable
SSMB Male RF Coaxial Connector – Straight Microstrip Type, Flange Mounted, Solderable
SSMB Male RF Coaxial Connector – Straight Microstrip Type, Flange Mounted, Solderable
SSMB Male RF Coaxial Connector – Straight Microstrip Type, Flange Mounted, Solderable
Specifications
Brand Name :
SIPU
Model Number :
SSMB-JFD1
Certification :
ISO9001, RoHS, CE
Place of Origin :
CHINA
MOQ :
50
Payment Terms :
L/C, T/T, Western Union
Packaging Details :
master carton
Price :
Discuss
Supply Ability :
100000pcs/year
Delivery Time :
5-8work days
Product name :
SSMB Male RF Coaxial Connector – Straight Microstrip Type, Flange Mounted, Solderable
Gender :
Male
Type :
Straight
Material :
Brass
Plating :
Gold
Insulating medium :
PTFE
Durability :
500 times
Description

SSMB Male RF Coaxial Connector – Straight Microstrip Type, Flange Mounted, Solderable

Product Overview

The SSMB series coaxial connector is a miniature push-in connector known for its small size, light weight, ease of use, and good shock resistance. Compliant with IEC 60169-19, it is compatible with internationally standardized counterparts, making it suitable for global applications in high-frequency systems.

Applications

Wireless communication equipment

Electronic instruments

Compact RF devices and modules

Product Features

Two-hole flange mount for secure installation

Straight microstrip design

Compact and lightweight

Easy and reliable push-in connection

Excellent solderability and mechanical stability

Product Specifications

SSMB Male RF Coaxial Connector – Straight Microstrip Type, Flange Mounted, Solderable

Important Technical Parameters

Electrical property

Temperature range

 -55～+155℃

Characteristic impedance

 50Ω

Frequency range

 DC-3GHz

Dielectric withstanding voltage

 500V

VSWR

 ≤1.35

Insulation resistance

 ≥1000MΩ

Insertion loss

 ≤0.06√F(GHz)dB

Contact resistance

Center conductor

 ≤5.0mΩ

Mechanical property

Outer conductor

 ≤2.5mΩ

Durability

 500times

Materials and Surface Treatment

Center conductor

QSn, gold plating

Insulating medium

PTFE

Outer conductor

Brass, gold plating

 / /

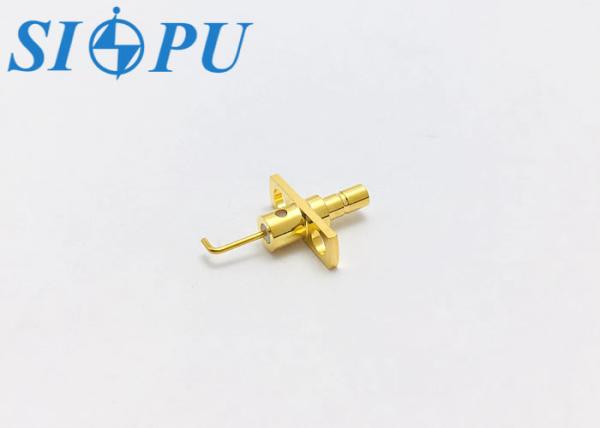

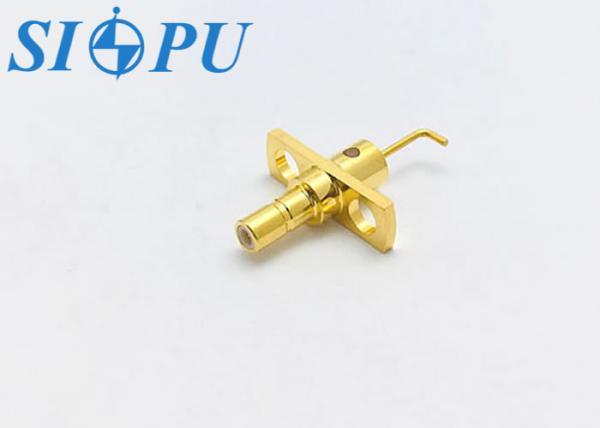

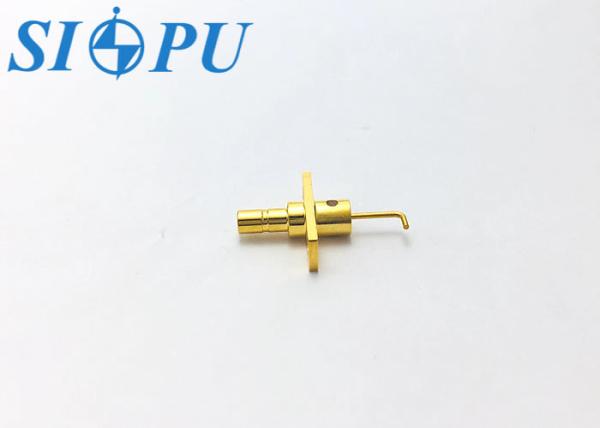

Product Image Gallery

SSMB Male RF Coaxial Connector – Straight Microstrip Type, Flange Mounted, SolderableSSMB Male RF Coaxial Connector – Straight Microstrip Type, Flange Mounted, Solderable
