Specifications
Brand Name :
GuRen
Model Number :
Q4P01-12PS
Certification :
ISO9001.CE.RoHS
Place of Origin :
china
MOQ :
1
Price :
＄19-199
Payment Terms :
L/C,D/P,T/T
Supply Ability :
1K units/week
Delivery Time :
3 weeks ARO
Packaging Details :
Standard/On Request
Air channel :
4 channel
Interface Specifications :
G1/8"
Applicable trachea :
6-8mm
Width :
56mm
Length :
87.5mm
Protection level :
IP51
Description

Q4P01-12PS 4-input 4-output gas-electric integrated slip ring connector, universal 4-channel slip ring, G1/8" interface, CE and ROHS certified, the default wire length is 250mm and can be adjusted, the signal transmission is stable, and it is suitable for ordinary rotating platforms.


Q4P01-12PS 4-input 4-output gas-electric integrated slip ring connector Features

1. Environmentally friendly compatibility: RoHS2.0/REACH compliant materials, no PFAS substances.
2. Corrosion-resistant treatment: anodized surface, resistant to acid and alkali environments.
3. Leak-proof design: G1/8" threaded interface design reduces leakage risk.
4. Wide voltage support: 0-440V AC and DC universal, adaptable to diversified control systems.
5. Excellent dynamic performance: rotation torque <0.3N·m, 250rpm speed ensures smooth movement.


Q4P01-12PS 4-input 4-output gas-electric integrated slip ring connector parameters

Electrical parameters

Parameter Value

Gas parameters

Parameter Value

Dielectric strength

500VCA@50Hz,60s

Number of trachea

4 in 4 out

Insulation resistance

≥500MΩ/300VDC

Pressure

-80KPa-0.8MPaor vacuum

Dynamic resistance change value

＜10mΩ

Rotational torque

<0.3N.m

Rated voltage

0～440VDC/VAC

Rotation speed

250rpm

Wire Specifications

AWG28 Teflon wire (depending on the specific current)

Shell material

Aluminum Alloy

Wire length

Default 250mm(Customizable)

Temperature

-30℃～+80℃

Contact material

Precious metal contacts

Operating humidity

0～85%RH

Protection level

IP51



Q4P01-12PS 4-input 4-output gas-electric integrated slip ring connector drawings


4-Input 4-Output Gas Electric Integrated Slip Ring For Automated Rotating Platforms


4-Input 4-Output Gas Electric Integrated Slip Ring For Automated Rotating Platforms

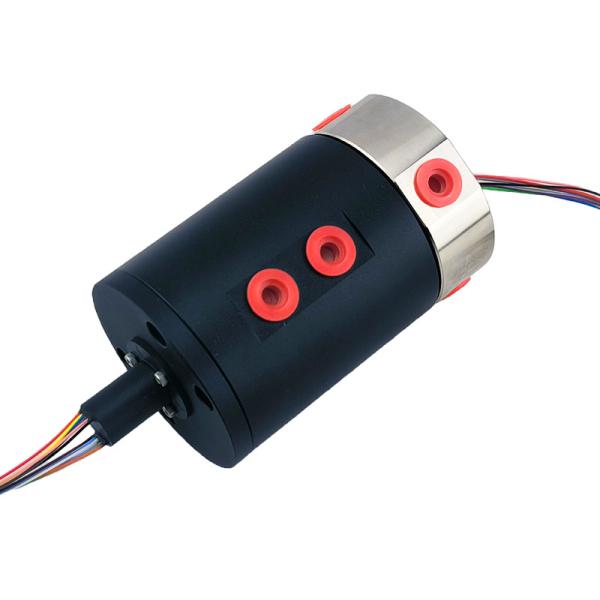

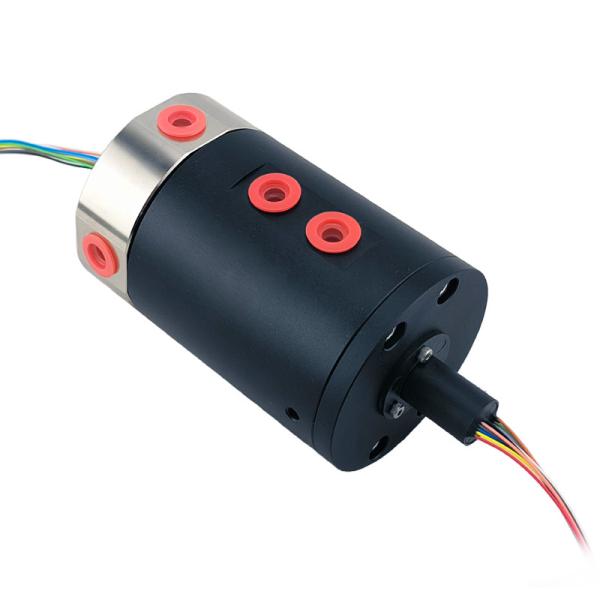

Q4P01-12PS 4-input 4-output gas-electric integrated slip ring connector pictures

4-Input 4-Output Gas Electric Integrated Slip Ring For Automated Rotating Platforms

4-Input 4-Output Gas Electric Integrated Slip Ring For Automated Rotating Platforms

4-Input 4-Output Gas Electric Integrated Slip Ring For Automated Rotating Platforms



Q4P01-12PS 4-input 4-output gas-electric integrated slip ring connector Application scenarios

Suitable for high-precision fields such as industrial automation, medical equipment, and new energy equipment, it solves the key bottleneck of the collaborative work of pneumatic/hydraulic actuators and electrical control systems on the rotating platform, and realizes the smooth execution of complex movements and the entanglement-free transmission of high-density information (fluid + electricity + signal).
