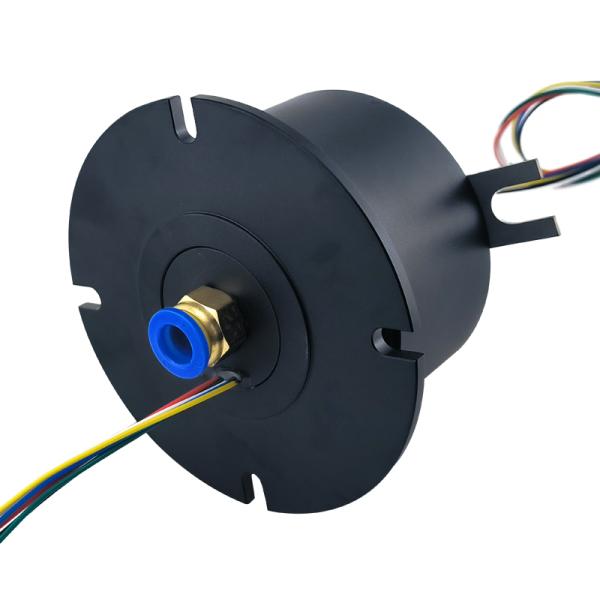

Gas - Electric Combination Rotary Joint Slip Ring With AWG22 Teflon Wire
Gas - Electric Combination Rotary Joint Slip Ring With AWG22 Teflon Wire
Gas - Electric Combination Rotary Joint Slip Ring With AWG22 Teflon Wire
Gas - Electric Combination Rotary Joint Slip Ring With AWG22 Teflon Wire
Gas - Electric Combination Rotary Joint Slip Ring With AWG22 Teflon Wire
Gas - Electric Combination Rotary Joint Slip Ring With AWG22 Teflon Wire
Gas - Electric Combination Rotary Joint Slip Ring With AWG22 Teflon Wire
Gas - Electric Combination Rotary Joint Slip Ring With AWG22 Teflon Wire
Specifications
Brand Name :
GuRen
Model Number :
Q1P03-6P05
Certification :
ISO9001.CE.RoHS
Place of Origin :
china
MOQ :
1
Price :
＄19-199
Payment Terms :
L/C,D/P,T/T
Supply Ability :
1K units/week
Delivery Time :
3 weeks ARO
Packaging Details :
Standard/On Request
Air channel :
1 channel
Interface Specifications :
G3/8”
Applicable trachea :
10-12mm
Circuit :
6-way
Width :
86mm
Length :
57.6mm
Current :
5A/10A
Description

Q1P03-6P05 single-channel gas-electric combined rotary joint, dedicated single-channel gas-electric slip ring, G3/8" large aperture interface, transmission of 6-way 2A signal. Optimized design for the rotary system of chemical equipment.


Q1P03-6P05 gas-electric combined rotary joint Features

1. Anti-clogging design: eddy current gas path structure to prevent crystal deposition.
2. Large aperture adaptation: G3/8" interface inner diameter 8mm, supports high viscosity fluid.
3. Long life contacts: gold-plated contacts + graphite lubrication, wear rate <0.1μm/million revolutions.
4. Dedicated single channel: 1 gas channel simplifies maintenance process and reduces failure rate.
5. Wide temperature range operation: -30℃~80℃ temperature, suitable for most use environments.


Q1P03-6P05 gas-electric combined rotary joint parameters

Electrical parameters

Parameter Value

Gas parameters

Parameter Value

Dielectric strength

500VCA@50Hz,60s

Number of trachea

1 in 1 out

Insulation resistance

≥500MΩ/300VDC

Pressure

-80KPa-0.8MPaor vacuum

Dynamic resistance change value

＜10mΩ

Rotational torque

<0.3N.m

Rated voltage

0～440VDC/VAC

Rotation speed

250rpm

Wire Specifications

AWG22 Teflon wire (depending on the specific current)

Shell material

Aluminum Alloy

Wire length

Default 250mm(Customizable)

Temperature

-30℃～+80℃

Contact material

Precious metal contacts

Operating humidity

0～85%RH

Protection level

IP51



Q1P03-6P05 gas-electric combined rotary joint drawings

Gas - Electric Combination Rotary Joint Slip Ring With AWG22 Teflon Wire


Q1P03-6P05 gas-electric combined rotary joint pictures

Gas - Electric Combination Rotary Joint Slip Ring With AWG22 Teflon Wire

Gas - Electric Combination Rotary Joint Slip Ring With AWG22 Teflon Wire


Q1P03-6P05 gas-electric combined rotary joint Application scenarios

Suitable for high-precision fields such as industrial automation, medical equipment, and new energy equipment, it solves the key bottleneck of the collaborative work of pneumatic/hydraulic actuators and electrical control systems on the rotating platform, and realizes the smooth execution of complex movements and the entanglement-free transmission of high-density information (fluid + electricity + signal).
