Gas Electric Combination Aluminum Slip Ring 8 Channel M5 Interface
Gas Electric Combination Aluminum Slip Ring 8 Channel M5 Interface
Gas Electric Combination Aluminum Slip Ring 8 Channel M5 Interface
Gas Electric Combination Aluminum Slip Ring 8 Channel M5 Interface
Gas Electric Combination Aluminum Slip Ring 8 Channel M5 Interface
Gas Electric Combination Aluminum Slip Ring 8 Channel M5 Interface
Gas Electric Combination Aluminum Slip Ring 8 Channel M5 Interface
Gas Electric Combination Aluminum Slip Ring 8 Channel M5 Interface
Specifications
Brand Name :
GuRen
Model Number :
Q8PM5-12PS
Certification :
ISO9001.CE.RoHS
Place of Origin :
china
MOQ :
1
Price :
＄19-199
Payment Terms :
L/C,D/P,T/T
Supply Ability :
1K units/week
Delivery Time :
3 weeks ARO
Packaging Details :
Standard/On Request
Air channel :
8 channel
Interface Specifications :
M5
Applicable trachea :
4-6mm
Circuit :
12-way
Width :
38mm
Length :
95mm
Current :
2A
Description
8-channel gas-electric combination slip ring Aluminum alloy housing M5 interface
Product Attributes
Attribute Value
Air channel 8 channel
Interface Specifications M5
Applicable trachea 4-6mm
Circuit 12-way
Width 38mm
Length 95mm
Current 2A
Product Description

Q8PM5-12PS gas-electric combination slip ring, 8-input 8-output 12-way power, M5 interface, suitable for 4-6mm air pipe, supports 12-way 2A signal transmission. Suitable for synchronous transmission of fluid and power in robot arm joints.

Features of Q8PM5-12PS gas-electric combination slip ring
  • Multi-channel collaborative technology: 8-way gas path independent control, response time 3.8ms (±0.5ms), support nitrogen/chemical gas parallel delivery.
  • Durable material: Aluminum alloy shell is corrosion-resistant and has a long service life.
  • Dynamically balanced bearing: Industrial-grade bearings reduce friction loss and extend service life to 20 million revolutions.
  • Flexible installation: 250mm wire can be customized in length for easy wiring.
  • seal: O-ring seal, good sealing performance.
Q8PM5-12PS gas-electric combination slip ring parameters
Electrical parameters Parameter Value Gas parameters Parameter Value
Dielectric strength 500VCA@50Hz,60s Number of trachea 8 in 8 out
Insulation resistance ≥500MΩ/300VDC Pressure -80KPa-0.8MPa or vacuum
Dynamic resistance change value ＜10mΩ Rotational torque <0.3N.m
Rated voltage 0～440VDC/VAC Rotation speed 250rpm
Wire Specifications AWG28 Teflon wire (depending on the specific current) Shell material Aluminum Alloy
Wire length Default 250mm (Customizable) Temperature -30℃～+80℃
Contact material Precious metal contacts Operating humidity 0～85%RH
Protection level IP51

Q8PM5-12PS gas-electric combination slip ring drawings
Gas Electric Combination Aluminum Slip Ring 8 Channel M5 Interface

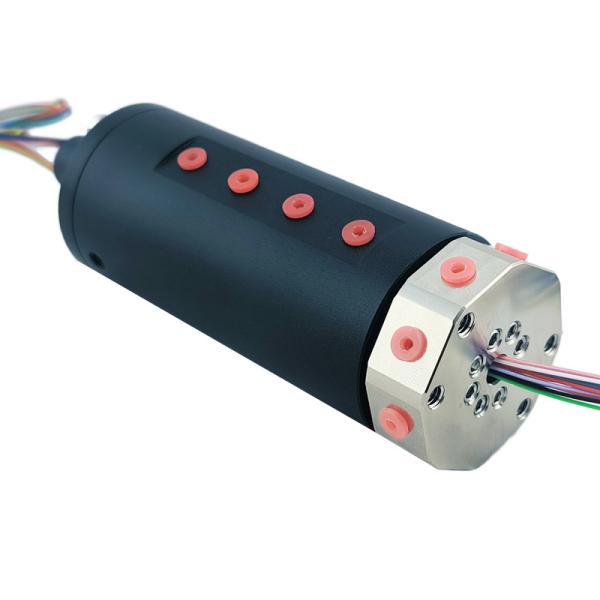

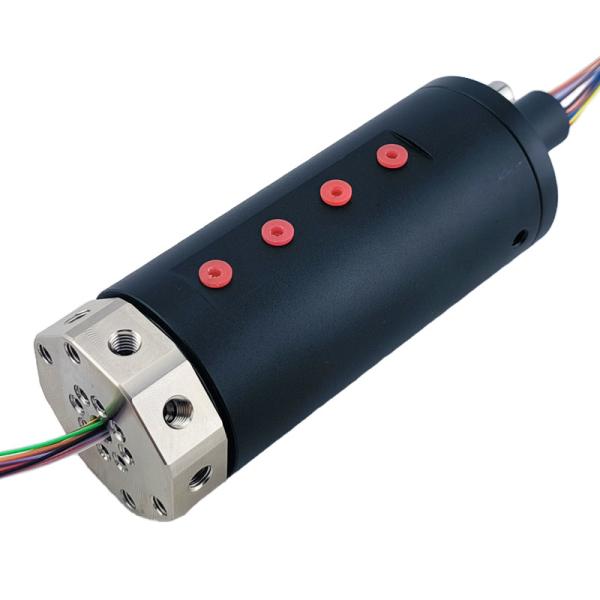

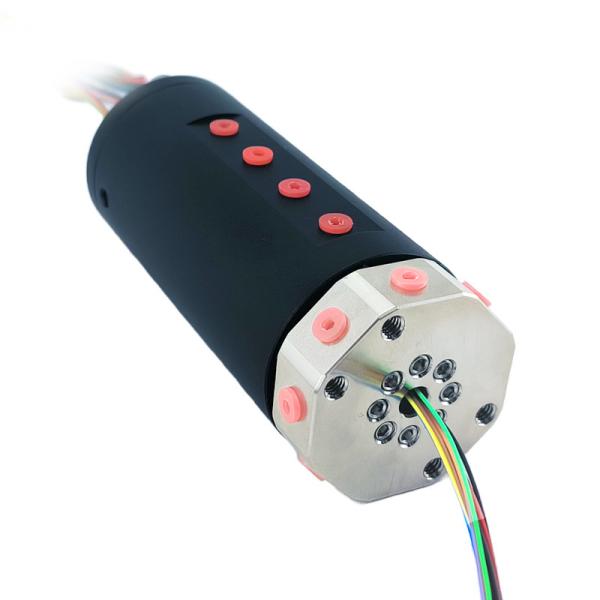

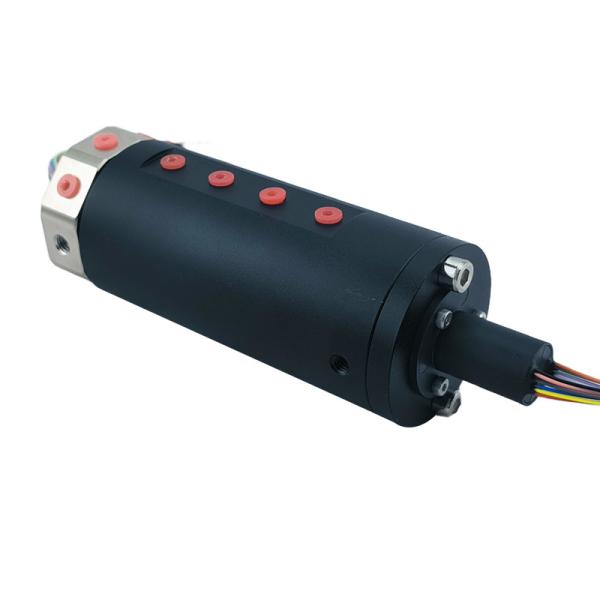

Q8PM5-12PS gas-electric combination slip ring pictures
Gas Electric Combination Aluminum Slip Ring 8 Channel M5 Interface Gas Electric Combination Aluminum Slip Ring 8 Channel M5 Interface
Application scenarios of Q8PM5-12PS gas-electric combination slip ring

Suitable for high-precision fields such as industrial automation, medical equipment, and new energy equipment, it solves the key bottleneck of the collaborative work of pneumatic/hydraulic actuators and electrical control systems on the rotating platform, and realizes the smooth execution of complex movements and the entanglement-free transmission of high-density information (fluid + electricity + signal).
