High Speed Slip Ring 8 Channel Gas Electric Rotary Joint Slip Ring CE Certification
High Speed Slip Ring 8 Channel Gas Electric Rotary Joint Slip Ring CE Certification
High Speed Slip Ring 8 Channel Gas Electric Rotary Joint Slip Ring CE Certification
High Speed Slip Ring 8 Channel Gas Electric Rotary Joint Slip Ring CE Certification
High Speed Slip Ring 8 Channel Gas Electric Rotary Joint Slip Ring CE Certification
High Speed Slip Ring 8 Channel Gas Electric Rotary Joint Slip Ring CE Certification
High Speed Slip Ring 8 Channel Gas Electric Rotary Joint Slip Ring CE Certification
High Speed Slip Ring 8 Channel Gas Electric Rotary Joint Slip Ring CE Certification
Specifications
Brand Name :
GuRen
Model Number :
Q8P01-12PS
Certification :
ISO9001.CE.RoHS
Place of Origin :
china
MOQ :
1
Price :
＄19-199
Payment Terms :
L/C,D/P,T/T
Supply Ability :
1K units/week
Delivery Time :
3 weeks ARO
Packaging Details :
Standard/On Request
Air channel :
8 channel
Interface Specifications :
G1/8"
Applicable trachea :
6-8mm
Width :
56mm
Length :
123.5mm
Protection level :
IP51
Description

Q8P01-12PS high speed 8-channel gas-electric rotary slip ring connector, equipped with G1/8" interface to adapt to 6-8mm air pipe, transmit 12 2A signals. IP51 protection level, suitable for various new energy high-voltage equipment.


Q8P01-12PS high speed 8-channel gas-electric rotary slip ring Features

1. High flow channel: 8 gas channels support 0.8MPa pressure, which meets the requirements of industrial gas transmission.
2. Universal interface: G1/8" threaded hole standardized design, which can be connected to 6-8mm industrial gas pipe.
3. Double protection: IP51 dust and drip proof, insulation test 500VAC to ensure electrical safety.
4. Customized service: support wire specification/length adjustment, shell material replacement.


Q8P01-12PS high speed 8-channel gas-electric rotary slip ring parameters

Electrical parameters

Parameter Value

Gas parameters

Parameter Value

Dielectric strength

500VCA@50Hz,60s

Number of trachea

8 in 8 out

Insulation resistance

≥500MΩ/300VDC

Pressure

-80KPa-0.8MPaor vacuum

Dynamic resistance change value

＜10mΩ

Rotational torque

<0.3N.m

Rated voltage

0～440VDC/VAC

Rotation speed

250rpm

Wire Specifications

AWG28 Teflon wire (depending on the specific current)

Shell material

Aluminum Alloy

Wire length

Default 250mm(Customizable)

Temperature

-30℃～+80℃

Contact material

Precious metal contacts

Operating humidity

0～85%RH

Protection level

IP51



Q8P01-12PS high speed 8-channel gas-electric rotary slip ring drawings

High Speed Slip Ring 8 Channel Gas Electric Rotary Joint Slip Ring CE Certification

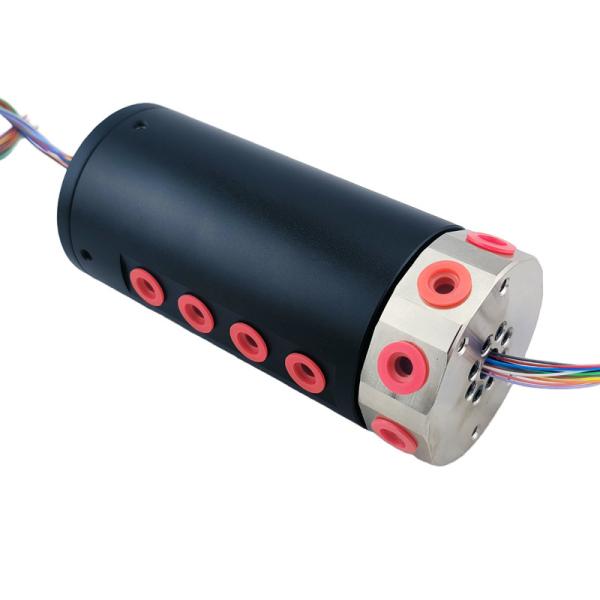

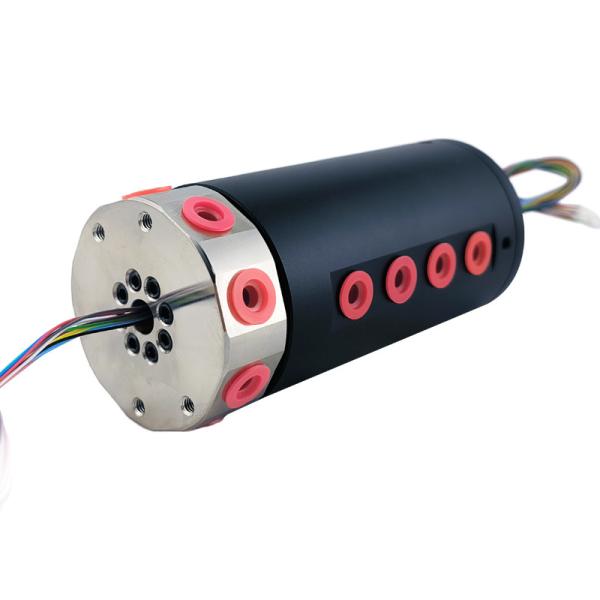

Q8P01-12PS high speed 8-channel gas-electric rotary slip ring pictures

High Speed Slip Ring 8 Channel Gas Electric Rotary Joint Slip Ring CE Certification

High Speed Slip Ring 8 Channel Gas Electric Rotary Joint Slip Ring CE Certification

High Speed Slip Ring 8 Channel Gas Electric Rotary Joint Slip Ring CE Certification


Q8P01-12PS high speed 8-channel gas-electric rotary slip ring Application scenarios

Suitable for high-precision fields such as industrial automation, medical equipment, and new energy equipment, it solves the key bottleneck of the collaborative work of pneumatic/hydraulic actuators and electrical control systems on the rotating platform, and realizes the smooth execution of complex movements and the entanglement-free transmission of high-density information (fluid + electricity + signal).
