Specifications
Brand Name :
GuRen
Model Number :
Q2P03-20P-GRA0332
Certification :
ISO9001.CE.RoHS
Place of Origin :
china
MOQ :
1
Price :
＄19-199
Payment Terms :
L/C,D/P,T/T
Supply Ability :
1K units/week
Delivery Time :
3 weeks ARO
Packaging Details :
Standard/On Request
Air channel :
2 channel
Interface dimensions :
G3/8"
Applicable trachea :
10-12mm
Protection level :
IP51
Outer diameter :
86mm
High :
213.2mm
Description
2-Channel Pneumatic and 20-Channel Electrical Network Combination Slip Ring
This high-end, multi-functional integrated slip ring combines two G3/8" pneumatic channels, ten 10A high-current channels, and one RJ45 Gigabit Ethernet channel. Featuring a black aluminum alloy casing with IP51 protection, it supports 380V industrial voltage and 200 RPM rotation speed, designed for complex equipment requiring simultaneous transmission of pneumatic power, high-power electricity, and high-speed data.
Key Features
  • Three-in-One Integration: Simultaneous transmission of air, power, and Gigabit Ethernet in a single device, simplifying rotating interfaces and improving system reliability
  • Gigabit High-Speed Data: Dedicated RJ45 Gigabit Ethernet channel ensures stable, low-latency communication for industrial cameras, PLCs, and servo drives
  • Powerful Performance: 10 channels of 10A high-current (100A total capacity) and 2 G3/8" pneumatic lines for high-flow applications
  • Industrial Durability: Aluminum alloy casing provides excellent heat dissipation and electromagnetic shielding with IP51 protection for harsh environments
Technical Parameters
Electrical Parameters Gas Parameters
Dielectric strength: 500VCA@50Hz,60s Number of trachea: 2 in 2 out
Insulation resistance: ≥1000MΩ/500VDC Pressure: -99KPa-0.8MPa or vacuum
Dynamic resistance change value: ＜10mΩ Rotational torque: <0.3N.m
Rated voltage: 0～380VDC/VAC Rotation speed: 200rpm
Wire Specifications: Teflon wire (current-dependent) Shell material: Aluminum Alloy
Wire length: Default 300mm (Customizable) Temperature: -30℃～+80℃
Contact material: Precious metal contacts Operating humidity: 0～85%RH
Protection level: IP51

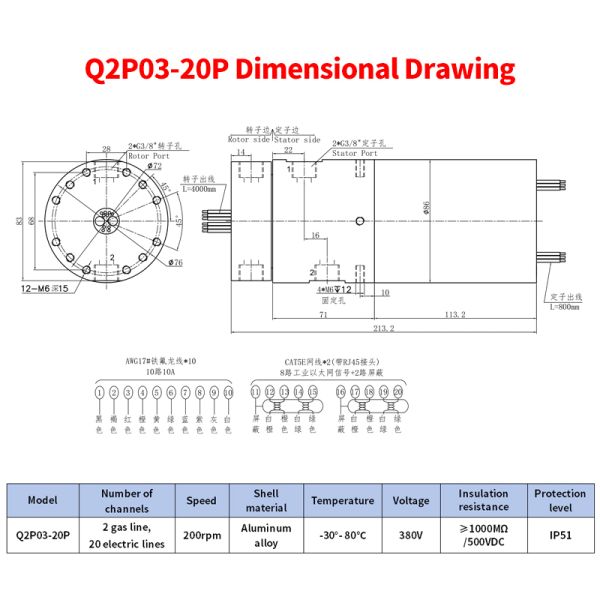

Technical Drawings
2-Channel Pneumatic and 20-Channel Electrical Gigabit Ethernet Combination Slip Ring for Industrial Equipment
Application Scenarios
  • Intelligent welding and cutting robots: Synchronous transmission of shielding gas, welding power, and high-definition vision data
  • High-speed visual inspection equipment: Power for lighting, pneumatic purging, and high-speed image data feedback
  • High-end CNC machining centers: Multi-axis motor power for rotating worktables with remote diagnostic networks
  • Automated assembly and testing lines: Comprehensive energy and information hub for complex multi-station rotating platforms
Frequently Asked Questions
Q1: How is transmission stability guaranteed for the Gigabit Ethernet channels in practical use?
This product utilizes a dedicated shielding structure and high-quality contact materials with independent optimization for Ethernet channels, effectively suppressing interference. We recommend using industrial Category 6 or higher shielded network cables and ensuring proper equipment grounding for optimal transmission performance.
Q2: Can all 10 x 10A channels operate at full load simultaneously for extended periods?
The product design supports full-load operation of all channels. To ensure optimal lifespan and reliability, we recommend considering overall thermal management in practical applications and can provide cooling solution suggestions based on your operating conditions.
Q3: Does it support higher-speed network protocols (such as 10 Gigabit/10G)?
The standard version is optimized for Gigabit Ethernet. For higher-speed requirements such as 10 Gigabit, which demand extremely high signal integrity, a completely different design solution is required. Please contact us for a customized evaluation.
