Single Channel Electric Pneumatic Slip Ring Rotary Joint 20 Million Revolutions Life
Single Channel Electric Pneumatic Slip Ring Rotary Joint 20 Million Revolutions Life
Single Channel Electric Pneumatic Slip Ring Rotary Joint 20 Million Revolutions Life
Single Channel Electric Pneumatic Slip Ring Rotary Joint 20 Million Revolutions Life
Specifications
Brand Name :
GuRen
Model Number :
Q1P02-6P05
Certification :
ISO9001.CE.RoHS
Place of Origin :
china
MOQ :
1
Price :
＄19-199
Payment Terms :
L/C,D/P,T/T
Supply Ability :
1K units/week
Delivery Time :
3 weeks ARO
Packaging Details :
Standard/On Request
Air channel :
1 channel
Interface Specifications :
G1/4”
Applicable trachea :
6-8mm
Circuit :
6-way
Width :
60mm
Length :
46.2mm
Current :
5A/10A
Description

Q1P02-6P05 single-channel pneumatic-electrical integrated rotary joint, single-channel G1/4" caliber, specially designed for high-pressure fluid systems. 6 electrical channels, precious metal contacts ensure stable signal transmission.


Q1P02-6PS single-channel pneumatic-electrical integrated rotary joint Features

1. Large flow optimization: G1/4" interface, supports 300L/min medium delivery.
2. Vacuum sealing technology: metal bellows + fluororubber composite seal, vacuum leakage rate <1×10⁻⁹ Pa·m³/s.
3. Customizable wires: AWG22 Teflon wire defaults to 250mm and can be extended to adapt to complex wiring scenarios.
4. Wide temperature range operation: -30℃~80℃ continuous operation, no performance degradation in polar conditions.


Q1P02-6P05 single-channel pneumatic-electrical integrated rotary joint parameters

Electrical parameters

Parameter Value

Gas parameters

Parameter Value

Dielectric strength

500VCA@50Hz,60s

Number of trachea

1 in 1 out

Insulation resistance

≥500MΩ/300VDC

Pressure

-80KPa-0.8MPaor vacuum

Dynamic resistance change value

＜10mΩ

Rotational torque

<0.3N.m

Rated voltage

0～440VDC/VAC

Rotation speed

250rpm

Wire Specifications

AWG22 Teflon wire (depending on the specific current)

Shell material

Aluminum Alloy

Wire length

Default 250mm(Customizable)

Temperature

-30℃～+80℃

Contact material

Precious metal contacts

Operating humidity

0～85%RH

Protection level

IP51

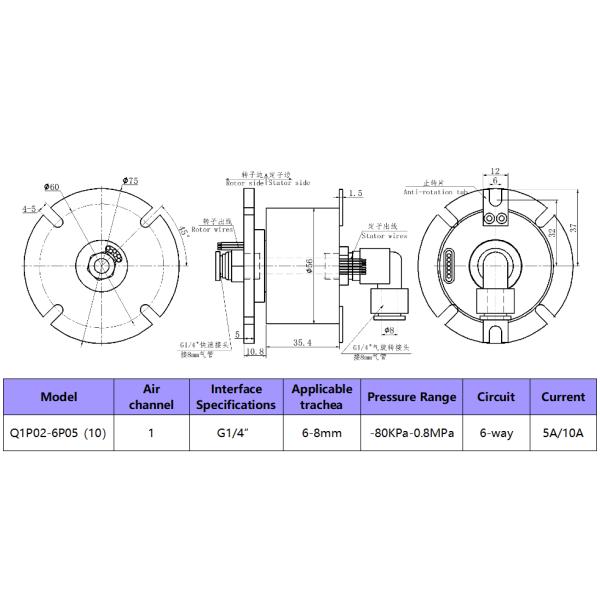

Q1P02-6P05 single-channel pneumatic-electrical integrated rotary joint drawings

Single Channel Electric Pneumatic Slip Ring Rotary Joint 20 Million Revolutions Life


Q1P02-6P05 single-channel pneumatic-electrical integrated rotary joint pictures


Q1P02-6P05 single-channel pneumatic-electrical integrated rotary joint Application scenarios

Suitable for high-precision fields such as industrial automation, medical equipment, and new energy equipment, it solves the key bottleneck of the collaborative work of pneumatic/hydraulic actuators and electrical control systems on the rotating platform, and realizes the smooth execution of complex movements and the entanglement-free transmission of high-density information (fluid + electricity + signal).
