Specifications
Brand Name :
GuRen
Model Number :
Q6P01-12PS
Certification :
ISO9001.CE.RoHS
Place of Origin :
china
MOQ :
1
Price :
＄19-199
Payment Terms :
L/C,D/P,T/T
Supply Ability :
1K units/week
Delivery Time :
3 weeks ARO
Packaging Details :
Standard/On Request
Air channel :
6 channel
Interface Specifications :
G1/8"
Applicable trachea :
6-8mm
Width :
56mm
Length :
105.5mm
Protection level :
IP51
Description

Q6P01-12PS 6-channel pneumatic slip ring, G1/8" interface, IP51 protection, supports 12 signals or more lines. Pressure -80KPa~0.8MPa, dynamic resistance <10mΩ, realizes entanglement-free hybrid transmission.


Q6P01-12PS 6-channel pneumatic slip ring Features

1. Mixed transmission: can pass through a variety of media, compressed air, vacuum, nitrogen, chemical mixed gas, etc.
2. Size optimization: 54mm outer diameter compact structure, saving internal space of the equipment.
3. Interface diversity: supports G1/8"/M5/G3/8" and other interface customization.
4. High sealing structure: O-ring design, no leakage in -80KPa vacuum environment.


Q6P01-12PS 6-channel pneumatic slip ring parameters

Electrical parameters

Parameter Value

Gas parameters

Parameter Value

Dielectric strength

500VCA@50Hz,60s

Number of trachea

6 in 6 out

Insulation resistance

≥500MΩ/300VDC

Pressure

-80KPa-0.8MPaor vacuum

Dynamic resistance change value

＜10mΩ

Rotational torque

<0.3N.m

Rated voltage

0～440VDC/VAC

Rotation speed

250rpm

Wire Specifications

AWG28 Teflon wire (depending on the specific current)

Shell material

Aluminum Alloy

Wire length

Default 250mm(Customizable)

Temperature

-30℃～+80℃

Contact material

Precious metal contacts

Operating humidity

0～85%RH

Protection level

IP51

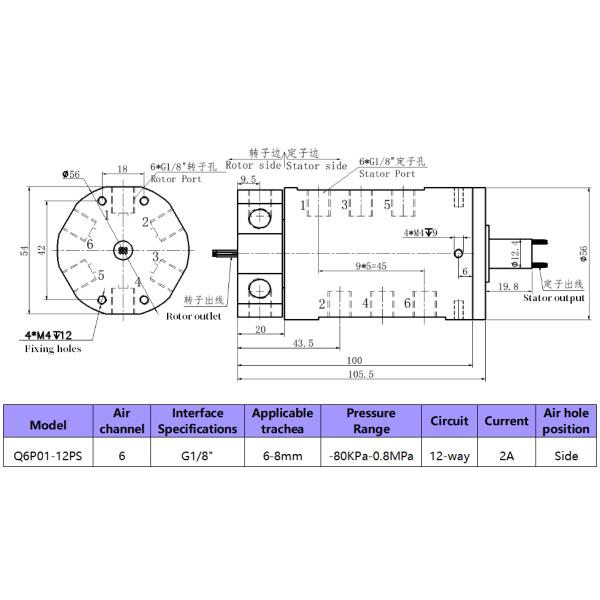

Q6P01-12PS 6-channel pneumatic slip ring drawings


Aluminum Alloy Housing 6 Wire Slip Ring Gas Electric Hybrid Transmission

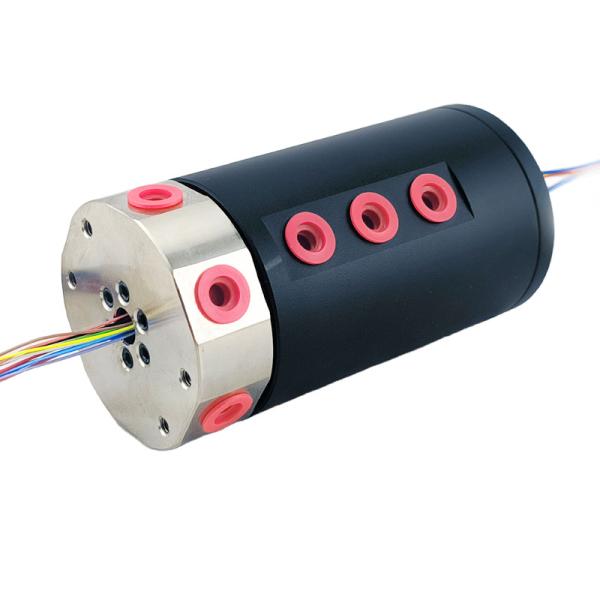

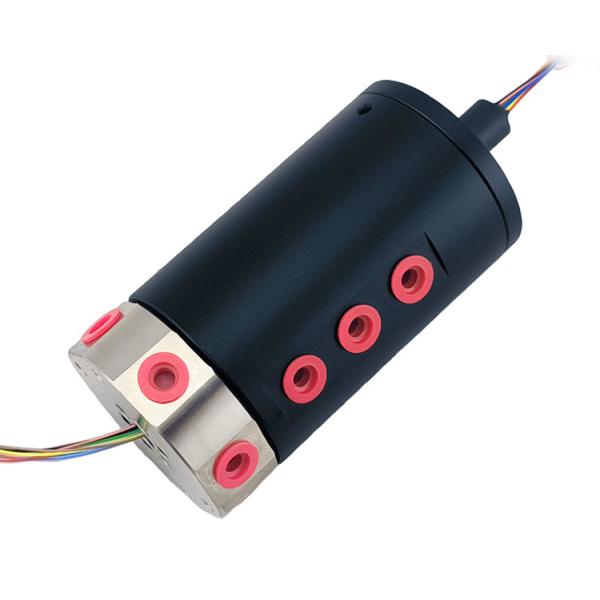

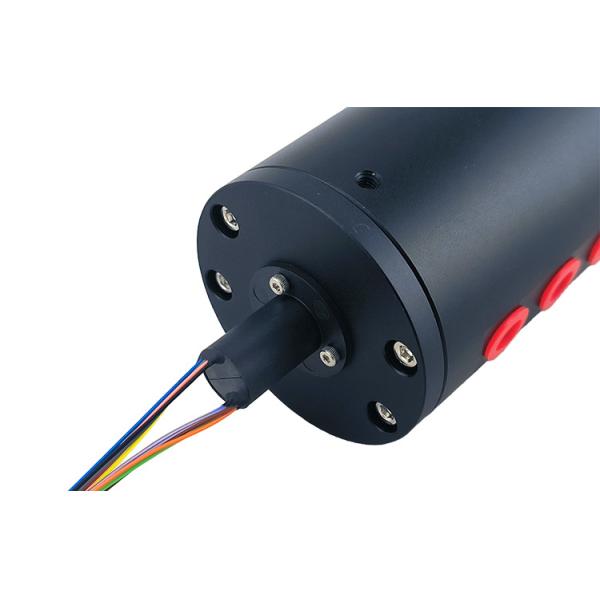

Q6P01-12PS 6-channel pneumatic slip ring pictures

Aluminum Alloy Housing 6 Wire Slip Ring Gas Electric Hybrid Transmission


Aluminum Alloy Housing 6 Wire Slip Ring Gas Electric Hybrid Transmission


Q6P01-12PS 6-channel pneumatic slip ring Application scenarios

Suitable for high-precision fields such as industrial automation, medical equipment, and new energy equipment, it solves the key bottleneck of the collaborative work of pneumatic/hydraulic actuators and electrical control systems on the rotating platform, and realizes the smooth execution of complex movements and the entanglement-free transmission of high-density information (fluid + electricity + signal).
