4 Channel 360 Degree Rotating Slip Ring Gas Electric Combination IP51 Protection
4 Channel 360 Degree Rotating Slip Ring Gas Electric Combination IP51 Protection
4 Channel 360 Degree Rotating Slip Ring Gas Electric Combination IP51 Protection
4 Channel 360 Degree Rotating Slip Ring Gas Electric Combination IP51 Protection
4 Channel 360 Degree Rotating Slip Ring Gas Electric Combination IP51 Protection
4 Channel 360 Degree Rotating Slip Ring Gas Electric Combination IP51 Protection
4 Channel 360 Degree Rotating Slip Ring Gas Electric Combination IP51 Protection
4 Channel 360 Degree Rotating Slip Ring Gas Electric Combination IP51 Protection
Specifications
Brand Name :
GuRen
Model Number :
Q4PM5-12PS
Certification :
ISO9001.CE.RoHS
Place of Origin :
china
MOQ :
1
Price :
＄19-199
Payment Terms :
L/C,D/P,T/T
Supply Ability :
1K units/week
Delivery Time :
3 weeks ARO
Packaging Details :
Standard/On Request
Air channel :
4 channel
Interface Specifications :
M5
Applicable trachea :
4-6mm
Width :
38mm
Length :
67mm
Current :
2A
Description

Q4PM5-12PS 4-channel 360-degree rotating pneumatic-electric combination slip ring, M5 micro interface, transmits 12 2A signals, aluminum alloy housing, supports customization of 6-56 electrical channels.


Q4PM5-12PS 360-degree rotating pneumatic-electric combination slip ring Features

1. Miniaturized interface: M5 thread adapts to precision instruments and reduces the size of the equipment
2. Safety certification: 500VAC@50Hz insulation test for 60s, in line with GMP standards
3. Silent operation: special bearing structure, noise <35dB at 250rpm
4. Supports customization of more circuits.


Q4PM5-12PS 360-degree rotating pneumatic-electric combination slip ring parameters

Electrical parameters

Parameter Value

Gas parameters

Parameter Value

Dielectric strength

500VCA@50Hz,60s

Number of trachea

4 in 4 out

Insulation resistance

≥500MΩ/300VDC

Pressure

-80KPa-0.8MPaor vacuum

Dynamic resistance change value

＜10mΩ

Rotational torque

<0.3N.m

Rated voltage

0～440VDC/VAC

Rotation speed

250rpm

Wire Specifications

AWG28 Teflon wire (depending on the specific current)

Shell material

Aluminum Alloy

Wire length

Default 250mm(Customizable)

Temperature

-30℃～+80℃

Contact material

Precious metal contacts

Operating humidity

0～85%RH

Protection level

IP51



Q4PM5-12PS 360-degree rotating pneumatic-electric combination slip ring drawings


4 Channel 360 Degree Rotating Slip Ring Gas Electric Combination IP51 Protection


4 Channel 360 Degree Rotating Slip Ring Gas Electric Combination IP51 Protection

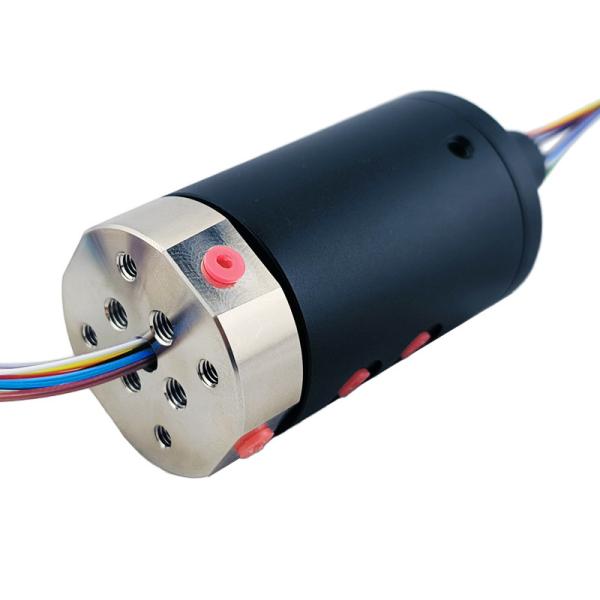

Q4PM5-12PS 360-degree rotating pneumatic-electric combination slip ring pictures

4 Channel 360 Degree Rotating Slip Ring Gas Electric Combination IP51 Protection

4 Channel 360 Degree Rotating Slip Ring Gas Electric Combination IP51 Protection


Q4PM5-12PS 360-degree rotating pneumatic-electric combination slip ring Application scenarios

Suitable for high-precision fields such as industrial automation, medical equipment, and new energy equipment, it solves the key bottleneck of the collaborative work of pneumatic/hydraulic actuators and electrical control systems on the rotating platform, and realizes the smooth execution of complex movements and the entanglement-free transmission of high-density information (fluid + electricity + signal).
