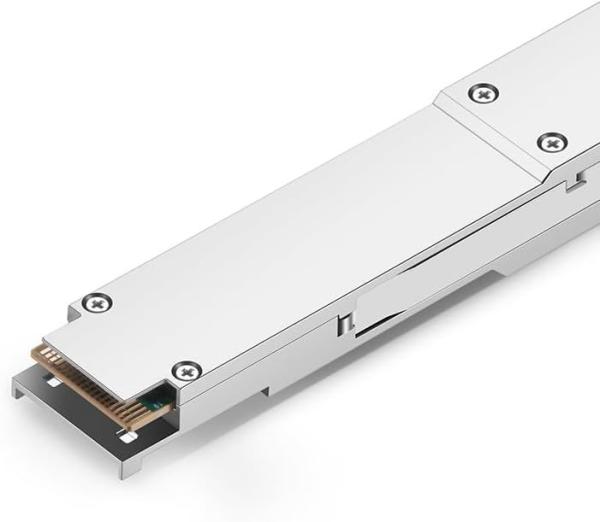

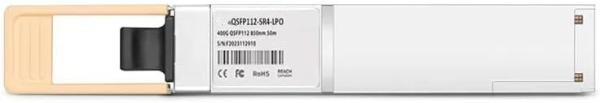

Comelink 400G QSFP112 SR4 LPO Optical Transceiver Module, Compatible with QSFP112 400GBASE-SR4 multimode Optical modules, MPO-12/APC, 850nm 50m
Comelink 400G QSFP112 SR4 LPO Optical Transceiver Module, Compatible with QSFP112 400GBASE-SR4 multimode Optical modules, MPO-12/APC, 850nm 50m
Comelink 400G QSFP112 SR4 LPO Optical Transceiver Module, Compatible with QSFP112 400GBASE-SR4 multimode Optical modules, MPO-12/APC, 850nm 50m
Comelink 400G QSFP112 SR4 LPO Optical Transceiver Module, Compatible with QSFP112 400GBASE-SR4 multimode Optical modules, MPO-12/APC, 850nm 50m
Comelink 400G QSFP112 SR4 LPO Optical Transceiver Module, Compatible with QSFP112 400GBASE-SR4 multimode Optical modules, MPO-12/APC, 850nm 50m
Comelink 400G QSFP112 SR4 LPO Optical Transceiver Module, Compatible with QSFP112 400GBASE-SR4 multimode Optical modules, MPO-12/APC, 850nm 50m
Comelink 400G QSFP112 SR4 LPO Optical Transceiver Module, Compatible with QSFP112 400GBASE-SR4 multimode Optical modules, MPO-12/APC, 850nm 50m
Comelink 400G QSFP112 SR4 LPO Optical Transceiver Module, Compatible with QSFP112 400GBASE-SR4 multimode Optical modules, MPO-12/APC, 850nm 50m
Comelink 400G QSFP112 SR4 LPO Optical Transceiver Module, Compatible with QSFP112 400GBASE-SR4 multimode Optical modules, MPO-12/APC, 850nm 50m
Comelink 400G QSFP112 SR4 LPO Optical Transceiver Module, Compatible with QSFP112 400GBASE-SR4 multimode Optical modules, MPO-12/APC, 850nm 50m
Specifications
Brand Name :
Comelink
Model Number :
400G QSFP112 SR4 LPO
Certification :
ROHS/ISO9001/CE
Place of Origin :
China
MOQ :
1 PC
Price :
USD 800 PCE
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
3-5 workdays
Part Number :
400G QSFP112 SR4 LPO
Form Factor :
Twin-port OSFP
Max Data Rate :
400Gbps
Wavelength :
850nm
Max Distance :
50m
Connector :
MPO-12/APC
Warranty :
3 Years
Package Dimensions :
5.12 x 3.54 x 1.57 inches
Description

400G LPO QSFP112 SR4 PAM4 Optical Transceiver Module (850nm MTP/MPO12 OM3 50m with FEC DDM)

Feature:

  • Built-in Marvell DSP Chip, Max Power Consumption ≤12W.
  • Provide Professional Compatibility and Parameter Test Reports.
  • Compliant with Hot Pluggable QSFP MSA, IEEE 802.3bs Standard.
  • Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
  • DDM(Digital Diagnostic Monitoring) Supported.
  • 30-Day Free Return, 1-Year Free Replacement, 3-Year Warranty, Lifetime After-sales Technical Support.

Quality Assurance

Excellent quality is the foundation of Comelink's survival and development. Our operation team are experts with many years' experience in the optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Specificiation

P/N LQSFP112-400G-SR4 Vendor Name Comelink
Form Factor QSFP112 Max Data Rate 425Gbps
Wavelength 850nm Max Distance 50m on OM3
Modulation Format PAM4 Host Required FEC
Connector MPO-12 (APC) Voltage Supply 3.3V
Cable Type MMF DDM Support Yes
Transmitter Type 850nm VCSEL Receiver Type PIN
TX Power -4.6~+4.0dBm Receiver Sensitivity < -4.6dBm
Operation Temperature 0 to 70°C (32 to 158°F) Maximum Power < 8W
Protocols QSFP112 MSA Compliant, CMIS 5.0 Application 400G Ethernet, Data Center Interconnect, Infiniband Interconnects

Application:

Comelink 400G QSFP112 SR4 LPO Optical Transceiver Module, Compatible with QSFP112 400GBASE-SR4 multimode Optical modules, MPO-12/APC, 850nm 50m

Comprehensive Testing Increases Reliability
Qualified through a rigorous process with advanced equipments to ensure you get the high quality and reliable optics.
Comelink 400G QSFP112 SR4 LPO Optical Transceiver Module, Compatible with QSFP112 400GBASE-SR4 multimode Optical modules, MPO-12/APC, 850nm 50m

Unleash HPC Power with InfiniBand Architecture

We provides the Infiniband network solution, offering significant advantages in terms of high-speed, low latency, scalability, and efficiency.

Comelink 400G QSFP112 SR4 LPO Optical Transceiver Module, Compatible with QSFP112 400GBASE-SR4 multimode Optical modules, MPO-12/APC, 850nm 50m

Flat Top OSFP Connector Shell

The OSFP shell has a flat top and is used in adapters, such as ConnectX-7 InfiniBand Adapter Cards.
