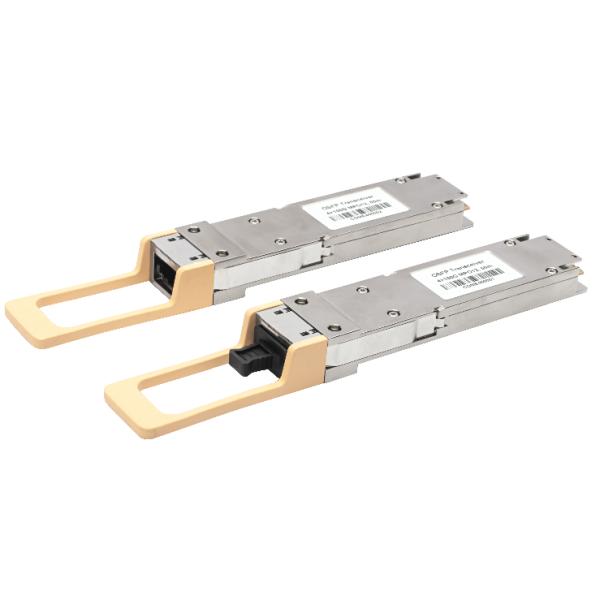

QDD-400G-SR8 Compatible 400GBASE-SR8 QSFP-DD PAM4 850nm 100m DOM MPO-16/APC MMF Optical Transceiver Module
QDD-400G-SR8 Compatible 400GBASE-SR8 QSFP-DD PAM4 850nm 100m DOM MPO-16/APC MMF Optical Transceiver Module
QDD-400G-SR8 Compatible 400GBASE-SR8 QSFP-DD PAM4 850nm 100m DOM MPO-16/APC MMF Optical Transceiver Module
QDD-400G-SR8 Compatible 400GBASE-SR8 QSFP-DD PAM4 850nm 100m DOM MPO-16/APC MMF Optical Transceiver Module
QDD-400G-SR8 Compatible 400GBASE-SR8 QSFP-DD PAM4 850nm 100m DOM MPO-16/APC MMF Optical Transceiver Module
QDD-400G-SR8 Compatible 400GBASE-SR8 QSFP-DD PAM4 850nm 100m DOM MPO-16/APC MMF Optical Transceiver Module
QDD-400G-SR8 Compatible 400GBASE-SR8 QSFP-DD PAM4 850nm 100m DOM MPO-16/APC MMF Optical Transceiver Module
QDD-400G-SR8 Compatible 400GBASE-SR8 QSFP-DD PAM4 850nm 100m DOM MPO-16/APC MMF Optical Transceiver Module
QDD-400G-SR8 Compatible 400GBASE-SR8 QSFP-DD PAM4 850nm 100m DOM MPO-16/APC MMF Optical Transceiver Module
QDD-400G-SR8 Compatible 400GBASE-SR8 QSFP-DD PAM4 850nm 100m DOM MPO-16/APC MMF Optical Transceiver Module
Specifications
Brand Name :
comelink
Model Number :
400G QDD SR8
Certification :
ROHS/ISO9001/CE
Place of Origin :
China
MOQ :
1 PC
Price :
USD 250 PCE
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
3-5 workdays
Part Number :
QDD-SR8-400G
Form Factor :
QSFP-DD
Max Data Rate :
400Gbps
Wavelength :
850nm
Max Cable Distance :
70m@OM3/100m@OM4
Connector :
MPO-16/APC
Power Budget :
1.9dB
Protocols :
QSFP-DD MSA, CMIS 4.0, IEEE 802.3cd
Warranty :
5 Years
Description

400GBASE-SR8 QSFP-DD PAM4 Optical Transceiver Module (MMF, 850nm, 100m, MTP/MPO, DOM)

The 400GBASE-SR8 module, MTP/MPO-16 connector, up to 100m over parallel OM4 multi-mode fiber. It is compliant to IEEE 802.3bs protocol and 400GAUI-8/CEI-56G-VSR-PAM4 standard.
The 400 Gigabit Ethernet signal is carried over eight wavelengths. And it can Support 2× 200G-SR4 and 8× 50G-SR.

Feature:

Built-in Macom Chip, Max. Power Consumption 4.5W
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
Hot Pluggable QSFP-DD Form Factor
High-speed Electrical Compliant to IEEE 802.3bs
Compliant with QSFP-DD MSA CMIS V4.0
Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
Class 1 FDA Laser Safety

Specificiation:

Form Factor
QSFP56
Wavelength
850nm
Connector
MTP / MPO-12 UPC
Fiber
Multi Mode Fiber SR4
Power Supply
3.3V
Protocols
IEEE 802.3bs , QSFP56 MSA , SFF-8665
Data Rate
400Gbps

Application:

* InfiniBand NDR
* 400G SR4 applications with FEC
* 4x 100GbE breakout applications

QDD-400G-SR8 Compatible 400GBASE-SR8 QSFP-DD PAM4 850nm 100m DOM MPO-16/APC MMF Optical Transceiver Module

Comprehensive Testing Increases Reliability
Qualified through a rigorous process with advanced equipments to ensure you get the high quality and reliable optics.
QDD-400G-SR8 Compatible 400GBASE-SR8 QSFP-DD PAM4 850nm 100m DOM MPO-16/APC MMF Optical Transceiver Module

Unleash HPC Power with InfiniBand Architecture

We provides the Infiniband network solution, offering significant advantages in terms of high-speed, low latency, scalability, and efficiency.

QDD-400G-SR8 Compatible 400GBASE-SR8 QSFP-DD PAM4 850nm 100m DOM MPO-16/APC MMF Optical Transceiver Module

Flat Top OSFP Connector Shell

The OSFP shell has a flat top and is used in adapters, such as ConnectX-7 InfiniBand Adapter Cards.
