Compatible Type2 Flat Top 800G OSFP LPO 8x100G SR8 850nm 100M MMF MPO-16 Optical Transceiver
Compatible Type2 Flat Top 800G OSFP LPO 8x100G SR8 850nm 100M MMF MPO-16 Optical Transceiver
Compatible Type2 Flat Top 800G OSFP LPO 8x100G SR8 850nm 100M MMF MPO-16 Optical Transceiver
Compatible Type2 Flat Top 800G OSFP LPO 8x100G SR8 850nm 100M MMF MPO-16 Optical Transceiver
Compatible Type2 Flat Top 800G OSFP LPO 8x100G SR8 850nm 100M MMF MPO-16 Optical Transceiver
Compatible Type2 Flat Top 800G OSFP LPO 8x100G SR8 850nm 100M MMF MPO-16 Optical Transceiver
Compatible Type2 Flat Top 800G OSFP LPO 8x100G SR8 850nm 100M MMF MPO-16 Optical Transceiver
Compatible Type2 Flat Top 800G OSFP LPO 8x100G SR8 850nm 100M MMF MPO-16 Optical Transceiver
Compatible Type2 Flat Top 800G OSFP LPO 8x100G SR8 850nm 100M MMF MPO-16 Optical Transceiver
Compatible Type2 Flat Top 800G OSFP LPO 8x100G SR8 850nm 100M MMF MPO-16 Optical Transceiver
Compatible Type2 Flat Top 800G OSFP LPO 8x100G SR8 850nm 100M MMF MPO-16 Optical Transceiver
Compatible Type2 Flat Top 800G OSFP LPO 8x100G SR8 850nm 100M MMF MPO-16 Optical Transceiver
Specifications
Brand Name :
ComeLink
Model Number :
800G OSFP
Place of Origin :
China
MOQ :
1 PC
Price :
$350
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000
Delivery Time :
3-5 workdays
Use :
Datacenter
Form Factor :
Twin-port OSFP Finned Top
Data Rate :
850Gbps
Media :
MMF
Receiver Type :
PIN
Power Budget :
2.8dB
Temperature Range :
0 to 70°C
DDM/DOM :
Surpported
Description

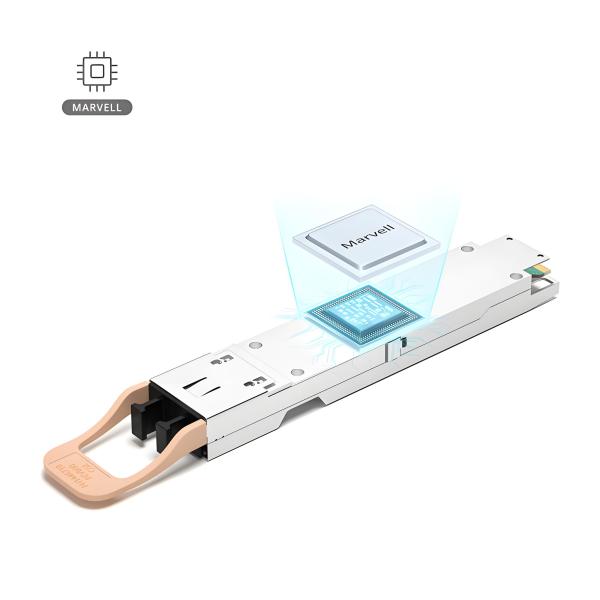

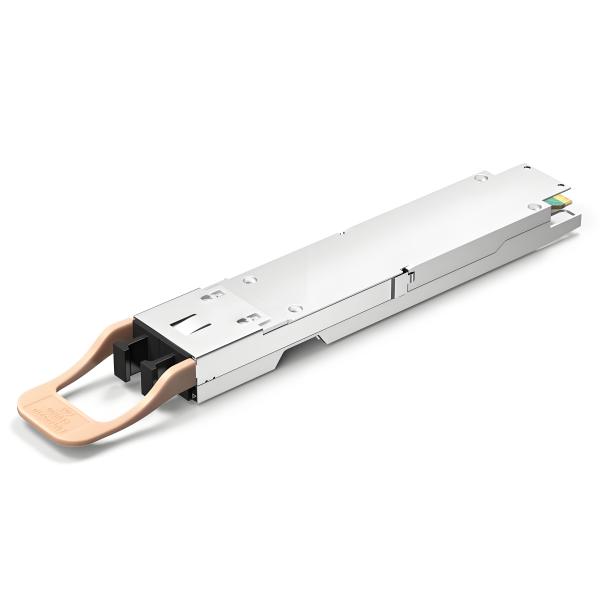

800G LPO OSFP Transceiver

Unleash unparalleled connectivity with LSP-800M885-1HCM 800G LPO OSFP SR8, driven by Linear-Drive Technology. This innovative solution redefines short-range, high-bandwidth, and low-latency applications. With power consumption under 4W, substantial cost savings, and streamlined maintenance, it stands as a beacon of efficiency. Bid farewell to DSP complexities and embrace a new era of seamless, high performance data communication. Elevate your network with the reliability and precision of the 800G LPO OSFP.

Compatible Type2 Flat Top 800G OSFP LPO 8x100G SR8 850nm 100M MMF MPO-16 Optical Transceiver

Feature

* Hot-pluggable OSFP 800G SR8 multimode transceiver

* Compliant with OSFP MSA Type2 flat top
* Compliant with CMIS Rev 4.0 orabove revision
* Integrated 850nm VCSEL array and PD array w/o DSP or CDR

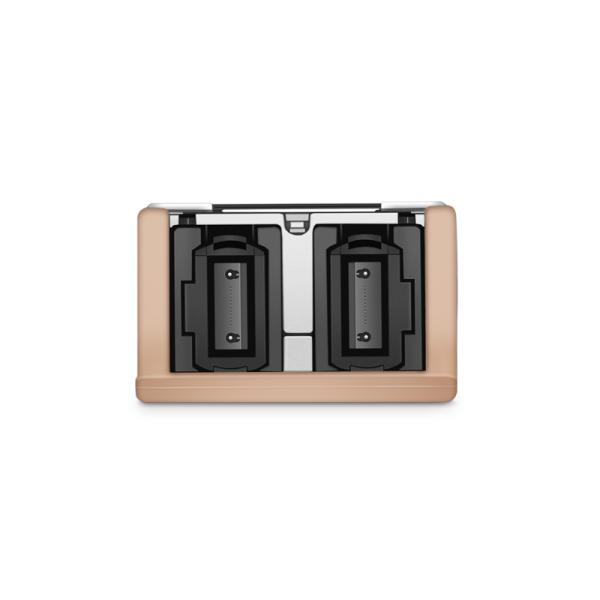

* MPO-16APC receptacles
* Maximum power consumption4W
* Single 3.3V power supply
* Case operating temperature 0°C to 70°C
* Compliant to RoHS
* Class 1 laser
Compatible Type2 Flat Top 800G OSFP LPO 8x100G SR8 850nm 100M MMF MPO-16 Optical Transceiver
Specification
Compatible Type2 Flat Top 800G OSFP LPO 8x100G SR8 850nm 100M MMF MPO-16 Optical Transceiver
Part Number
OL-100-O-SR8
Vendor Name
KEXINT
Form Factor
OSFP Finned Top
Max Data Rate
850Gbps (8x 106.25Gbps)
Wavelength
850nm
Max Cable Distance
100M
Connector
MPO-16 APC
Media
MMF
Transmitter Type
VCSEL
Receiver Type
PD
Power Consumption
≤16W
Extinction Ratio
＞2.5dB
DDM/DOM
Supported
Commercial Temperature Range
0 to 70°C (32 to 158°F)
Modulation (Electrical)
8x106.25Gb/s
Power Supply Voltage
3.3V
CDR (Clock and Data Recovery)
TX & RX Built-in CDR
Inbuilt FEC
Yes
