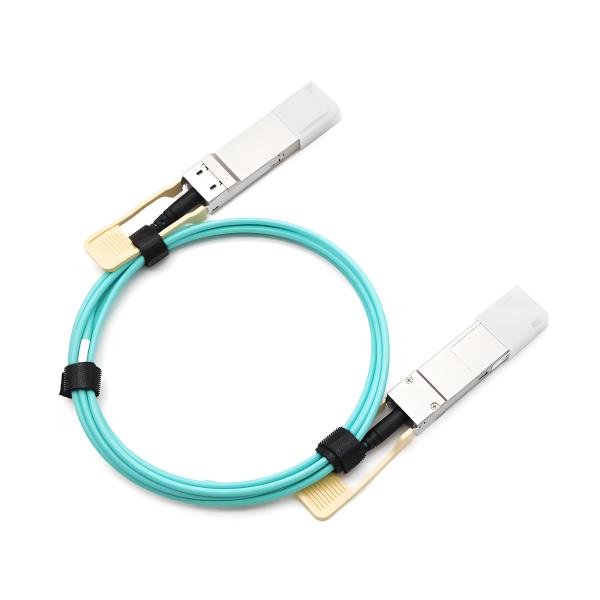

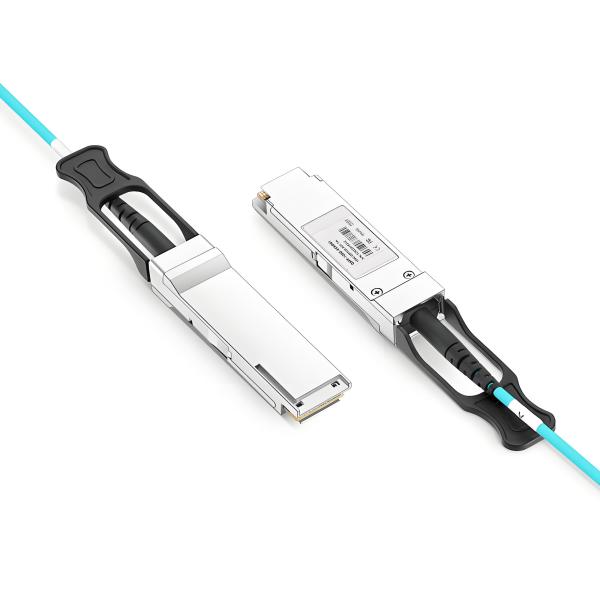

MM 100G QSFP28 100G AOC Cisco Compatible QSFP MMF AOC Active Optical Cable
MM 100G QSFP28 100G AOC Cisco Compatible QSFP MMF AOC Active Optical Cable
MM 100G QSFP28 100G AOC Cisco Compatible QSFP MMF AOC Active Optical Cable
MM 100G QSFP28 100G AOC Cisco Compatible QSFP MMF AOC Active Optical Cable
MM 100G QSFP28 100G AOC Cisco Compatible QSFP MMF AOC Active Optical Cable
MM 100G QSFP28 100G AOC Cisco Compatible QSFP MMF AOC Active Optical Cable
MM 100G QSFP28 100G AOC Cisco Compatible QSFP MMF AOC Active Optical Cable
MM 100G QSFP28 100G AOC Cisco Compatible QSFP MMF AOC Active Optical Cable
MM 100G QSFP28 100G AOC Cisco Compatible QSFP MMF AOC Active Optical Cable
MM 100G QSFP28 100G AOC Cisco Compatible QSFP MMF AOC Active Optical Cable
Specifications
Brand Name :
ComeLink
Model Number :
QSFP28-100G-AOC
Place of Origin :
China
MOQ :
1 PC
Price :
$100
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000
Delivery Time :
3-5 workdays
Use :
Datacenter
Form Factor :
Twin-port OSFP Finned Top
Media :
Copper
Cable Type :
MMF
Cable Length :
1~100m
Commercial Temperature Range :
0 to 70°C (32 to 158°F)
Supply Voltage: :
-0.3~3.6 (V)
Description

The Realsea QSFP-A100G Active Optical Cables (AOCs) are a high performance, low power consumption, long reachinterconnect solution supporting InfiniBand QDR/DDR/SDR, It is compliant with the QSFP28 MSA and IEEE P802.3bm. QSFP28 AOC is an assembly of 4 full-duplex lanes, where each lane iscapable of transmitting data at rates up to 25.78Gb/s, providing an aggregated rate of 103.12Gb/s.

Active Optical Cables can be used as an alternative solution to QSFP28 passive copper cables, while providing improved signal integrity, longer distances, superior electromagnetic immunity and better bit error rate performance.
Rigorous Optical Cables production testing ensures best out-of-the-box installation experience, performance and durability.

MM 100G QSFP28 100G AOC Cisco Compatible QSFP MMF AOC Active Optical Cable

Feature

– Hot-pluggable QSFP28 form factor

– 4 channel full-duplex transceiver modules
– 4 channels 850nm VCSEL array
– 40G 850nm VCSEL transmitter
– Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF
– I2C standard management interface
– Operating case temperature :0-70°C
– 3.3V power supply voltage
– RoHS-6 compliant
– Low power consumption<3.5W
– Compliant with QSFP28 MSA
– Electrical interface compliant to SFF-8665
MM 100G QSFP28 100G AOC Cisco Compatible QSFP MMF AOC Active Optical Cable

Specification
item
value
Model Number
100G QSFP+
Type
Active Optical Cable
Place of Origin
Guangdong, China
Brand Name
Comelink

Use
Data Center
Warranty Time
5 Years
Storage Temperature
-20~+85 C
Operating Temperature
0-+70 C
Cable Type
OM2/OM3/OM4
Supply Voltage
-0.3~3.6 V
Length
1~100m
Certification
CE/ROHS/ISO9001

MM 100G QSFP28 100G AOC Cisco Compatible QSFP MMF AOC Active Optical Cable
