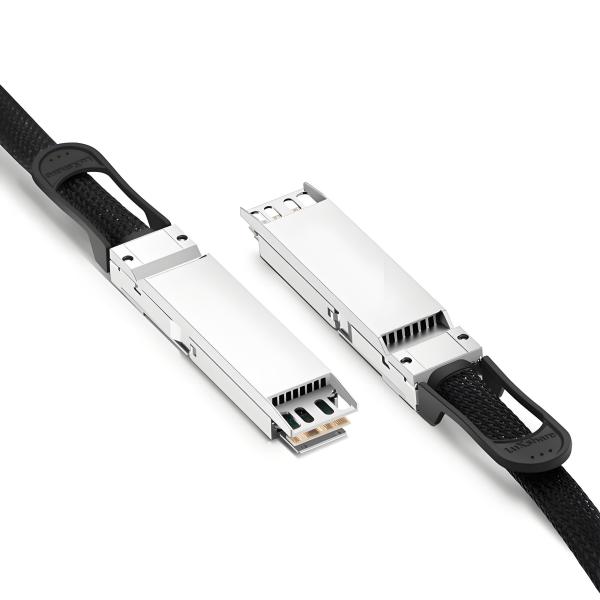

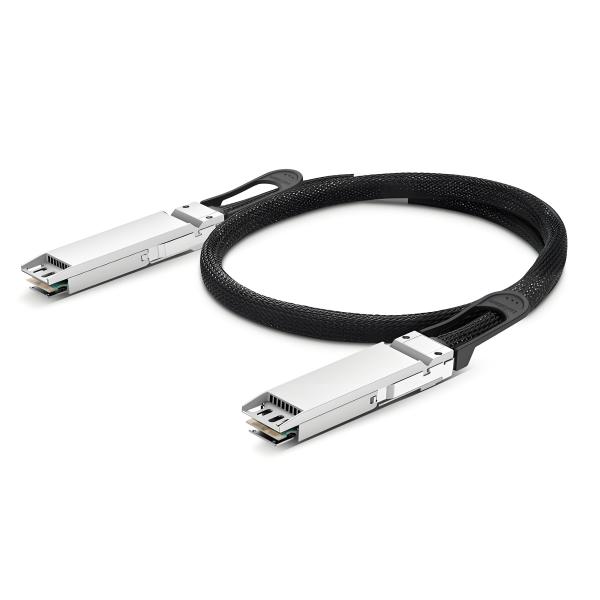

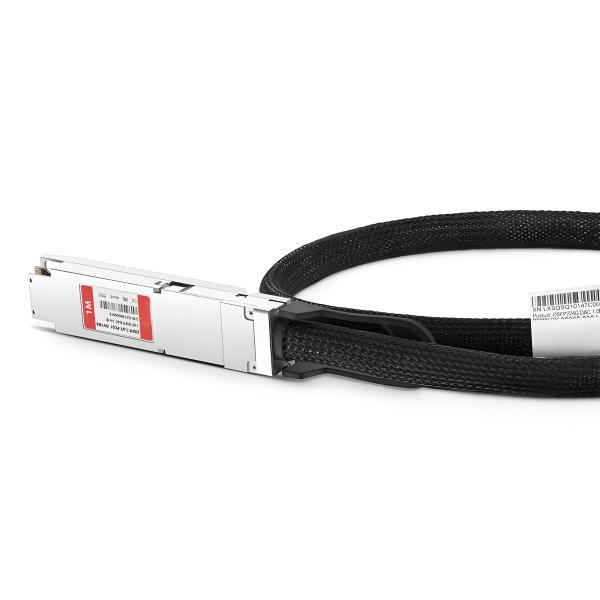

Compatible Twin-port 1.6T 2x800Gb/s OSFP Close Top InfiniBand XDR Passive Direct Attach Active Copper Twinax Cable
Compatible Twin-port 1.6T 2x800Gb/s OSFP Close Top InfiniBand XDR Passive Direct Attach Active Copper Twinax Cable
Compatible Twin-port 1.6T 2x800Gb/s OSFP Close Top InfiniBand XDR Passive Direct Attach Active Copper Twinax Cable
Compatible Twin-port 1.6T 2x800Gb/s OSFP Close Top InfiniBand XDR Passive Direct Attach Active Copper Twinax Cable
Compatible Twin-port 1.6T 2x800Gb/s OSFP Close Top InfiniBand XDR Passive Direct Attach Active Copper Twinax Cable
Compatible Twin-port 1.6T 2x800Gb/s OSFP Close Top InfiniBand XDR Passive Direct Attach Active Copper Twinax Cable
Compatible Twin-port 1.6T 2x800Gb/s OSFP Close Top InfiniBand XDR Passive Direct Attach Active Copper Twinax Cable
Compatible Twin-port 1.6T 2x800Gb/s OSFP Close Top InfiniBand XDR Passive Direct Attach Active Copper Twinax Cable
Specifications
Brand Name :
ComeLink
Model Number :
1.6T OSFP cable
Place of Origin :
China
MOQ :
1 PC
Price :
$500
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000
Delivery Time :
3-5 workdays
Use :
Datacenter
Form Factor :
Twin-port OSFP Finned Top
Media :
Copper
Cable Type :
Passive Twinax
Cable Length :
1m (3ft)
Commercial Temperature Range :
0 to 70°C (32 to 158°F)
Description

Compatible 1.6T OSFP Close Top InfiniBand XDR Passive DAC Twinax Cable (1-meter, Passive, OSFP to OSFP)

Octal small form-factor pluggable 1.6T DAC offers industry standard operations at 1600 Gbps complying with IEEE 802.3 Built for 224 Gbps-PAM4, these robust cables offer superior mechanical durability and excellent shielding to minimize crosstalk and deliver better signal integrity (SI) performance at a higher Nyquist frequency.The OSFP specification is designed to support high density applications, and is well suited for High-Performance Computing (HPC) and machine learning (ML) architectures.

High Bandwidth, Low Power and Closed-Top Design

1.6T direct-attached copper cables provide up to 1600Gbps aggregate throughput and can be applied in liquid cooling environments.Integrated with a heat sink and airflow channels, enhancing the cooling efficiency of the device and protecting internal components.

Compatible Twin-port 1.6T 2x800Gb/s OSFP Close Top InfiniBand XDR Passive Direct Attach Active Copper Twinax Cable

Highlights:

Qualified for InfiniBand XDR End-to-end Systems
Max. Power Consumption 0.1W
Up to 1600Gbps Aggregate Throughput, Compliant to IEEE 802.3
8x 200G-PAM4 to 8x 200G-PAM4
Assembled with Industry Leading Twinax 16-pair Bulk Cable
Great SI Reliability and Physical Performance, with Softer and Better Bending Capability
Offer Superior Mechanical Durability and Excellent Shielding to Minimize Crosstalk
Hot Pluggable OSFP MSA Compliant
For High-Performance Computing (HPC) and Machine Learning (ML) Architectures

Specification
Part Number
MMS4X00-NS-FLT
Vendor Name
KEXINT
Form Factor
OSFP (Close Top) to OSFP (Close Top)
Max Data Rate
1600Gbps
Media
Copper
Cable Type
Passive Twinax
Cable Length
1m (3ft)
Wire AWG
27AWG
Minimum Bend Radius
60mm
Power Consumption
≤0.1W
Jacket Material
PET
Commercial Temperature Range
0 to 70°C (32 to 158°F)
Protocols
IEEE 802.3, OSFP MSA
Modulation Format
PAM4
