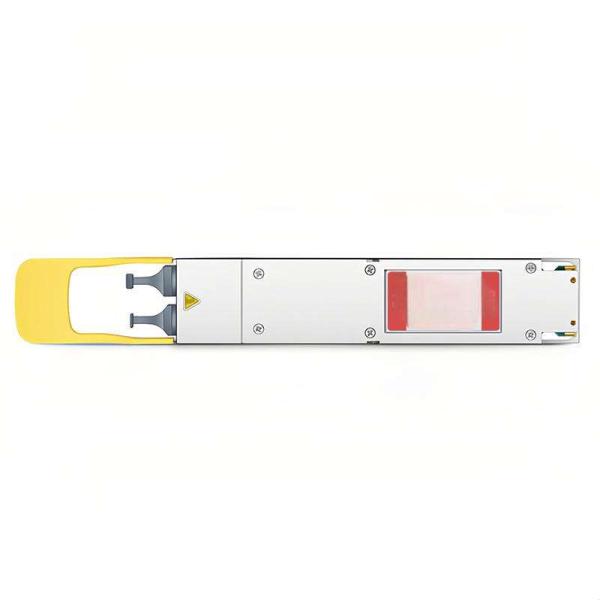

MMS4X00-NM Compatible 800GBASE-DR8 OSFP Ethernet Optical Transceiver Module 1310nm, 500m, Dual MTP/MPO-12
MMS4X00-NM Compatible 800GBASE-DR8 OSFP Ethernet Optical Transceiver Module 1310nm, 500m, Dual MTP/MPO-12
MMS4X00-NM Compatible 800GBASE-DR8 OSFP Ethernet Optical Transceiver Module 1310nm, 500m, Dual MTP/MPO-12
MMS4X00-NM Compatible 800GBASE-DR8 OSFP Ethernet Optical Transceiver Module 1310nm, 500m, Dual MTP/MPO-12
MMS4X00-NM Compatible 800GBASE-DR8 OSFP Ethernet Optical Transceiver Module 1310nm, 500m, Dual MTP/MPO-12
MMS4X00-NM Compatible 800GBASE-DR8 OSFP Ethernet Optical Transceiver Module 1310nm, 500m, Dual MTP/MPO-12
MMS4X00-NM Compatible 800GBASE-DR8 OSFP Ethernet Optical Transceiver Module 1310nm, 500m, Dual MTP/MPO-12
MMS4X00-NM Compatible 800GBASE-DR8 OSFP Ethernet Optical Transceiver Module 1310nm, 500m, Dual MTP/MPO-12
MMS4X00-NM Compatible 800GBASE-DR8 OSFP Ethernet Optical Transceiver Module 1310nm, 500m, Dual MTP/MPO-12
MMS4X00-NM Compatible 800GBASE-DR8 OSFP Ethernet Optical Transceiver Module 1310nm, 500m, Dual MTP/MPO-12
MMS4X00-NM Compatible 800GBASE-DR8 OSFP Ethernet Optical Transceiver Module 1310nm, 500m, Dual MTP/MPO-12
MMS4X00-NM Compatible 800GBASE-DR8 OSFP Ethernet Optical Transceiver Module 1310nm, 500m, Dual MTP/MPO-12
Specifications
Brand Name :
comelink
Model Number :
800G-DR4 OSFP
Certification :
ROHS/ISO9001/CE
Place of Origin :
China
MOQ :
1 PC
Price :
USD 450 PCE
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
3-5 workdays
Form Factor :
Single-port OSFP Flat Top
Wavelength :
850nm
Connector :
MPO-12/APC
Receiver Type :
PIN
Description

The 800GBASE-DR8 OSFP transceiver supports up to 500m link lengths over single-mode fiber (SMF) via dual MTP/MPO-12 connectors.This transceiver is compliant with IEE802.3ck, IEEE 802.3cu and OSFP MSA standards.

The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. It is suitable for 800G Ethernet, Breakout 2x 400G DR4 or 8x 100G DR, Data Center and Cloud Networks.

Feature:

Connect New 800G Sites to Legacy 400G Sites via 2x400G Breakout

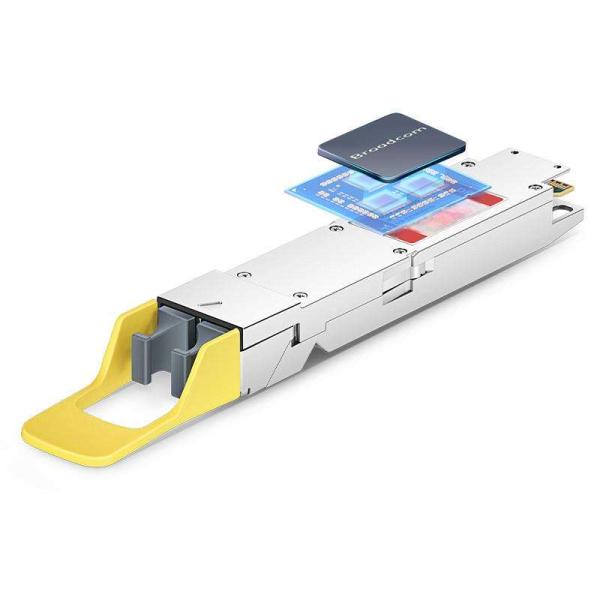

Built-in Broadcom 7nm DSP Chip, Max. Power Consumption 16.5W
Self-developed 53G EML Laser Chip to Ensure Production
Parameter Tests for Superior Performance, Quality, and Reliability
High-speed Connectivity Compliant to IEEE 802.3ck and IEEE 802.3cu-2021
Hot Pluggable OSFP MSA Compliant
Support 2x400G or 8x100G Breakout for Higher Port Density
8x106.25G PAM4 Retimed 800GAUI-8 Electrical Interface

Specificiation:

NVIDIA Ethernet Compatible
MMS4X00-NM
Vendor Name

Comelink
Form Factor
OSFP Finned Top
Max Data Rate
850Gbps (8x 106.25Gbps)
Wavelength
1310nm
Max Cable Distance
500m
Connector
Dual MTP/MPO-12 APC
Media
SMF
Transmitter Type
EML
Receiver Type
PIN
TX Power
-2.9~4.0dBm
Minimum Receiver Power
-5.9dBm
Power budget
3dB
Receiver Overload
5dBm
Power Consumption
≤16W
Extinction Ratio
>3.5dB
DDM/DOM
Supported
Modulation (Optical)
Two ports 4x106.25Gb/s PAM4
Modulation (Electrical)
8x106.25Gb/s PAM4
Modulation Format
PAM4
CDR (Clock and Data Recovery)
TX & RX Built-in CDR
Inbuilt FEC
no
Protocols
IEE802.3ck, IEEE 802.3cu, OSFP MSA
Warranty
3 Years

Application:

* InfiniBand NDR
* 800G DR4 applications with FEC
* 4x 400GbE breakout applications

MMS4X00-NM Compatible 800GBASE-DR8 OSFP Ethernet Optical Transceiver Module 1310nm, 500m, Dual MTP/MPO-12

Unleash HPC Power with InfiniBand Architecture

We provides the Infiniband network solution, offering significant advantages in terms of high-speed, low latency, scalability, and efficiency.

MMS4X00-NM Compatible 800GBASE-DR8 OSFP Ethernet Optical Transceiver Module 1310nm, 500m, Dual MTP/MPO-12

Flat Top OSFP Connector Shell

The OSFP shell has a flat top and is used in adapters, such as ConnectX-7 InfiniBand Adapter Cards.
