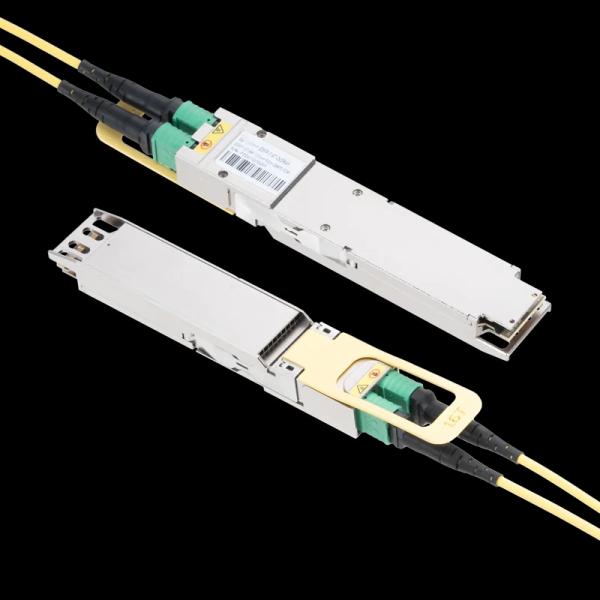

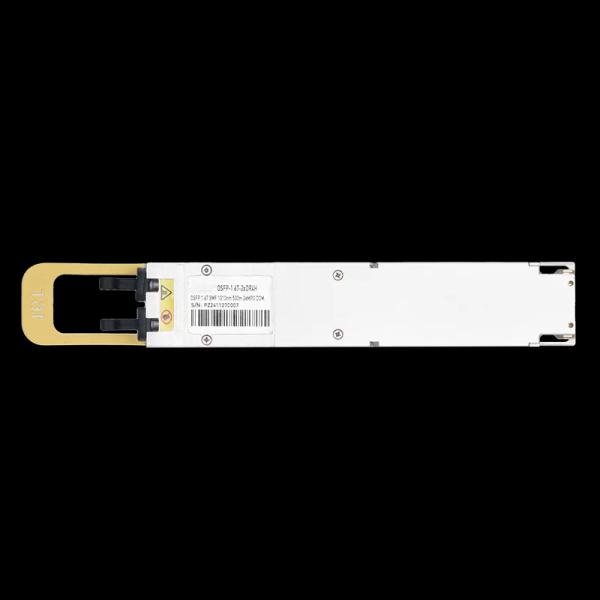

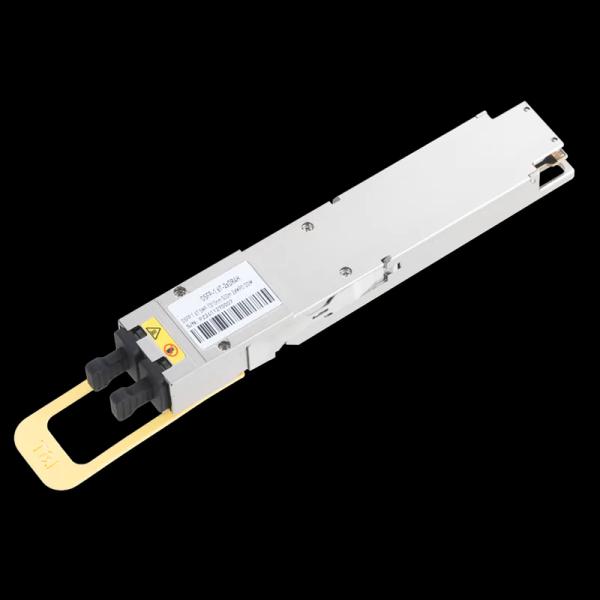

NVIDIA/Mellanox MMS4A00-XM Compatible 1.6T 2xDR4/DR8 OSFP224 PAM4 3nm/5nm DSP 1310nm 500m DOM Dual MPO-12/APC InfiniBand XDR Silicon Photonics Transceiver Module for SMF (IHS/Finned Top)
NVIDIA/Mellanox MMS4A00-XM Compatible 1.6T 2xDR4/DR8 OSFP224 PAM4 3nm/5nm DSP 1310nm 500m DOM Dual MPO-12/APC InfiniBand XDR Silicon Photonics Transceiver Module for SMF (IHS/Finned Top)
NVIDIA/Mellanox MMS4A00-XM Compatible 1.6T 2xDR4/DR8 OSFP224 PAM4 3nm/5nm DSP 1310nm 500m DOM Dual MPO-12/APC InfiniBand XDR Silicon Photonics Transceiver Module for SMF (IHS/Finned Top)
NVIDIA/Mellanox MMS4A00-XM Compatible 1.6T 2xDR4/DR8 OSFP224 PAM4 3nm/5nm DSP 1310nm 500m DOM Dual MPO-12/APC InfiniBand XDR Silicon Photonics Transceiver Module for SMF (IHS/Finned Top)
NVIDIA/Mellanox MMS4A00-XM Compatible 1.6T 2xDR4/DR8 OSFP224 PAM4 3nm/5nm DSP 1310nm 500m DOM Dual MPO-12/APC InfiniBand XDR Silicon Photonics Transceiver Module for SMF (IHS/Finned Top)
NVIDIA/Mellanox MMS4A00-XM Compatible 1.6T 2xDR4/DR8 OSFP224 PAM4 3nm/5nm DSP 1310nm 500m DOM Dual MPO-12/APC InfiniBand XDR Silicon Photonics Transceiver Module for SMF (IHS/Finned Top)
NVIDIA/Mellanox MMS4A00-XM Compatible 1.6T 2xDR4/DR8 OSFP224 PAM4 3nm/5nm DSP 1310nm 500m DOM Dual MPO-12/APC InfiniBand XDR Silicon Photonics Transceiver Module for SMF (IHS/Finned Top)
NVIDIA/Mellanox MMS4A00-XM Compatible 1.6T 2xDR4/DR8 OSFP224 PAM4 3nm/5nm DSP 1310nm 500m DOM Dual MPO-12/APC InfiniBand XDR Silicon Photonics Transceiver Module for SMF (IHS/Finned Top)
NVIDIA/Mellanox MMS4A00-XM Compatible 1.6T 2xDR4/DR8 OSFP224 PAM4 3nm/5nm DSP 1310nm 500m DOM Dual MPO-12/APC InfiniBand XDR Silicon Photonics Transceiver Module for SMF (IHS/Finned Top)
NVIDIA/Mellanox MMS4A00-XM Compatible 1.6T 2xDR4/DR8 OSFP224 PAM4 3nm/5nm DSP 1310nm 500m DOM Dual MPO-12/APC InfiniBand XDR Silicon Photonics Transceiver Module for SMF (IHS/Finned Top)
NVIDIA/Mellanox MMS4A00-XM Compatible 1.6T 2xDR4/DR8 OSFP224 PAM4 3nm/5nm DSP 1310nm 500m DOM Dual MPO-12/APC InfiniBand XDR Silicon Photonics Transceiver Module for SMF (IHS/Finned Top)
NVIDIA/Mellanox MMS4A00-XM Compatible 1.6T 2xDR4/DR8 OSFP224 PAM4 3nm/5nm DSP 1310nm 500m DOM Dual MPO-12/APC InfiniBand XDR Silicon Photonics Transceiver Module for SMF (IHS/Finned Top)
Specifications
Brand Name :
Comelink
Model Number :
1.6T 2xDR4/DR8 OSFP224
Certification :
ROHS/ISO9001/CE
Place of Origin :
China
MOQ :
1 PC
Price :
USD 1999.0 PCE
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
3-5 workdays
Part Number :
1.6T 2xDR4/DR8 OSFP224
Form Factor :
OSFP224
Max Data Rate :
8x212Gb/s PAM4
Wavelength :
850nm
Max Distance :
500m
Connector :
MPO-12/APC
Warranty :
3 Years
Package Dimensions :
5.12 x 3.54 x 1.57 inches
Description

NVIDIA/Mellanox MMS4A00-XM Compatible 1.6T 2xDR4/DR8 InfiniBand XDR Silicon Photonics Optical Transceiver Module(Twin-port OSFP224, 1310nm, 500m (OS2) , Dual MPO-12/APC, DOM, for SMF, IHS/Finned Top)

NADDOD OSFP-1.6T-2xDR4H Optical Transceiver Module is an InfiniBand and Ethernet 1.6Tb/s 2x800Gb/s Twin-port OSFP224, 2xDR4/DR8 single mode, Silicon photonics-based, parallel, 8-channel transceiver using two, 4-channel MPO-12/APC optical connectors at 800Gb /s each. The parallel single mode, data center reach 8-channel (2xDR4/DR8) design uses 200G-PAM4 modulation and has a maximum fiberreach of 500-meters using 8 single mode fibers. The main application for OSFP-1.6T-2xDR4H is linking two switches together with up to 500 meters.

Feature:

  • 100% verified by the original, perfectly compatible with NVIDIA Quantum-X800 Q3400-RA XDR switch devices.
  • Maximum power consumption 26W.
  • 8x 200G-PAM4 electrical modulation.
  • SiPh technology for cost-efficient, low power, high capacity.
  • Built-in 3nm DSP, providing stable transmission performance.
  • Compliant with OSFP MSA, IEEE 802.3dj_D1.1 protocol and CMIS 5.2.
  • 30-Day Free Return, 1-Year Free Replacement, 3-Year Warranty, Lifetime After-sales Technical Support.

Quality Assurance

Excellent quality is the foundation of Comelink's survival and development. Our operation team are experts with many years' experience in the optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Specificiation

Form Factor
OSFP224
Distance
500m
Wavelength
1310nm
Connector
Dual MPO-12 /APC
Power Consumption
≤26W
Transmitter
DFB(SiPh Based)
Receiver
PIN(SiPh Based)
Media
SMF
Modulation(Electrical)
8x212Gb/s PAM4
Modulation(Optical)
Two ports 4x212Gb/s PAM4
Case Temperature(℃)
0~70°C(32 to 158°F)
Protocol
IB XDR, 1.6T Ethernet Compliant

Application:

NVIDIA/Mellanox MMS4A00-XM Compatible 1.6T 2xDR4/DR8 OSFP224 PAM4 3nm/5nm DSP 1310nm 500m DOM Dual MPO-12/APC InfiniBand XDR Silicon Photonics Transceiver Module for SMF (IHS/Finned Top)

Comprehensive Testing Increases Reliability
Qualified through a rigorous process with advanced equipments to ensure you get the high quality and reliable optics.
NVIDIA/Mellanox MMS4A00-XM Compatible 1.6T 2xDR4/DR8 OSFP224 PAM4 3nm/5nm DSP 1310nm 500m DOM Dual MPO-12/APC InfiniBand XDR Silicon Photonics Transceiver Module for SMF (IHS/Finned Top)

Unleash HPC Power with InfiniBand Architecture

We provides the Infiniband network solution, offering significant advantages in terms of high-speed, low latency, scalability, and efficiency.

NVIDIA/Mellanox MMS4A00-XM Compatible 1.6T 2xDR4/DR8 OSFP224 PAM4 3nm/5nm DSP 1310nm 500m DOM Dual MPO-12/APC InfiniBand XDR Silicon Photonics Transceiver Module for SMF (IHS/Finned Top)

Flat Top OSFP Connector Shell

The OSFP shell has a flat top and is used in adapters, such as ConnectX-7 InfiniBand Adapter Cards.
