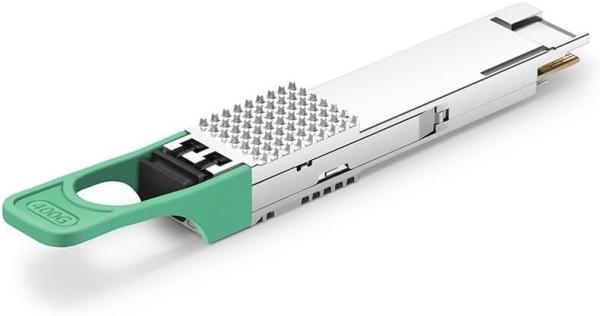

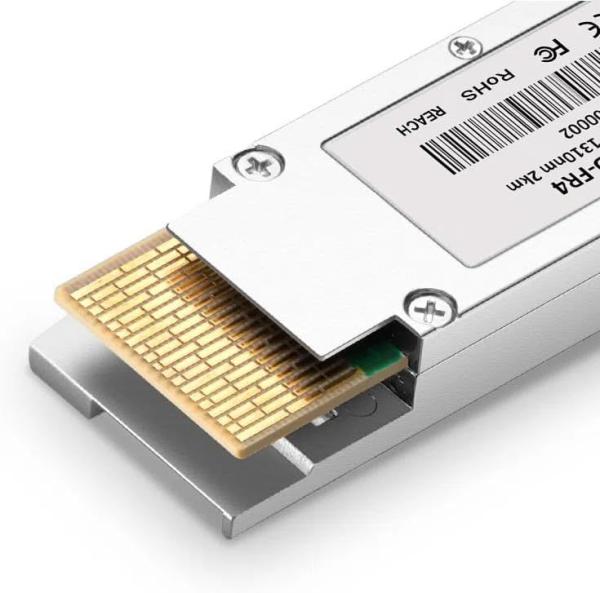

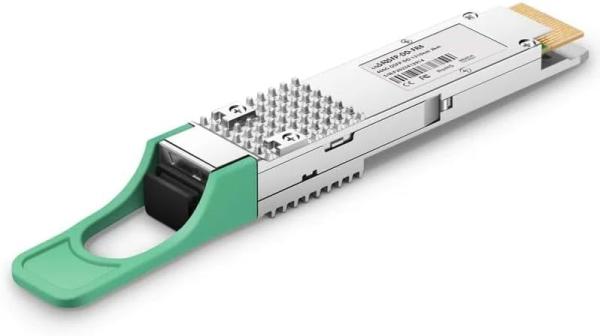

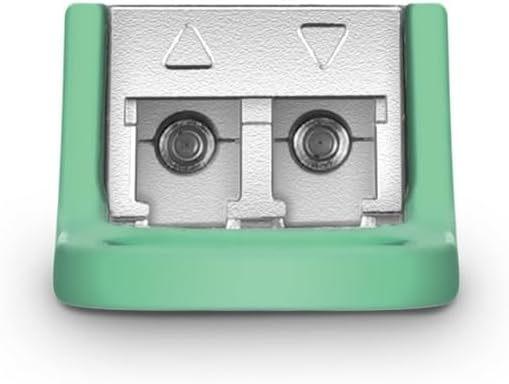

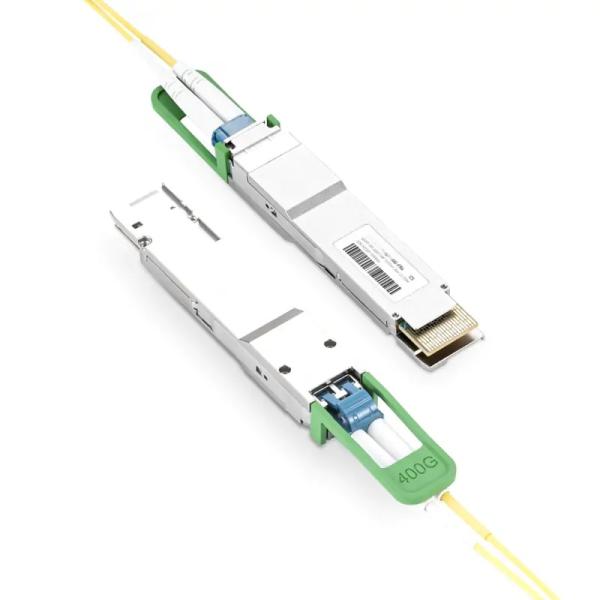

Comelink 400G QSFP-DD FR4 Optical Transceiver Module,400G QSFP-DD FR4 PAM4 Optical Transceiver CWDM4 2km Duplex LC SMF, 1310nm 2km
Comelink 400G QSFP-DD FR4 Optical Transceiver Module,400G QSFP-DD FR4 PAM4 Optical Transceiver CWDM4 2km Duplex LC SMF, 1310nm 2km
Comelink 400G QSFP-DD FR4 Optical Transceiver Module,400G QSFP-DD FR4 PAM4 Optical Transceiver CWDM4 2km Duplex LC SMF, 1310nm 2km
Comelink 400G QSFP-DD FR4 Optical Transceiver Module,400G QSFP-DD FR4 PAM4 Optical Transceiver CWDM4 2km Duplex LC SMF, 1310nm 2km
Comelink 400G QSFP-DD FR4 Optical Transceiver Module,400G QSFP-DD FR4 PAM4 Optical Transceiver CWDM4 2km Duplex LC SMF, 1310nm 2km
Comelink 400G QSFP-DD FR4 Optical Transceiver Module,400G QSFP-DD FR4 PAM4 Optical Transceiver CWDM4 2km Duplex LC SMF, 1310nm 2km
Comelink 400G QSFP-DD FR4 Optical Transceiver Module,400G QSFP-DD FR4 PAM4 Optical Transceiver CWDM4 2km Duplex LC SMF, 1310nm 2km
Comelink 400G QSFP-DD FR4 Optical Transceiver Module,400G QSFP-DD FR4 PAM4 Optical Transceiver CWDM4 2km Duplex LC SMF, 1310nm 2km
Comelink 400G QSFP-DD FR4 Optical Transceiver Module,400G QSFP-DD FR4 PAM4 Optical Transceiver CWDM4 2km Duplex LC SMF, 1310nm 2km
Comelink 400G QSFP-DD FR4 Optical Transceiver Module,400G QSFP-DD FR4 PAM4 Optical Transceiver CWDM4 2km Duplex LC SMF, 1310nm 2km
Specifications
Brand Name :
comelink
Model Number :
400G QSFP-DD LR4
Certification :
ROHS/ISO9001/CE
Place of Origin :
China
MOQ :
1 PC
Price :
USD 750 PCE
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
3-5 workdays
Part Number :
400G QSFP-DD FR4
Form Factor :
Twin-port OSFP
Max Data Rate :
400Gbps
Wavelength :
850nm
Max Distance :
2km
Connector :
MPO-12/APC
Warranty :
3 Years
Package Dimensions :
5.12 x 3.54 x 1.57 inches
Description

QDD-400G-FR4 Compatible 400G QSFP-DD FR4 PAM4 CWDM Optical Transceiver Module (CWDM SMF LC 2km DDM with FEC)

400G QSFP-DD FR4 is a 400Gb/s Quad Small Form Factor Pluggable Double Density (QSFP-DD) optical module supporting link lengths up to 2km SMF through duplex LC connectors. The Transceiver complies with IEEE 802.3bs, the 400GBASE-FR4 specification of the 100G Lambda MSA group, and the 400GAUI-8/CEI-56G-VSR-PAM4 standard. The 400 Gigabit Ethernet signal is carried over four CWDM mesh optical wavelengths. Multiplexing and demultiplexing of four wavelengths are managed within the device.

Feature:

1.400G-FR4 Transceiver Module 1270nm, 1290nm, 1310nm, 1330nm wavelengths Duplex LC, 2km over parallel single-mode fiber.
2.The QSFP-DD port is backward compatible with QSFP+, QSFP28, and QSFP56 modules
3.4 CWDM lanes MUX/DEMUX design, 8x50G PAM4 Retimed 400GAUI-8/CEI-56G-VSR-PAM4 standard.
4.By testing in the target switch, it guarantees excellent performance, quality, and reliability.
5.Comelink is a producer of transceivers, and customized services can be availed.

Comelink 400G QSFP-DD FR4 Optical Transceiver Module,400G QSFP-DD FR4 PAM4 Optical Transceiver CWDM4 2km Duplex LC SMF, 1310nm 2km

Quality Assurance

Excellent quality is the foundation of Comelink's survival and development. Our operation team are experts with many years' experience in the optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Specificiation

P/N QSFP-DD-400G-FR4 Vendor Name Comelink
Form Factor QSFP-DD Max Data Rate 425Gbps
Wavelength 1271nm, 1291nm, 1311nm, 1331nm Max Distance 2km
Modulation Format PAM4 Host Required FEC
Connector Duplex LC Voltage Supply 3.3V
Cable Type SMF DDM Support Yes
Transmitter Type CWDMEML Receiver Type PIN
TX Power -3.3~+3.5dBm Receiver Sensitivity < -7.7dBm
Operation Temperature 0 to 70°C (32 to 158°F) Maximum Power < 10.5W
Protocols QSFP-DD MSA,
100G Lambda MSA 400G-FR4		 Application 400G Ethernet, Data Center Interconnect, Infiniband Interconnects

Application:

Comelink 400G QSFP-DD FR4 Optical Transceiver Module,400G QSFP-DD FR4 PAM4 Optical Transceiver CWDM4 2km Duplex LC SMF, 1310nm 2km

Comprehensive Testing Increases Reliability
Qualified through a rigorous process with advanced equipments to ensure you get the high quality and reliable optics.
Comelink 400G QSFP-DD FR4 Optical Transceiver Module,400G QSFP-DD FR4 PAM4 Optical Transceiver CWDM4 2km Duplex LC SMF, 1310nm 2km

Unleash HPC Power with InfiniBand Architecture

We provides the Infiniband network solution, offering significant advantages in terms of high-speed, low latency, scalability, and efficiency.

Comelink 400G QSFP-DD FR4 Optical Transceiver Module,400G QSFP-DD FR4 PAM4 Optical Transceiver CWDM4 2km Duplex LC SMF, 1310nm 2km

Flat Top OSFP Connector Shell

The OSFP shell has a flat top and is used in adapters, such as ConnectX-7 InfiniBand Adapter Cards.
