Specifications
Brand Name :
comelink
Model Number :
800g OSFP SR8
Certification :
ROHS/ISO9001/CE
Place of Origin :
China
MOQ :
1 PC
Price :
USD 1000 PCE
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
3-5 workdays
Part Number :
SR8-800G
Form Factor :
Twin-port OSFP
Max Data Rate :
800Gbps
Wavelength :
850nm
Max Cable Distance :
70m@OM3/100m@OM4
Connector :
MPO-12/APC
Power Budget :
1.9dB
Warranty :
3 Years
Package Dimensions :
5.12 x 3.54 x 1.57 inches
Description

OSFP-800G-SR8, is an InfiniBand and Ethernet 800Gb/s 2x400Gb/s Twin-port OSFP, SR8 multimode, parallel, 8-channel transceiver using two, 4-channel MPO-12/APC optical connectors at 400Gb/s each.The Twin-port SR8 transceiver is a key innovation with two internal transceiver engines enabling 64-ports of 400Gb/s in a 32-OSFP cage Quantum-2 switch. Spectrum-4 switches have 32 or 64 cages and enable 64-128 400G ports.

Feature:

  • 100% verified by the original, perfectly compatible with NVIDIA QM9700/9790 devices.
  • Tested for compatibility with multiple firmware versions, compliant with IBTA Industrial BER standards.
  • Broadcom DSP & Broadcom VCSEL, with industry-leading hardware for maximizing the performance of HPC networks.
  • Complies with OSFP MSA, CMIS 4.0, and RoHS protocols, providing a reliable and sustainable solution.
  • 30-Day Free Return, 1-Year Free Replacement, 3-Year Warranty, Lifetime After-sales Technical Support.

Specificiation:

Chip Solutions
Broadcom DSP & Broadcom VCSEL
Form Factor
Twin-port OSFP
Distance
70m (OM3) /100m (OM4)
Wavelength
850nm
Connector
Two MPO-12/APC
Power Consumption
≤16W
Transmitter
VCSEL
Receiver
PIN
Media
MMF
Modulation(electrical )
8x106.25Gb/s PAM4
Modulation(Optical )
Two ports 4x106.25Gb/s PAM4
Case Temperature(℃)
0~70°C(32 to 158°F)
Protocol
IB NDR,800G Ethernet Compliant

Application:

* InfiniBand NDR
* 800G SR8 applications with FEC
* 2x400GbE breakout applications

Comelink 800G OSFP SR8 Optical Transceiver Module, Compatible with 800GBASE 2 x SR4/SR8 OSFP Ethernet multimode Optical modules, 2 x MPO-12, 850nm 70m

Comprehensive Testing Increases Reliability
Qualified through a rigorous process with advanced equipments to ensure you get the high quality and reliable optics.
Comelink 800G OSFP SR8 Optical Transceiver Module, Compatible with 800GBASE 2 x SR4/SR8 OSFP Ethernet multimode Optical modules, 2 x MPO-12, 850nm 70m

Unleash HPC Power with InfiniBand Architecture

We provides the Infiniband network solution, offering significant advantages in terms of high-speed, low latency, scalability, and efficiency.

Comelink 800G OSFP SR8 Optical Transceiver Module, Compatible with 800GBASE 2 x SR4/SR8 OSFP Ethernet multimode Optical modules, 2 x MPO-12, 850nm 70m

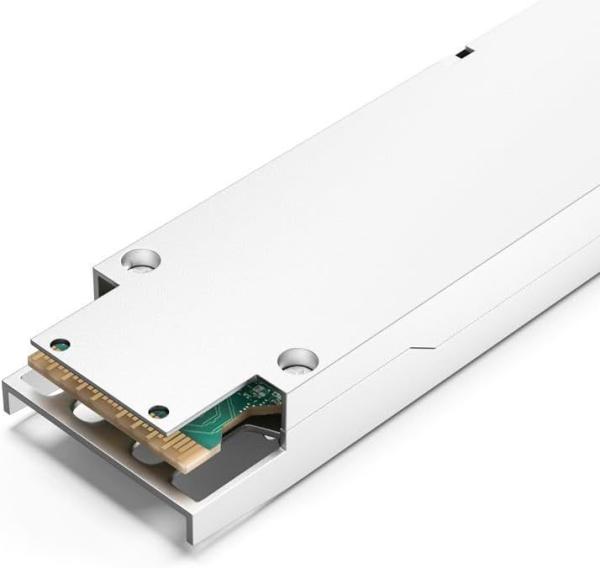

Flat Top OSFP Connector Shell

The OSFP shell has a flat top and is used in adapters, such as ConnectX-7 InfiniBand Adapter Cards.
