SGS 8000r/Min Five Axis Machining Center , Multifunctional Small CNC Machine Center
SGS 8000r/Min Five Axis Machining Center , Multifunctional Small CNC Machine Center
Specifications
Brand Name :
Li Zhun
Model Number :
DM-1060
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10000 per year
Delivery Time :
30-45 work days
Packaging Details :
Wooden Box
Certification :
SGS
Product Name :
5 Axis CNC Vertical Machining Center DM-1060
Condition :
New
Warranty :
1 Year
Type :
Vertical
Axis :
5
Description

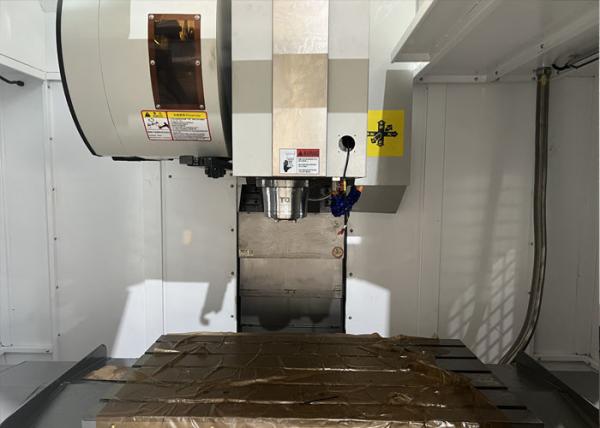

High Precision 5 Axis CNC Vertical Machining Center DM-1060 High Rigidity

Just like other DM series machines, the 5 Axis CNC Vertical Machining Cener DM 1060 has the characteristics of high speed, high rigidity and high precision. The column of this machine is using double wall structure design to ensure the overall rigidity of the machine. The machine is equipped with a high rigidity of the spindle, the spindle is made of excellent and extremely rigid material, can absorb vibration, effectively avoid the problem which cause by tool vibration and will not affect the machining workpiece surface accuracy. The spindle has a very high precision, and the spindle speed range is 8000rpm. The spindle with high precision and high rotation greatly improves the processing efficiency and saves the processing time. The machine comes with a high specification as standard and options to personalise the machine for your specific application.

Main Technical Parameters

ITEM MODELS→ VMC1060 VMC1065

WORKTABLE (WIDTH*LENGTH)		 mm 600*1300 1380*600

DISTANCE BETWEEN T SLOTS		 mm 5-18*120/5-18*120 5-18*120/5*18*120

MAX LOAD BEARING OF WORKTABLE		 kg 900 900

X/Y/Z AXIS TRAVEL		 mm 1000/600/600 10000/650/600

DISTANCE FROM SPINDLE NOSE TOWORKBENCH		 mm 180-780/70-670 180-780/70-670

SPINDLE HOLE TAPER		 180-780/70-670 BT40

SPINDLE SPEED RANGE		 r/min 12000 12000

TRANSMISSION OF SPINDLE BOX		 BELT/DIRECT BELT/DIRECT BELT/DIRECT

SPINDLE MOTOR POWER		 kW 11 11

X/Y/Z RAPID FEED SPEED		 m/min 24*24*18 24*24*18

MAX CUTTING FEED SPEED		 mm/min 10000 10000

TOOLS MAGAZINE CAPACITY		 pcs 24 24

FULL TOOLS MAX TOOL DIAMETER		 mm 100 100

MAX.TOOLS ALLOWABLE WEIGHT		 kg 7 7

MAX.TOOLS ALLOWABLE LENGTH		 mm 305 305

X/Y/Z POSITION ACCURACY		 mm 0.008 0.008

X/Y/Z RE-POSITION ACCURACY		 mm 0.005 0.005

MACHINE DIMENSION		 mm 3080*2370*2540 3070*2370*2480

MACHINE WEIGHT		 kg 7800 7800

Standard Configuration for DM Series

1. Full Cover shield /

2. Self-lubrication system /

3. Working lights /

4. Warning lights /

5. Working condition warning lights /

6. M30 Self-powered electrical shutoff system /

7. Clean air gun/ Water Tank / Transformer /

8. Spindle air curtain and dust control system /

9. Electric box heat exchanger/

10.Worktable cleaning water gun

Optional Configuration for DM Series

1. NC rotary table (4 Axis) /

2. CTS /

3. Tool detection system /

4. Automatic tool length measurement and damage detector /

5. Three axis optical ruler /

6,.Disc type oil-water separator /

7. Crawler iron filings carrier /

8. AJO
