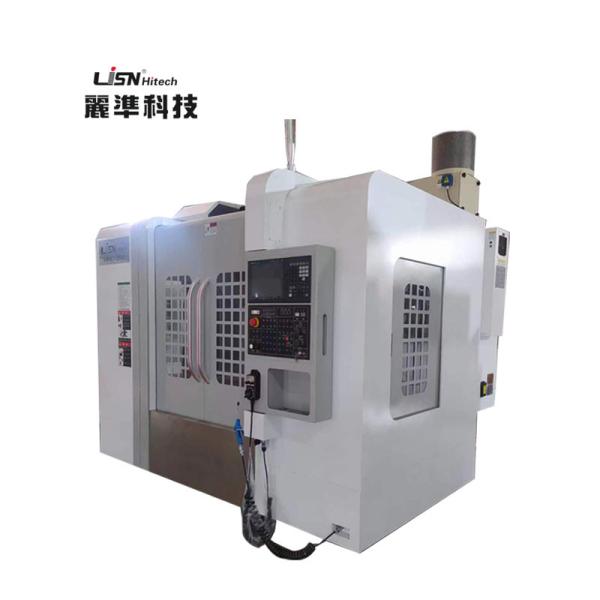

LiZhun CNC1066 5 Axis CNC Machining Center Practical 11KW Vertical Type
LiZhun CNC1066 5 Axis CNC Machining Center Practical 11KW Vertical Type
Specifications
Brand Name :
LiZhun
Model Number :
VMC1066
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
1000/years
Delivery Time :
30-45work days
Packaging Details :
Wooden box
Type :
Vertical
Condition :
New
Spindle speed :
10000rpm
Machine type :
CNC Vertical Machining Center
Spindle taper :
BT40
Product type :
CNC 5Axis Machine
Processing :
Maching Center
Warranty :
1 Year
Description

CNC1066 5Axis CNC Machining Center High Speed And High Accuracy

1.Product overview

Vertical Machining Center This product is a semi-closed-loop vertical machining center with X, Y, Z three-axis servo direct-connected control. The three axes are rolling linear guides. The guide rail has a large load, a wide span structure and a reasonable design of external dimensions. The main shaft is a servo motor. Driven by timing belt. It can realize the clamping of complex parts such as various disks, plates, shells, cams, molds, etc., and can complete various processes such as drilling, milling, boring, expansion, reaming, and rigid tapping. It is suitable for multiple varieties, Production of small and medium batch products, processing of complex parts. It can be equipped with a fifth rotation axis to complete the processing requirements of accessory parts.

Description of functions and features of 5-axis CNC milling machine vertical machining center machine tool

2.Main technical parameters

ITEM MODELS→ VMC1066 VMC1160 VMC1270 VMC1275

WORKTABLE (WIDTH*LENGTH)		 mm 1000*660*500 600*1200 600*1360 600*1360

DISTANCE BETWEEN T SLOTS		 mm 5-18*120/5*18*120 5-18*120 5-18*152.5 5-18*152.5

MAX LOAD BEARING OF WORKTABLE		 kg 900 1000 900 900

X/Y/Z AXIS TRAVEL		 mm 10000/660/600 1100/600/600 1200/700/700 1200/750/700
面N DISTANCE FROM SPINDLE NOSE TOWORKBENCH mm 180-780/70-670 180-780/70-670 150-750 150-750

SPINDLE HOLE TAPER		 BT40 BT40 BT50 BT50

SPINDLE SPEED RANGE		 r/min 10000 10000 10000 10000

TRANSMISSION OF SPINDLE BOX
BELT/DIRECT
BELT/DIRECT
BELT/DIRECT		 10000
BELT/DIRECT

SPINDLE MOTOR POWER		 kW 11 11 15 15

X/Y/Z RAPID FEED SPEED		 m/min 24*24*18 24*24*18 24*24*18 24*24*18

MAX CUTTING FEED SPEED		 mm/min 10000 10000 10000 1-10000

TOOLS MAGAZINE CAPACITY		 pcs 24 24 24 24

FULL TOOLS MAX TOOL DIAMETER		 mm 100 100 240 240

MAX.TOOLS ALLOWABLE WEIGHT		 kg 7 7 15 15

MAX.TOOLS ALLOWABLE LENGTH		 mm 305 305 305 305

X/Y/Z POSITION ACCURACY		 mm 0.008 0.008 0.008 0.008

X/Y/Z RE-POSITION ACCURACY		 mm 0.005 0.005 0.005 0.005

MACHINE DIMENSION		 mm 3070*2370*2480 3070*2370*2480 3530*2600*2640 3420*2370*2540

MACHINE WEIGHT		 kg 7800 7800 9000 9000

3.Product details

LiZhun CNC1066 5 Axis CNC Machining Center Practical 11KW Vertical Type

FAQ:

1. Is it all right to make customer's own brand name?

A: yes . we are available with OEM

2. Are you a manufactuer or trading company?

A:We are the manufacturer

3. Can you do the design for us?

A: yes . if you want a different control system design or higher column , we are available .

4 . What is your terms of delivery?

A: FOB shenzhen .

5. What's your payment term?

A: T/T OR L/C at sight .
