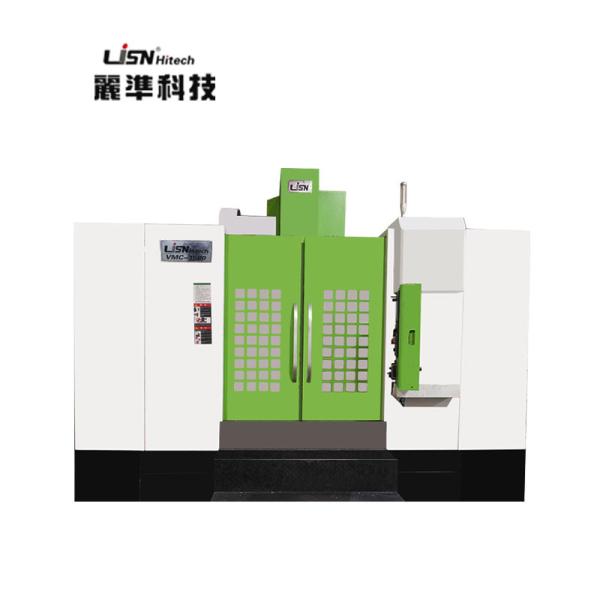

VMC 1580 Durable 5 Axis CNC Machining Center Multipurpose 8000RPM
VMC 1580 Durable 5 Axis CNC Machining Center Multipurpose 8000RPM
Specifications
Brand Name :
Li Zhun
Model Number :
VMC-1580
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10000 per year
Delivery Time :
30-45 work days
Packaging Details :
Wooden Box
Certification :
SGS
Product Name :
5 Axis CNC Vertical Machining Center VMC 1580
Condition :
New
Warranty :
1 Year
Type :
Vertical
Table size :
1500*800mm
Description

VMC-1580 4 Axis CNC Vertical Machining Center

The size of the worktable is 800*1700. The spindle, fuselage, base and overall structure of the machine are all made of high-strength and high-rigidity materials, which effectively avoid deformation and other problems in the process of processing.

Main Technical Parameters

ITEM MODELS VMC1580
WORKTABLE (WIDTH*LENGTH) mm 800*1700
DISTANCE BETWEEN T SLOTS mm 5-22*135
MAX LOAD BEARING OF WORKTABLE kg 1500
X/Y/Z AXIS TRAVEL mm 1500/800/700
5-AXIS /
DISTANCE FROM SPINDLE NOSE TOWORKBENCH mm 170-780
SPINDLE HOLE TAPER TB50
SPINDLE SPEED RANGE r/min 8000
TRANSMISSION OF SPINDLE BOX BELT/DIRECT BELT/DIRECT
SPINDLE MOTOR POWER kW 15
X/Y/Z RAPID FEED SPEED m/min 18*18*18
MAX CUTTING FEED SPEED mm/min 1-10000
TOOLS MAGAZINE CAPACITY pcs 24
FULL TOOLS MAX TOOL DIAMETER mm 240
MAX.TOOLS ALLOWABLE WEIGHT kg 15
MAX.TOOLS ALLOWABLE LENGTH mm 305
X/Y/Z POSITION ACCURACY mm 0.008
X/Y/Z RE-POSITION ACCURACY mm 0.005
MACHINE DIMENSION mm 4110*2740*2900

MACHINE WEIGHT		 kg 12800

Standard Configuration for VMC Series

1. Full Cover shield /
2. Self-lubrication system /
3. Working lights /
4. Warning lights /
5. Working condition warning lights /
6. Self-powered electrical shutoff system /
7. Clean air gun/ Water Tank / Transformer /
8. Spindle air curtain and dust control system /
9. 10000 RPM spindle /
10.Worktable cleaning water gun

Optional Configuration for VMC Series

1. 24 disc manipulator tool magazine /
2. Crawler chips remover /
3. NC rotary table (4 Axis) /
4. CTS /
5. Tool detection system /
6,. AJO /
7. 12000 & 15000 RPM Direct connection spindle /
8. Oil mist purifier

Product Details

VMC 1580 Durable 5 Axis CNC Machining Center Multipurpose 8000RPMVMC 1580 Durable 5 Axis CNC Machining Center Multipurpose 8000RPM
