Shockproof 5 Axis Horizontal Machining Center VMC1270W Multipurpose Stable
Shockproof 5 Axis Horizontal Machining Center VMC1270W Multipurpose Stable
Specifications
Brand Name :
Li Zhun
Model Number :
VMC-1270W
Certification :
SGS
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10000 per year
Delivery Time :
45-60 Work Days
Packaging Details :
Wooden Box
Type :
Horizontal
Condition :
New
Warranty :
1 Year
Worktable Size :
1380mm*600mm
Maximum Load Bearing Capability :
900kg
Machine Weight :
5500kg
Description

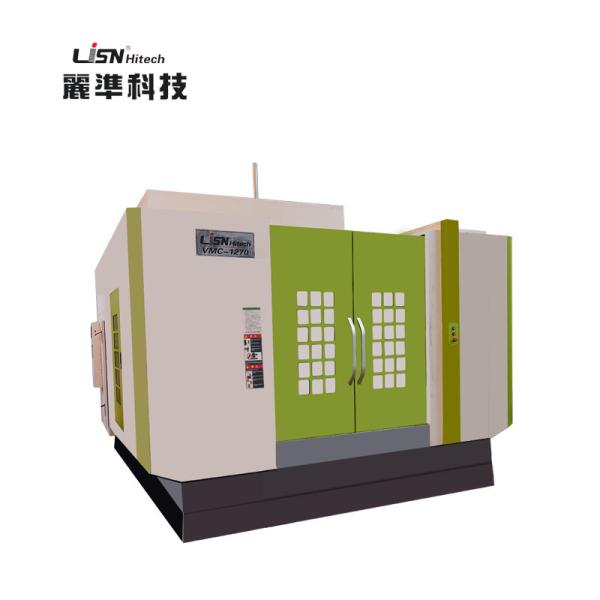

5 Axis Horizontal Machining Center With High Precision and Speed VMC1270W

Product Description

The 5 version of VMC-1270W is a high performace horizontal machining center which features in high precision and rigidity. The overall design and structure of the machine is excellent. It adopts the inverted T-shaped movable column overall bed structure and it is very excellent in strength, stiffness and stability. This machine is passed through repeated experiments to ensure it has good dynamic performance, motion accuracy control, accuracy and processing accuracy stability. The machine is equipped with Mitsubishi M80 numerical control system. It is simple to operate, not only can effectively improve the processing efficiency and ensure processing quality, but also can reduce labor costs and processing time. The performance of the spindle is very excellent also. The maximum cutting feed speed of the spindle is 1 - 8000RPM and the speedup time is extremely fast. The machine casting can effectively absorb the vibration caused by machining, and ensure the machining accuracy.

Main Features

  • Excellent Rigidity of the machine
  • High Precision and stability spindle
  • Worktable size: 1380mm*600mm
  • Maximum load bearing capability: 900kg

Main Parameters

ITEM MODELS VMC1270W
WORKTABLE (WIDTH*LENGTH) mm 1380*600
T SLOTS mm 5*18*110
DISTANCE BETWEEN T SLOTS mm 5*18*110
DISTANCE FROM SPINDLE NOSE TOWORKBENCH mm 100-820
MAX LOAD BEARING OF WORKTABLE kg 900
X/Y/Z AXIS TRAVEL mm 1200/750/720
SPINDLE HOLE TAPER BT50
SPINDLE SPEED RANGE r/min 6000/8000
TRANSMISSION OF SPINDLE BOX BELT/DIRECT Optional
X/Y/Z RAPID FEED SPEED m/min 20/20/20
MAX CUTTING FEED SPEED mm/min 1-8000
MACHINE DIMENSION mm 3300*2370*3200

MACHINE WEIGHT		 kg 5500

Standard Accessories Optional Accessories
Mitsubishi M80VB Controller Fanuc Oi-MD mate Controller
Air Blast through spindle BT30 Direct Type (12000/15000/18000/20000/24000rpm)
Rigid tapping BT30 Built-IN Type (24000rpm)
Rs232 interface BT40 Direct Type (10000/15000/18000/20000rpm)
CF card interface ATC-BT30 16T/18T/21T
Word lamp ATC-BT40 16T/18T
Alarm lamp Around spindle cutting coolant unit
Auto power off Screw Type Chip Conveyor with Car
Auto lubricantion system Chain Type Chip Conveyor with Car
Cutting coolant unit Column raised: 100mm/200mm
Flushing device Tool lengthe measurement system
Full splash guard Disk type oil-water spearator
Heat exchange for control cabinet oil mist collector
Leveling Bolts and leveling Blocks Ath Axis
Tool Box Auto door
CE

FAQ

1. Is it all right to make customer's own brand name?

A: yes. we are available with OEM

2. Are you a manufactuer or trading company?

A:We are the manufacturer

3. Can you do the design for us?

A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?

A: FOB shenzhen.

5. What's your payment term?

A: T/T OR L/C at sight.
