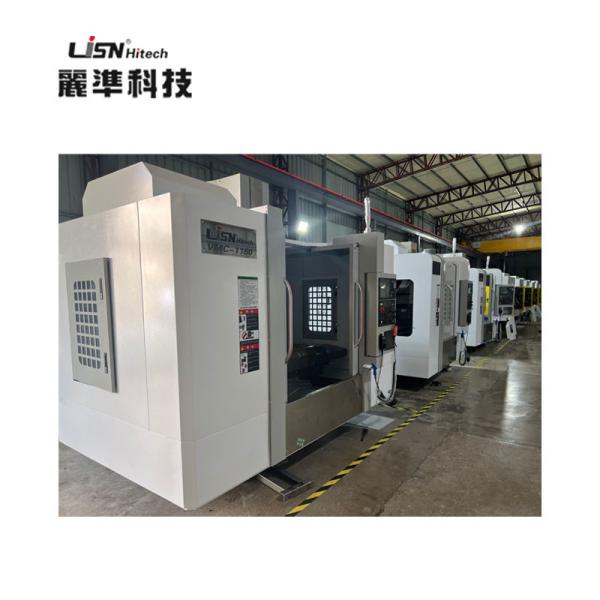

Worktable 1400x7500mm Five Axis VMC Machine , Anti Vibration CNC center 5 axis
Worktable 1400x7500mm Five Axis VMC Machine , Anti Vibration CNC center 5 axis
Specifications
Brand Name :
LiZhun
Model Number :
VMC1475
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10000 per year
Delivery Time :
30-45work days
Packaging Details :
Wooden box
Certification :
SGS
Warranty :
1 Year
Condition :
New
Type :
Vertical
Spindle :
Taiwan 8000rpm spindle
Spindle taper :
BT50
Worktable size :
1400*7500mm
Product name :
5 Axis CNC machining center
Processing :
Maching Center
Description

VMC1475 5 Axis CNC Machining Center High speed and high precision

Product features

The tool magazine is made of Taiwan brand, and the cam machine rotates to change the tool, which is accurate and efficient.
The tool magazine is equipped with high strength, tool magazine seat to ensure the stability of tool change, and pneumatic tool magazine door is configured to effectively prevent the entry of coolant and iron.

Main technical parameters

ITEM MODELS→ VMC1380 VMC1475

WORKTABLE (WIDTH*LENGTH)		 mm 800*1400 700*1500

DISTANCE BETWEEN T SLOTS		 mm 5-18*152.5 5-18*152.5

MAX LOAD BEARING OF WORKTABLE		 kg 900 1000

X/Y/Z AXIS TRAVEL		 mm 1300/800/650 1400/750/650

DISTANCE FROM SPINDLE NOSE TOWORKBENCH		 mm 150-800 170-780

SPINDLE HOLE TAPER		 TB50 TB50

SPINDLE SPEED RANGE		 r/min 8000 8000

TRANSMISSION OF SPINDLE BOX		 BELT/DIRECT BELT/DIRECT BELT/DIRECT

SPINDLE MOTOR POWER		 kW 15 15

X/Y/Z RAPID FEED SPEED		 m/min 24*24*18 24*24*18

MAX CUTTING FEED SPEED		 mm/min 1-10000 1-10000

TOOLS MAGAZINE CAPACITY		 pcs 24 24

FULL TOOLS MAX TOOL DIAMETER		 mm 240 240

MAX.TOOLS ALLOWABLE WEIGHT		 kg 15 15

MAX.TOOLS ALLOWABLE LENGTH		 mm 305 305
X
X/Y/Z POSITION ACCURACY		 mm 0.008 0.008

X/Y/Z RE-POSITION ACCURACY		 mm 0.005 0.005

MACHINE DIMENSION		 mm 3630*2600*2640 4535*3050*3100

MACHINE WEIGHT		 kg 10000 11800
