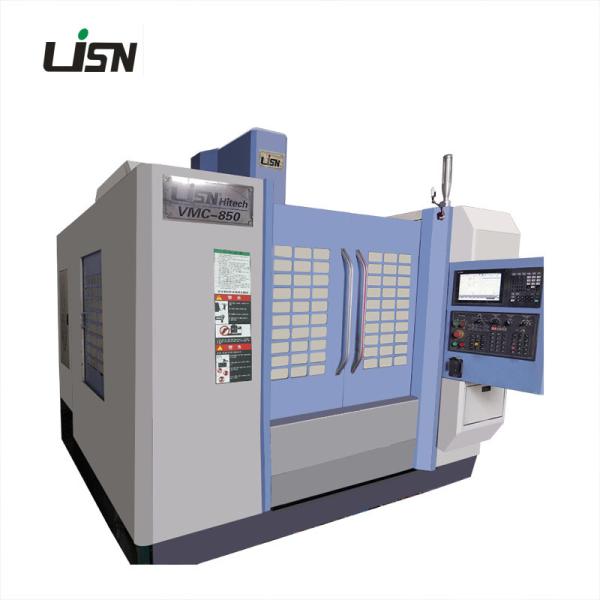

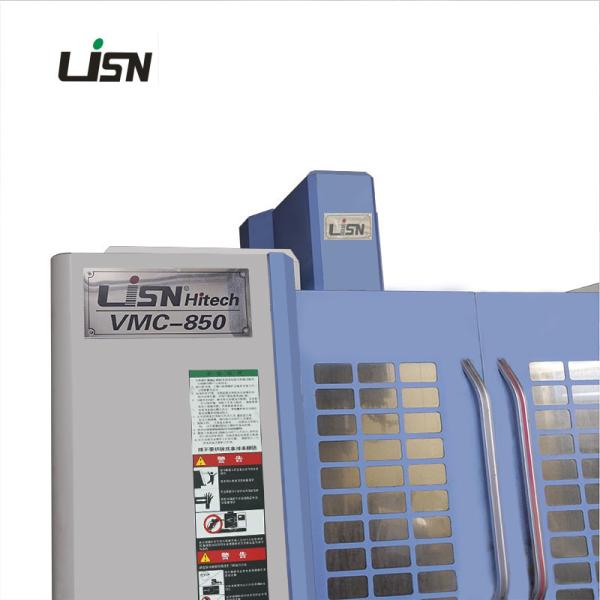

SGS 10000RPM 5 Axis CNC Machining Center Multipurpose VMC 855
SGS 10000RPM 5 Axis CNC Machining Center Multipurpose VMC 855
SGS 10000RPM 5 Axis CNC Machining Center Multipurpose VMC 855
SGS 10000RPM 5 Axis CNC Machining Center Multipurpose VMC 855
Specifications
Brand Name :
Li Zhun
Model Number :
VMC-855
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10000 per year
Delivery Time :
15-30 work days
Packaging Details :
Wooden Box
Certification :
SGS
Product Name :
5 Axis CNC Vertical Machining Center VMC 855
Condition :
New
Warranty :
1 Year
Type :
Vertical
Spindle Taper :
BT40
Spindle Speed :
10000 RPM
Axis :
5
Description

High Precision 5 Axis CNC Vertical Machining Center VMC 855 High Speed

Product Description

The VMC855 is one of the products in the VMC series. This model is an upgrade of VMC850. Compared with VMC850, VMC855 has a larger size of worktable, which can better process large and complex parts. The 5 Axis CNC Vertical Machining Center VMC 855 has a high strength construction and Integrated bearing block, which can effectively improve the overall rigidity of the axial system and effectively avoid the rotation deformation of the screw. It is also using the oil-water separation design, which can not only prolong the service life of the chip fluid, but also reduce the cost and meet the requirements of environmental protection requirement. The three-axis lead screw adopts the installation method of fixed two ends, and with large high precision ball screw, the best speed response and positioning accuracy can be obtained by pre-stretching treatment.

Main Technical Parameters

ITEM MODELS→ VMC855
WORKTABLE (WIDTH*LENGTH) mm 550*1000
DISTANCE BETWEEN T SLOTS mm 5-18*100
MAX LOAD BEARING OF WORKTABLE kg 600
X/Y/Z AXIS TRAVEL mm 800/550/600
5-AXIS /
DISTANCE FROM SPINDLE NOSE TOWORKBENCH mm 110-810/110-610
SPINDLE HOLE TAPER BT40
SPINDLE SPEED RANGE r/min 10000
TRANSMISSION OF SPINDLE BOX
BELT/DIRECT
BELT/DIRECT
SPINDLE MOTOR POWER kW 7.5
X/Y/Z RAPID FEED SPEED m/min 36*36*24
MAX CUTTING FEED SPEED mm/min 10000
TOOLS MAGAZINE CAPACITY pcs 24
FULL TOOLS MAX TOOL DIAMETER mm 100
MAX.TOOLS ALLOWABLE WEIGHT kg 7
MAX.TOOLS ALLOWABLE LENGTH mm 260
X/Y/Z POSITION ACCURACY mm 0.008
X/Y/Z RE-POSITION ACCURACY mm 0.005
MACHINE DIMENSION mm 2495*1970
MACHINE WEIGHT kg 6000

Standard Configuration for VMC Series

Full Cover shield / Self-lubrication system / Working lights / Warning lights / Working condition warning lights / Self-powered electrical shutoff system / Clean air gun/ Water Tank / Transformer / Spindle air curtain and dust control system / 10000 RPM spindle / Worktable cleaning water gun

Optional Configuration for VMC Series

24 disc manipulator tool magazine / Crawler chips remover / NC rotary table (4 Axis) / CTS / Tool detection system / AJO / 12000 & 15000 RPM Direct connection spindle / Oil mist purifier
