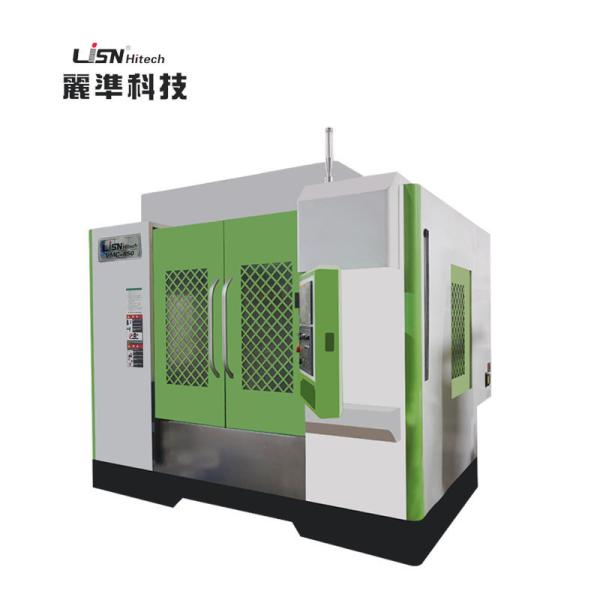

Multipurpose Machining Center 5 Axis
Multipurpose Machining Center 5 Axis
Specifications
Brand Name :
Li Zhun
Model Number :
VMC-650
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10000 per year
Delivery Time :
15-30 work days
Packaging Details :
Wooden Box
Certification :
SGS
Product Name :
5 Axis CNC Vertical Machining Center VMC 650
Condition :
New
Warranty :
1 Year
Type :
Vertical
Spindle Taper :
BT40
Spindle Speed :
10000 RPM
Axis :
5
Description

PRODUCT DESCRIPTION

High Speed and Precision 5 Axis CNC Vertical Machining Center VMC 650

The 5 Axis CNC Vertical Machining Center VMC 650 is equiped with High precision roller type guideway, both X,Y,Z are using ultra-rigid roller linear guideway. With the characteristics of heavy cutting rigidity of hard guideway and fast movement and low wear of linear guideway, the rigidity and control are greatly improved. At the same time, the machine is equipped with the chip removal system, which can effectively clean up the debris on the workbench, and better ensure the work efficiency.

Main Technical Parameters

ITEM MODELS VMC650
WORKTABLE (WIDTH*LENGTH) mm 420*700
DISTANCE BETWEEN T SLOTS mm 3-18*150
MAX LOAD BEARING OF WORKTABLE kg 200
X/Y/Z AXIS TRAVEL mm 650/430/450
5-AXIS / 250
DISTANCE FROM SPINDLE NOSE TOWORKBENCH mm 150-600
SPINDLE HOLE TAPER BT40
SPINDLE SPEED RANGE r/min 10000
TRANSMISSION OF SPINDLE BOX
BELT/DIRECT
BELT/DIRECT
SPINDLE MOTOR POWER kW 7.5
X/Y/Z RAPID FEED SPEED m/min 36*36*24
MAX CUTTING FEED SPEED mm/min 10000
TOOLS MAGAZINE CAPACITY pcs 24
FULL TOOLS MAX TOOL DIAMETER mm 80
MAX.TOOLS ALLOWABLE WEIGHT kg 7
MAX.TOOLS ALLOWABLE LENGTH mm 200
X/Y/Z POSITION ACCURACY mm 0.008
X/Y/Z RE-POSITION ACCURACY mm 0.005
MACHINE DIMENSION mm 2300*2250*2450
MACHINE WEIGHT kg 4300

Standard Configuration for VMC Series

Full Cover shield / Self-lubrication system / Working lights / Warning lights / Working condition warning lights / Self-powered electrical shutoff system / Clean air gun/ Water Tank / Transformer / Spindle air curtain and dust control system / 10000 RPM spindle / Worktable cleaning water gun

Optional Configuration for VMC Series

24 disc manipulator tool magazine / Crawler chips remover / NC rotary table (4 Axis) / CTS / Tool detection system / AJO / 12000 & 15000 RPM Direct connection spindle / Oil mist purifier

Product Details

Multipurpose Machining Center 5 AxisMultipurpose Machining Center 5 Axis
