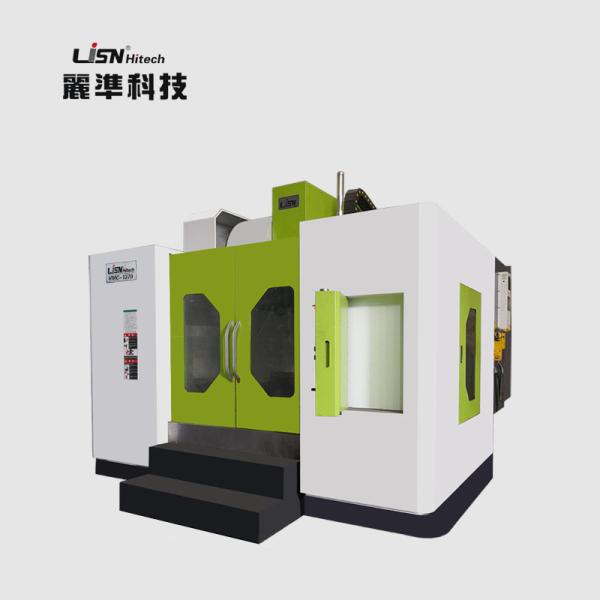

8000r/Min 5 Axis CNC Machining Center VMC 1370 BT50 Spindle Taper
8000r/Min 5 Axis CNC Machining Center VMC 1370 BT50 Spindle Taper
8000r/Min 5 Axis CNC Machining Center VMC 1370 BT50 Spindle Taper
8000r/Min 5 Axis CNC Machining Center VMC 1370 BT50 Spindle Taper
Specifications
Brand Name :
LiZhun
Model Number :
VMC
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
1000/years
Delivery Time :
30-45work days
Packaging Details :
Wooden box
Certification :
SGS
Type :
Vertical
Condition :
New
Spindle speed :
8000rpm
Machine type :
CNC Vertical Machining Center
Spindle taper :
BT50
Warranty :
1 Year
Product name :
5 Axis Vertical CNC Machining center VMC1370
Worktable size :
1370x700 mm
Description

VMC1370 CNC 5 Axis Vertical Machining Center High Speed And Efficiency

1.Product overview

Our machines find their position in the application of mold tooling and various metal parts processing. Plastic injection mold, die casting mold, forging dies, shell castings, pattern making, and blow mold are most suitable to our vertical machining centers. Metal like steel, stainless steel, Aluminum, Iron, and other material processing cannot be finished without our machines. Covering a wide range of industries including Mold-Making tooling room, or jig fixtures, fastening parts, automatic parts, retrofit, testing project, etc.

2.Main technical parameters

ITEM MODELS→ VMC1370 VMC1375 VMC1380 VMC1475

WORKTABLE(WIDTH*LENGTH) 		mm 700*1400 710*1400 800*1400 700*1500

DISTANCE BETWEEN T SLOTS		 mm 5-18*152.5 5-18*152.5 5-18*152.5 5-18*152.5

MAX LOAD BEARING OF WORKTABLE		 kg 900 1000 1000 1000

X/Y/Z AXIS TRAVEL		 mm 1300/700/750 1300/750/720 1300/800/650 1400/750/650
NDISTANCEFROMSPINDLE NOSE TOWORKBENCH mm 150-800 150-800 150-800 170-780

SPINDLE HOLE TAPER		 TB50 TB50 TB50 TB50

SPINDLE SPEED RANGE		 r/min 8000 8000 8000 8000

TRANSMISSION OF SPINDLE BOX
BELT/DIRECT
BELT/DIRECT
BELT/DIRECT
BELT/DIRECT
BELT/DIRECT

SPINDLE MOTOR POWER		 kW 15 15 15 15

X/Y/Z RAPID FEED SPEED		 m/min 24*24*18 16/16/16 16/16/16 24*24*18

MAX CUTTING FEED SPEED		 mm/min 1-10000 1-5000 1-5000 1-10000

TOOLS MAGAZINE CAPACITY		 pcs 24 24 24 24

FULL TOOLS MAX TOOL DIAMETER		 mm 240 240 240 240

MAX.TOOLS ALLOWABLE WEIGHT		 kg 15 15 15 15

MAX.TOOLSALLOWABLE LENGTH		 mm 305 305 305 305

X/Y/Z POSITION ACCURACY		 mm 0.008 0.008 0.008 0.008

X/Y/Z REPOSITIONACCURACY		 mm 0.005 0.005 0.005 0.005

MACHINE DIMENSION		 mm 3630*2600*2640 4535*3050*3100 4535*3050*3100 4535*3050*3100

MACHINE WEIGHT		 kg 10000 9500 9500 11800


3.Product details


8000r/Min 5 Axis CNC Machining Center VMC 1370 BT50 Spindle Taper

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 30-45days ,it is according to different machine model and different configuration and order quantity.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. Also we would like to do LC at sight.
