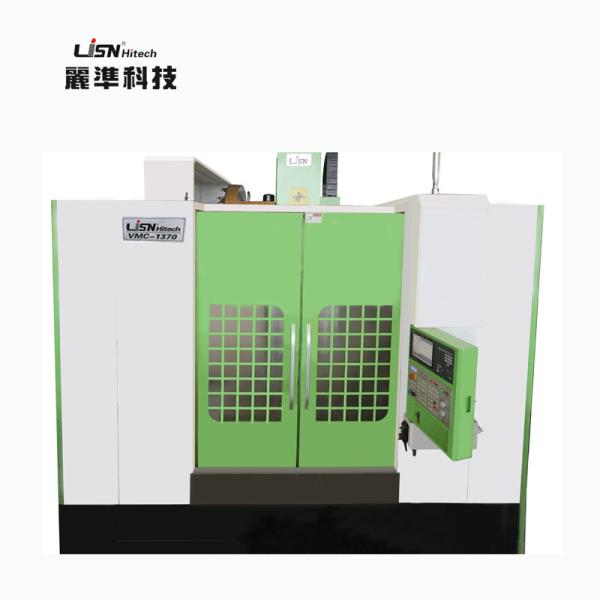

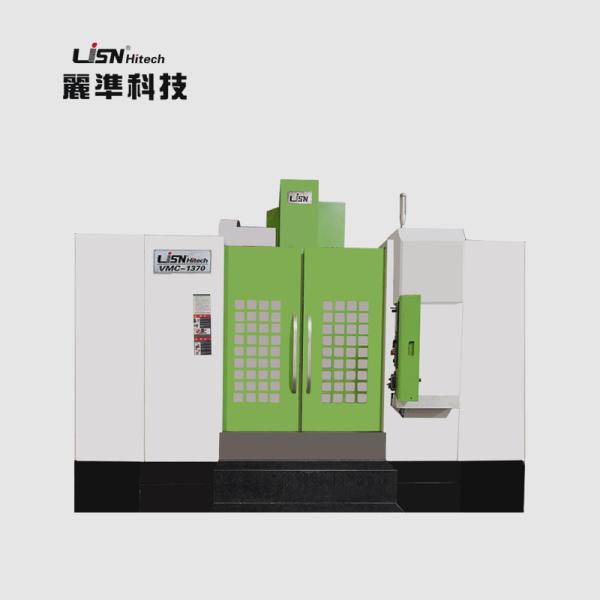

15KW DM 1370 5 Axis CNC Machining Center Multifunctional Anti Vibration
15KW DM 1370 5 Axis CNC Machining Center Multifunctional Anti Vibration
15KW DM 1370 5 Axis CNC Machining Center Multifunctional Anti Vibration
15KW DM 1370 5 Axis CNC Machining Center Multifunctional Anti Vibration
Specifications
Brand Name :
Li Zhun
Model Number :
DM-1370
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10000 per year
Delivery Time :
30-45 work days
Packaging Details :
Wooden Box
Certification :
SGS
Product Name :
5 Axis CNC Vertical Machining Center DM-1370
Condition :
New
Warranty :
1 year
Type :
Vertical
Axis :
5
Spindle Speed Range :
8000 RPM
Spindle Motor Power :
15kw
Description

DM-1370 High Precision 5 Axis CNC Vertical Machining Center High Rigidity

Product Description

The 5 axis CNC Vertical Machining Center features high rigidity, precision and high speed. The structure of the machine is reasonable, the structure strength is excellent, the body and the base are made of high quality materials, the overall rigidity of the machine is excellent. The mobile slide has been fully hardened and matched with precision grinding, both rigidity and precision are excellent. The machine is not only suitable for plate, shell, precision parts processing, but also suitable for mold processing. The machine has automatic tool exchange system, fully enclosed protective cover, automatic lubrication system, cooling system, chip removal device, and portable manual operation device.

Main Features

  • High rigidity of the machien and spindle
  • Excellent processing precision: ±0.003mm
  • Suitable for multiple materials processing: steel, iron and aluminum etc
  • Speed range of the spindle: 8000RPM
  • Maximum load capability: 1200kg

Main Technical Parameters

ITEM MODELS DM1370
WORKTABLE (WIDTH*LENGTH) mm 1400*700
DISTANCE BETWEEN T SLOTS mm 5*18*100
MAX LOAD BEARING OF WORKTABLE kg 1200
X/Y/Z AXIS TRAVEL mm 1300/700/650
5-AXIS /
DISTANCE FROM SPINDLE NOSE TOWORKBENCH mm 230-880
SPINDLE HOLE TAPER TB50
SPINDLE SPEED RANGE r/min 8000
TRANSMISSION OF SPINDLE BOX BELT/DIRECT BELT/DIRECT
SPINDLE MOTOR POWER kW 15
X/Y/Z RAPID FEED SPEED m/min 15/15/15
MAX CUTTING FEED SPEED mm/min 10000
TOOLS MAGAZINE CAPACITY pcs 24
FULL TOOLS MAX TOOL DIAMETER mm 125
MAX.TOOLS ALLOWABLE WEIGHT kg 15
MAX.TOOLS ALLOWABLE LENGTH mm 300
X/Y/Z POSITION ACCURACY mm 0.008
X/Y/Z RE-POSITION ACCURACY mm 0.005
MACHINE DIMENSION mm 2600*2350*2500
MACHINE WEIGHT kg 9600

15KW DM 1370 5 Axis CNC Machining Center Multifunctional Anti Vibration

Standard Configuration for DM Series

1. Full Cover shield

2. Self-lubrication system

3. Working lights

4. Warning lights

5. Working condition warning lights

6. M30 Self-powered electrical shutoff system

7. Clean air gun/ Water Tank

8.Transformer

9. Spindle air curtain and dust control system

10. Electric box heat exchanger

11.Worktable cleaning water gun

Optional Configuration for DM Series

1. NC rotary table (4 Axis)

2. CTS

3. Tool detection system

4. Automatic tool length measurement and damage detector

5. Three axis optical ruler

6,.Disc type oil-water separator

7. Crawler iron filings carrier

8. AJO
