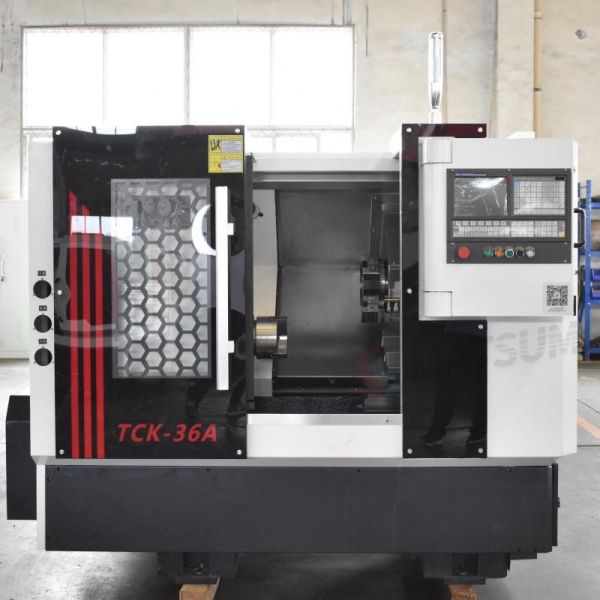

Economical 2-axis 4000rpm Slant-bed CNC Lathe TCK36A Horizontal Turning Center
Economical 2-axis 4000rpm Slant-bed CNC Lathe TCK36A Horizontal Turning Center
Economical 2-axis 4000rpm Slant-bed CNC Lathe TCK36A Horizontal Turning Center
Economical 2-axis 4000rpm Slant-bed CNC Lathe TCK36A Horizontal Turning Center
Economical 2-axis 4000rpm Slant-bed CNC Lathe TCK36A Horizontal Turning Center
Economical 2-axis 4000rpm Slant-bed CNC Lathe TCK36A Horizontal Turning Center
Economical 2-axis 4000rpm Slant-bed CNC Lathe TCK36A Horizontal Turning Center
Economical 2-axis 4000rpm Slant-bed CNC Lathe TCK36A Horizontal Turning Center
Economical 2-axis 4000rpm Slant-bed CNC Lathe TCK36A Horizontal Turning Center
Economical 2-axis 4000rpm Slant-bed CNC Lathe TCK36A Horizontal Turning Center
Specifications
Brand Name :
Matsumoto
Model Number :
TCK36A
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
11500-14500
Payment Terms :
T/T
Delivery Time :
40 working days
Packaging Details :
plywood case
Model No :
TCK36A
type :
Horizontal
number of axes :
2
Spindle speed :
4000rpm
warranty :
1 year
Swing over bed :
360mm
Description

Hot Sale Horizontal Turning Center Economical Cnc Lathe TCK36A Teach CNC Lathes


Description:

TCK36A is a high-rigidity 2-axis slant-bed CNC lathe designed for efficient machining of small-to-medium precision rotational parts. It combines 45° slant-bed ergonomics, Taiwanese linear guides, and a high-speed spindle for reliable, accurate mass production.


SPECIFICATIONS Units TCK36A
Swing over bed mm 360
Swing over cross slide mm 170
Distance between centers mm 300
Spindle bore mm 48
Bar capacity mm 40
Spindle speed steps - Stepless
Spindle nose type - A2-5
Spindle speed rpm 4000
Turret/tool post - 63-8T/12T
X axis travel mm 310
Z axis travel mm 350
X axis motor torque N.m 6
Z axis motor torque N.m 6
Main spindle motor kw 3.7
Hydraulic tailstock quill dia. mm 65
Hydraulic tailstock quill taper - MT4
Hydraulic tailstock travel mm 220
Hydraulic tailstock quill traverse mm 50
Guide rail type - Slant bed linear rail
Machine weight kg 2100
Overall dimension mm 2100*1450*1700


Construction & Rigidity


  • 45° slant bed with one-piece HT300 cast iron construction, delivering exceptional stability and vibration damping.
  • Taiwanese linear guides & pre-tensioned ball screws on X/Z axes for smooth, fast, and precise motion.
  • Compact footprint (~2,400 kg) ideal for small workshops and high-volume production lines.
