TCK40 Automatic CNC Turning Machine for Small‑Medium Batch Production
TCK40 Automatic CNC Turning Machine for Small‑Medium Batch Production
TCK40 Automatic CNC Turning Machine for Small‑Medium Batch Production
TCK40 Automatic CNC Turning Machine for Small‑Medium Batch Production
TCK40 Automatic CNC Turning Machine for Small‑Medium Batch Production
TCK40 Automatic CNC Turning Machine for Small‑Medium Batch Production
TCK40 Automatic CNC Turning Machine for Small‑Medium Batch Production
TCK40 Automatic CNC Turning Machine for Small‑Medium Batch Production
TCK40 Automatic CNC Turning Machine for Small‑Medium Batch Production
TCK40 Automatic CNC Turning Machine for Small‑Medium Batch Production
Specifications
Spindle end form :
A2-5
Certification :
CE
Max. bar diameter :
40mm
Model Number :
TCK40
Payment Terms :
T/T
Output power :
4kw
Price :
12500-15500
Delivery Time :
25 working days
Max. swing over bed :
350mm
MOQ :
1
Packaging Details :
plywood case
Max. processing length :
350mm
Place of Origin :
China
Spindle bore diameter :
48mm
Brand Name :
Matsumoto
Description

TCK40 Automatic CNC Turning Machine for Small‑Medium Batch Production

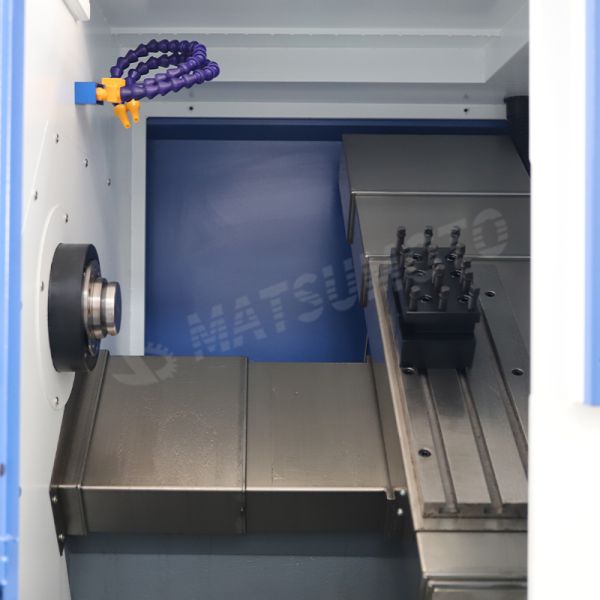

TCK40 is compact‑size 45‑degree slant‑bed CNC lathe with high‑strength integral cast iron bed. Equipped with high‑precision linear guideways and pre‑tensioned ball screws, it delivers stable rigidity and reliable machining accuracy. The inclined‑bed design realizes gravity chip removal, avoids chip stacking, easy for automation integration.Commonly used for small‑medium batch precision parts in auto parts, hydraulic fittings, electronics and general machinery industry.

Technical Specifications

PROJECT
UNIT
TCK40
Processing range
Max. swing over bed
mm
350
Max. processing diameter(axis/chuck)
mm
150/280
Max. processing length
mm
350
Max. bar diameter
mm
40
Travel
X axis travel
mm
700
Y axis travel
mm
320
Spindle
Out put power
kw
4
Spindle end form
/
A2-5
Spindel speed
m/min
0-3000
Spindle bore diameter
mm
48
Chuck
Pneumatic/Hydraulic chuck
Chuck(optional)
Tail Stock
Tail stock sleeve diameter/travel
mm
/
Tail stock sleeve taper hole
Morse
/
Guide Rail Screw
Guide rail specifications
mm
30
Screw specifications
mm
2510/3210
Speed
Fast moving speed(X/Z)
m/min
20/24
Cutting feed speed
mm/min
1-8000

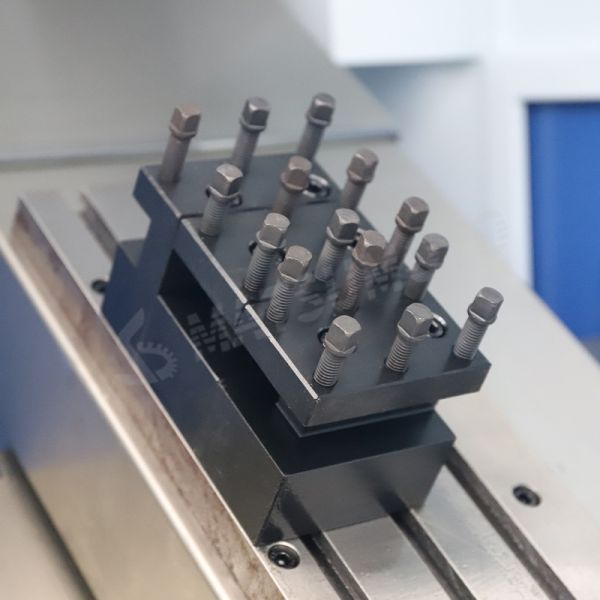

Tool Post
Tool post form
/
Row tool
Blade size
mm
20
Tool capacity
set
8
Max.boring tool diameter
mm
20
Machine Accuracy
Positioning accuracy(X axis)
mm
0.006
Positioning accuracy(Z axis)
mm
0.008
Repeat positioning accuracy(X axis)
mm
0.004
Repeat positioning accuracy(Z axis)
mm
0.004
Others
Distance from the ground to the centerline of the spindle
mm
105
Volume of cutting fluid tank
L
60
Overall dimension
mm
1600*1400*1600
Gross weight
kg
1200

Core Advantages

  • Compact High‑rigidity Cast Iron Slant Bed 45° one‑piece cast iron bed with stress‑relief treatment, strong anti‑vibration performance during cutting. Pre‑tensioned ball screws and linear guideways guarantee consistent machining precision and good repeat positioning accuracy.

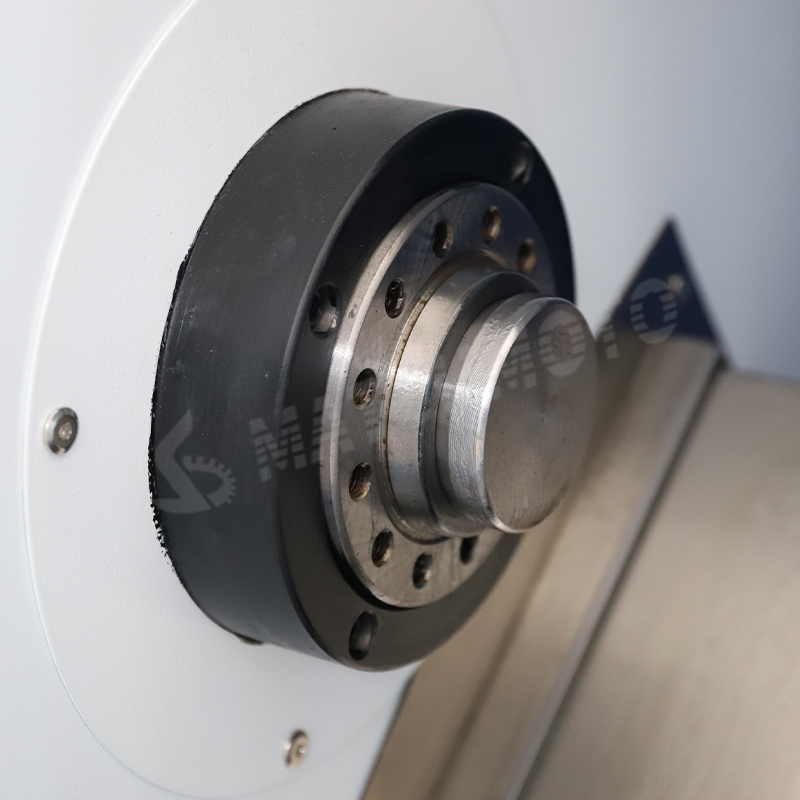

  • Cost‑effective High‑performance Spindle Unit A2‑5 high‑rigidity spindle, max 3500rpm, provides sufficient torque for both rough turning and fine finishing. Works well for steel, stainless steel, aluminum and copper components.
  • Small Footprint & Low Maintenance Compact layout saves workshop space. Full‑enclosed guard plus automatic centralized lubrication system reduce wear and daily maintenance workload.
  • Flexible Composite Machining Solution Complete standard turning tasks. Optional power turret, Y‑axis, C‑axis and sub‑spindle realize turn‑milling composite functions. One‑clamp multi‑process improves part consistency and production efficiency.

Target Applications

  • Automotive & Motorcycle: Shaft parts, flanges, small valve components and precision hardware.
  • Hydraulic & Pneumatic Industry: Sleeves, pistons, valve bodies and hydraulic fittings.
  • Electronics & Instrument: Medium‑small rotary parts of aluminum, copper and alloy.

Frequently Asked Questions (FAQ)

1:How can I choose the most suitable machines?

A: Please tell me your specifications ,we can choose the best model for you , or you choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?

A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Machining Center ,Grinding
Machines,Milling Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: What about the quality of the machine?and after-sales service?

A : Our machine warranty period is 3 years,and we provide free technical service.

4. What is your trade terms?

A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .

6: What's the MOQ?

A: 1 set .(Only some low cost machines will be more than 1 set )
