Specifications
Brand Name :
Matsumoto
Model Number :
TCK4645Y
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$18500-21000
Payment Terms :
T/T
Delivery Time :
15 working days
Packaging Details :
plywood case
Swing over bed :
460mm
Swing over cross slide :
260mm
Max. turning diameter :
200mm
X axis travel :
500mm
Z axis travel :
600mm
Spindle nose type :
A2-6
Description

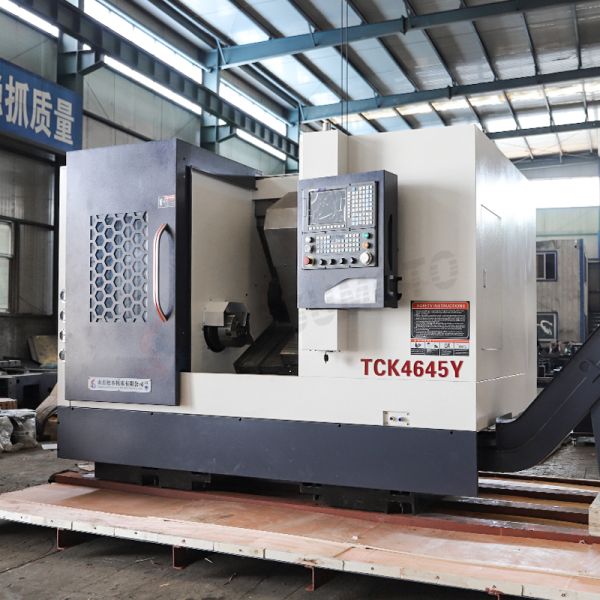

TCK4645Y Slant Bed Turning Center High Speed CNC Automatic Lathe Machine

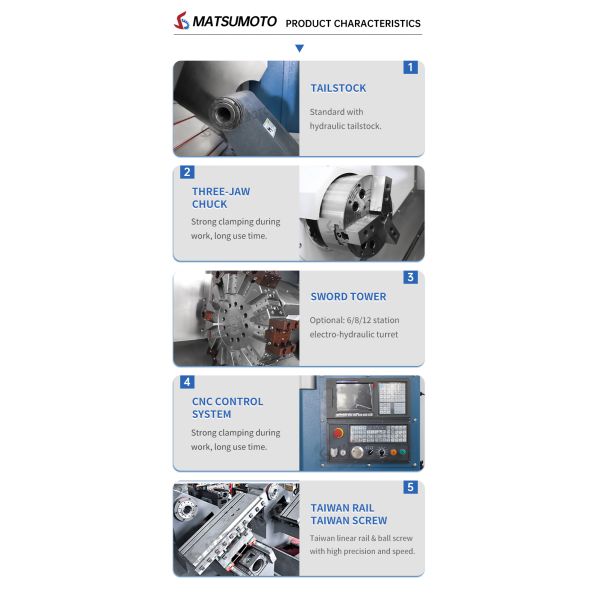

Features:
1. 30 degrees slant bed CNC lathe,higher accuracy Taiwan linear.
2. Chip conveying capacity is large and convenient, customer could choose chip conveying in the front or in the back.
3. Screw pre-stretching structure.
4. 12 station servo tools tower. With 12-station turret (optional live tooling), it completes multi-process machining in one clamping, reducing errors and improving efficiency by 30%-50%.

Usages:

The TCK4645Y is mainly used for batch processing of precision rotary parts (disc, sleeve, shaft types). With 12-station turret (optional live tooling), it can complete multiple processes in one clamping, including turning, milling, drilling, threading, grooving and parting. It is easy to operate with CNC system, suitable for mass production with high precision requirements.

SPECIFICATIONS
Units
TCK4645Y
Swing over bed
mm
460
Swing over cross slide
mm
260
Max. turning diameter
mm
200
Max. drilling diameter
mm
U-type Φ20
Max. Process length
mm
400
X axis travel
mm
500
Z axis travel
mm
600
Spindle speed range
rpm
50-4000
Spindle bore
mm
56
Spindle nose type
-
A2-6
Spindle speed steps
-
Stepless
Through the bar diameter
mm
45
Spindle center to bed height
mm
600
Spindle center to ground height
mm
1250
Max. travel of tailstock
mm
100
Tailstock diameter
mm
60
Tailstock taper
mm
MT5
X axis rapid traverse
m/min
20
Z axis rapid traverse
m/min
20
Chuck form
-
Hydraulic chuck
Chuck size
inch
8inch 200mm
Tools tower
-
12 station servo tools tower
Main spindle motor
kw
7.5
Machine weight
kg
3500
Overall dimension
mm
2180*1450*1800
