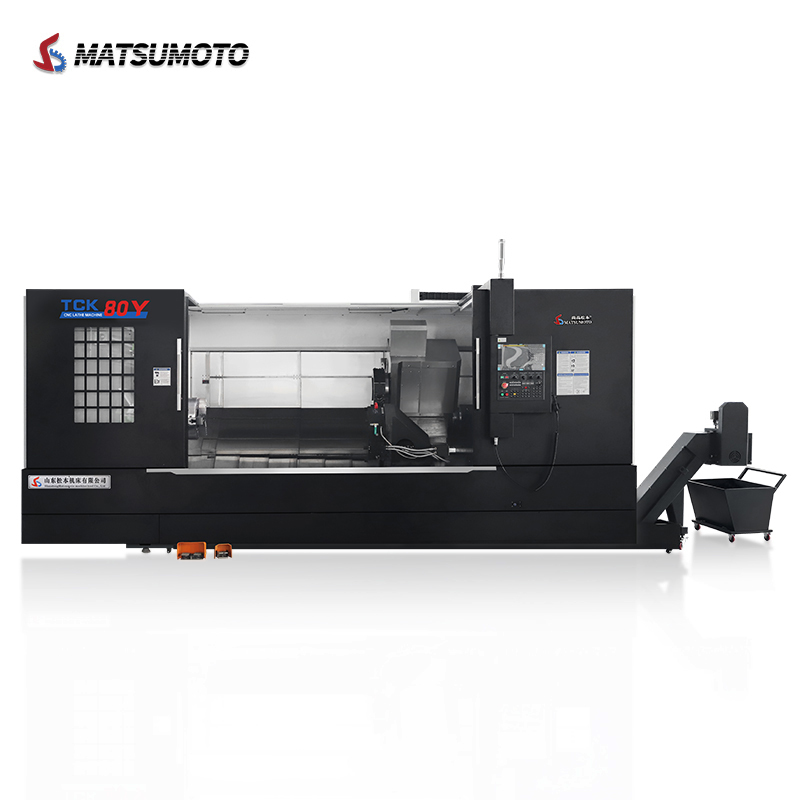

• TCK80Y is a heavy‑duty slant‑bed CNC turn‑mill center equipped with interpolated Y‑axis and C‑axis spindle function.
• It adopts high‑strength integrated cast‑iron 45° slant bed, finished with secondary aging treatment to eliminate internal stress for stable long‑term running.
• Max swing over bed reaches 800 mm, maximum cutting diameter 600 mm; Y‑axis travel ±50 mm supports complex off‑center machining.
• Fitted with 12‑station BMT65 live‑tool turret, which holds turning tools, milling cutters, drill bits and tap holders for multi‑task processing.
• Complete one‑setup operations including turning, milling, drilling, tapping, slotting and keyway processing, avoiding repeated clamping errors.

Technical Specifications

Core Advantages

• Integrated Y‑axis & C‑axis function: Realizes eccentric milling, radial drilling and off‑center tapping without secondary clamping.
• Heavy‑duty cast‑iron slant‑bed structure: Great rigidity and vibration resistance for heavy‑load cutting and consistent part accuracy.
• 12‑station live‑tool hydraulic turret: Short tool‑change time, rich tool‑mounting capacity for complex‑feature parts.
• Roller linear guideways on X/Z/Y axes: Fast feed speed, low friction, good positioning and repeat‑positioning accuracy.

Target Applications

• Automobile & new‑energy industry: Drive shafts, gear shafts, steering pins, sensor joints, various complex shaft‑type components.
• Hydraulic & pneumatic component manufacturing: Valve spools, cylinder joints, flanges, eccentric shafts with radial holes and slots.
• Engineering machinery field: Large‑size pins, connecting shafts, hub parts and heavy‑duty shaft‑class workpieces.
• Mold & hardware processing: Mold shafts, eccentric pins, special‑shape rolling shafts and high‑precision shaft‑and‑sleeve parts.
• General mechanical processing: Complex shaft‑and‑disk parts requiring turning, milling, drilling and tapping mixed processes.
