Specifications
Delivery Time :
25 working days
Max cutting diameter :
450mm
Model Number :
TCK56Y
X/Z rapid traverse :
20/20 m/min
MOQ :
1
Packaging Details :
plywood case
Payment Terms :
T/T
X, Z feed rate :
0~5000 mm/min
Price :
25500-30500
Maximum cutting length :
1000mm with power tower 1100mm with servo tower
Certification :
CE
Max.swing over bed :
630mm
Brand Name :
Matsumoto
X/Z axis max. travel :
280/1200(Effective processing length 1000)
Place of Origin :
China
Description
TCK56Y CNC Turning Milling Center with Y/C Axis One-Clamp Complete Machining

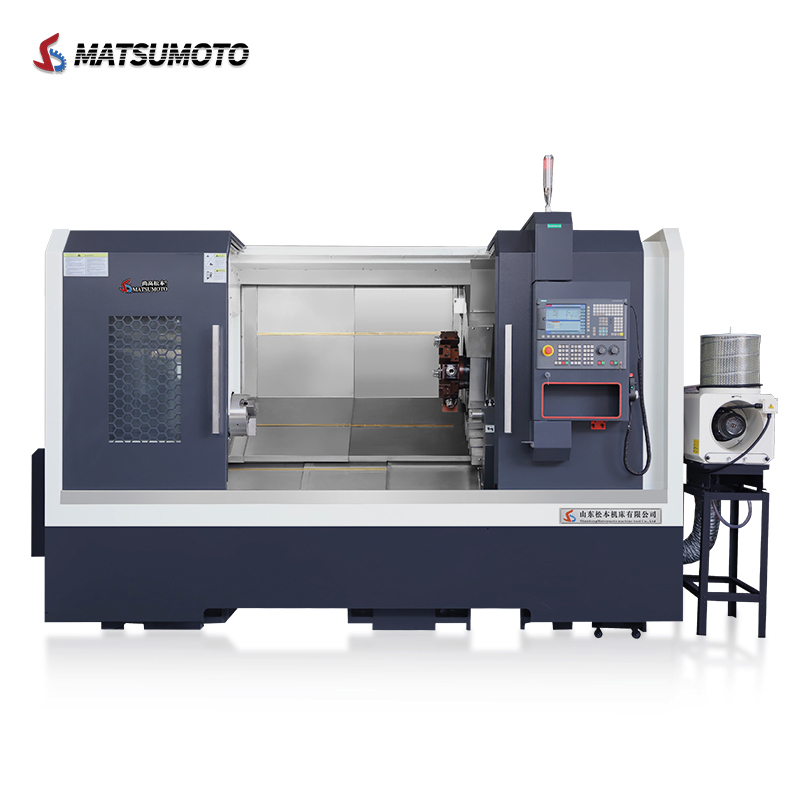

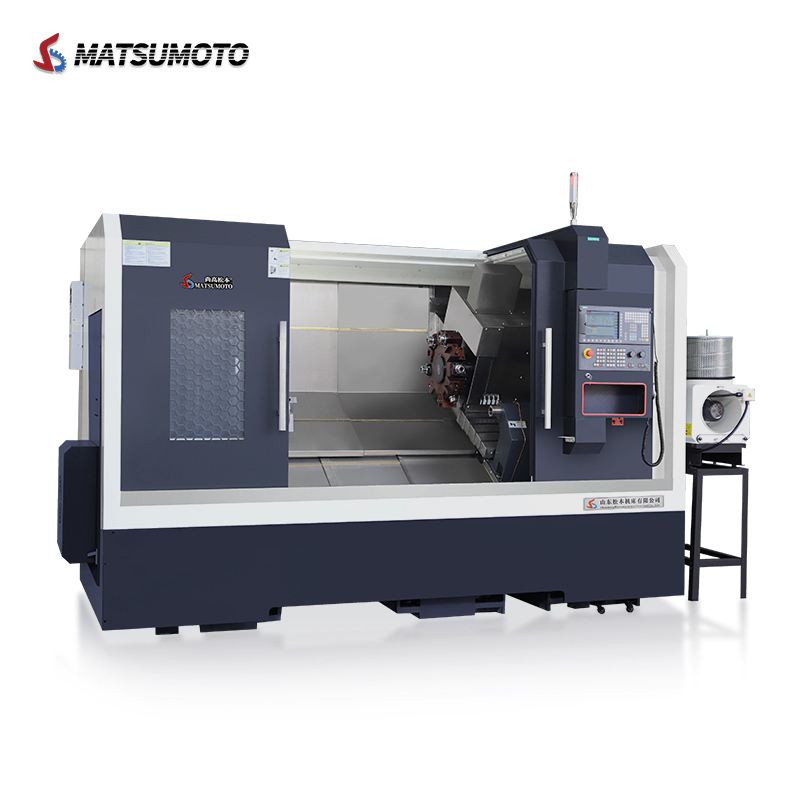

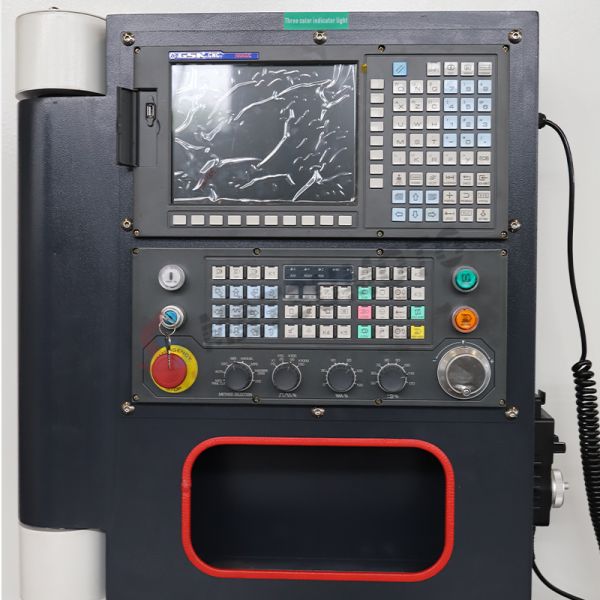

TCK56Y is a 45° slant-bed Y-axis turn-mill composite CNC lathe with X/Y/Z/C 4-axis simultaneous control, built on rigid HT300 cast iron one-piece bed. It is equipped with a 12-station power turret, hydraulic chuck, optional servo programmable tailstock, and optional FANUC/GSK CNC system. Y-axis travel: ±30 mm (some versions ±50 mm); C-axis supports arbitrary indexing. It combines turning, milling, drilling, boring, tapping, slotting, flat milling and polygonal machining, to finish part features on OD, ID, end face and side face in one single clamping.

Specifications
Specification Unit TCK56Y-1000
Max.swing over bed mm 630mm
Max cutting diameter mm 450mm
Maximum cutting length mm

1000mm with power tower

1100mm with servo tower
X/Z axis max. travel mm 280/1200(Effective processing length 1000)
X/Z rapid traverse m/min 20/20
Hand wheel - 0.001/0.01/0.1
X, Z feed rate mm/min 0~5000
X and Z manual feed speed mm/min 0~1260
X/Z axis servo motor torque N.m 15/15
X/Z axis position accuracy mm 0.008/0.008
X/Z axis reposition accuracy mm 0.005/0.006
Y axis travel mm ±50
Y axis motor N.m 10
Max.spindle speed r/min 10-3000
Max. spindle torque N.m 100
Spindle nose - A2-6
Spindle bore mm 66
Max. Bar capacity mm 52
Spindle shift mode - stepless

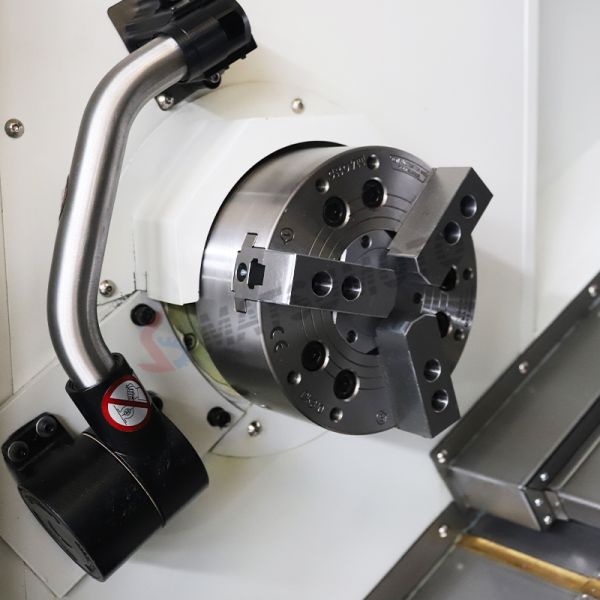

Chuck - 8’’ hollow hydraulic

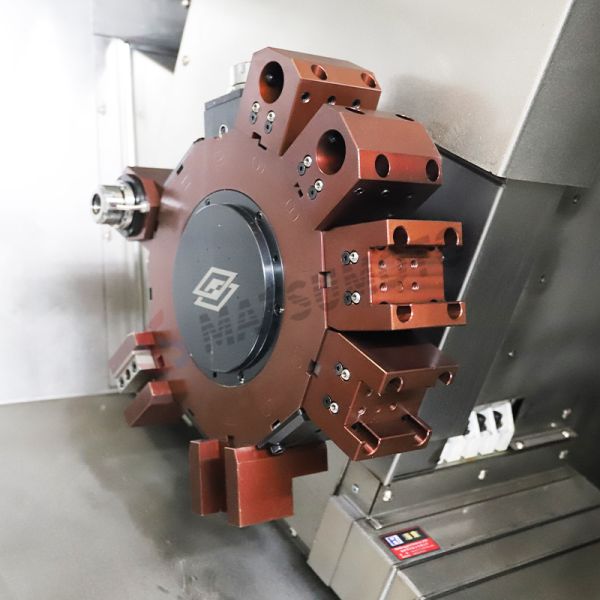

Tool post type - 12 station hydraulic turret LQD100 BMT55
Tool post size mm 25*25m
Spindle motor power kw 11
Tailstock travel mm 900
Tailstock taper - MT5
Guide form - 30° degree
Weight kg 4200
Machine dimensions mm 3050*2100*2350
Advantages
  1. High machining accuracy

    Single-setup production eliminates re-clamping errors; better concentricity, position tolerance and consistent batch quality.

  2. Strong rigidity & stable cutting

    45° integral slant cast bed, good vibration resistance, suitable for both heavy turning and precision milling; chip removal is smooth with no chip accumulation.

  3. High efficiency & shorter cycle time

    Reduces repeated fixturing, manual handling and machine-to-machine transfer; one machine replaces ordinary CNC lathe + milling machine.
