Specifications
Brand Name :
Matsumoto
Model Number :
TCK80Y
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
32500-40000
Payment Terms :
T/T
Delivery Time :
30 working days
Packaging Details :
plywood case
Swing over bed :
800mm
Max. workpiece length :
1000/1500/2000/3000mm
Max. cutting diameter :
600mm
Spindle bore :
80mm
Chuck :
12'' Hollow hydraulic chuck
Tailstock quill taper :
MT6
Description

TCK80Y Heavy Duty Slant Bed CNC Lathe Metal Processing CNC Turning and Milling Machine


Description:

TCK80Y CNC Turning-Milling Machine is a heavy-duty, high-precision slant-bed CNC lathe with integrated Y-axis milling capability, designed for complex, multi-process machining in a single setup.


SPECIFICATIONS
Units
TCK80Y
Swing over bed
mm
800
Max. workpiece length
mm
1000/1500/2000/3000
Max. cutting diameter
mm
600
Spindle bore
mm
80
Spindle nose type
-
A2-11(A2-8)
Spindle speed steps
-
Stepless
Spindle speed range
rpm
2000(3000)
Chuck
-

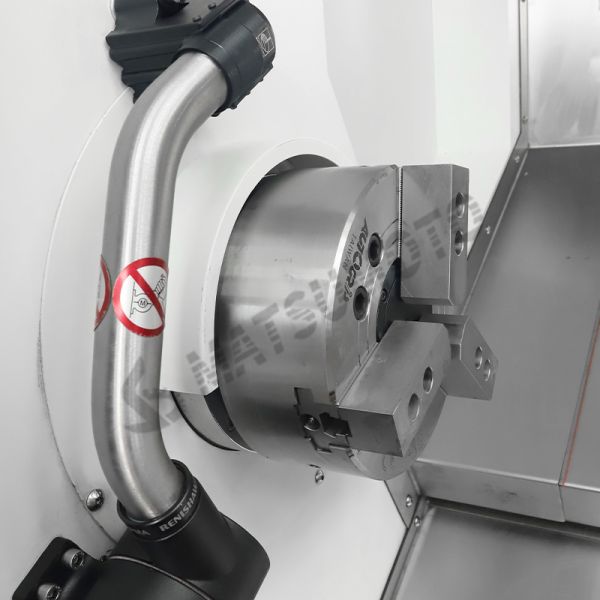

12'' Hollow hydraulic chuck
X axis travel
mm
350
Y axis travel
mm
±50
Z axis travel
mm
900/1400/1900/2900
X axis rapid traverse
mm/min
12
Y axis rapid traverse
mm/min
12
Z axis rapid traverse
mm/min
16
Main motor power
kw
18.5(Opt.37)
Turret type

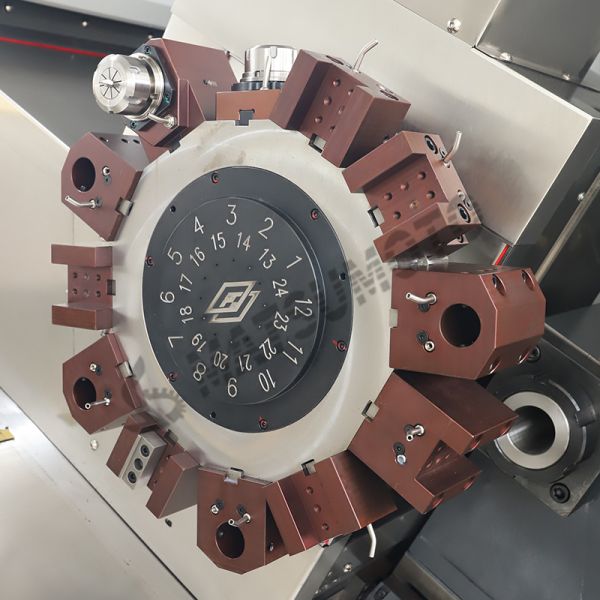

12 Position Live turret
Turret Model

BMT65-ER32
Tailstock quill taper
-
MT6
Tailstock base travel
mm
900/1400/1900/2900
Machine weight
kg
7000/8000/9000/11000

Key Features:

30° Slant Bed Structure: One-piece cast iron bed offering superior rigidity, stability, and efficient chip removal.

  • Y-axis Function: Enables off-center milling, drilling, and tapping operations on cylindrical surfaces.


Core Capabilities:
  • Turning: External / internal diameters, faces, tapers, contours, and threads.
  • Milling: Keyways, flats, polygons, grooves, and profiles on the circumference or face.
  • Drilling & Tapping: Radial and axial holes, cross holes, and threaded holes.
