Automatic TCK80Y Slant Bed CNC Lathe Precision Metal Turning Center CE Certified
Automatic TCK80Y Slant Bed CNC Lathe Precision Metal Turning Center CE Certified
Automatic TCK80Y Slant Bed CNC Lathe Precision Metal Turning Center CE Certified
Automatic TCK80Y Slant Bed CNC Lathe Precision Metal Turning Center CE Certified
Automatic TCK80Y Slant Bed CNC Lathe Precision Metal Turning Center CE Certified
Automatic TCK80Y Slant Bed CNC Lathe Precision Metal Turning Center CE Certified
Automatic TCK80Y Slant Bed CNC Lathe Precision Metal Turning Center CE Certified
Automatic TCK80Y Slant Bed CNC Lathe Precision Metal Turning Center CE Certified
Automatic TCK80Y Slant Bed CNC Lathe Precision Metal Turning Center CE Certified
Automatic TCK80Y Slant Bed CNC Lathe Precision Metal Turning Center CE Certified
Automatic TCK80Y Slant Bed CNC Lathe Precision Metal Turning Center CE Certified
Automatic TCK80Y Slant Bed CNC Lathe Precision Metal Turning Center CE Certified
Specifications
Brand Name :
Matsumoto
Model Number :
TCK80Y
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$35000-45000
Payment Terms :
T/T
Delivery Time :
35 Working days
Packaging Details :
plywood case
Model NO. :
TCK80Y
Max. Swing Over Bed :
460mm
Condition :
NEW
Voltage :
380V,220V/Customer's Requirement
Cnc or not :
CNC
Automatic grade :
Automatic
Warranty :
1 Year
Control system :
GSK FANUC
Function :
Machining Metal,lathe turning,Metal Turning
Description

TCK80Y CE Certified Slant Bed CNC Lathe Automatic Precision Metal Turning Center


Features:

1. 30 degrees slant bed CNC lathe,higher accuracy Taiwan linear.
2. Chip conveying capacity is large and convenient, customer could choose chip conveying in the front or in the back.
3. Screw pre-stretching structure.
4. 12 station servo tools tower.


SPECIFICATIONS
Units
TCK80Y
Swing over bed
mm
800
Max. workpiece length
mm
1000/1500/2000/3000
Max. cutting diameter
mm
600
Spindle bore
mm
80
Spindle nose type
-
A2-11(A2-8)
Spindle speed steps
-
Stepless
Spindle speed range
rpm
2000(3000)
Chuck
-
12'' Hollow hydraulic chuck
X axis travel
mm
350
Y axis travel
mm
±50
Z axis travel
mm
900/1400/1900/2900
X axis rapid traverse
mm/min
12
Y axis rapid traverse
mm/min
12
Z axis rapid traverse
mm/min
16
Main motor power
kw
18.5(Opt.37)
Turret type

12 Position Live turret
Turret Model

BMT65-ER32
Tailstock quill taper
-
MT6
Tailstock base travel
mm
900/1400/1900/2900
Machine weight
kg
7000/8000/9000/11000


Application:
Machine can automatically process the inside cylinder surface ,cone surface, circular arc surface ,end face,such as processing,and also can process the single and multiple threads in metric ,inch and other standards.


Automatic TCK80Y Slant Bed CNC Lathe Precision Metal Turning Center CE Certified

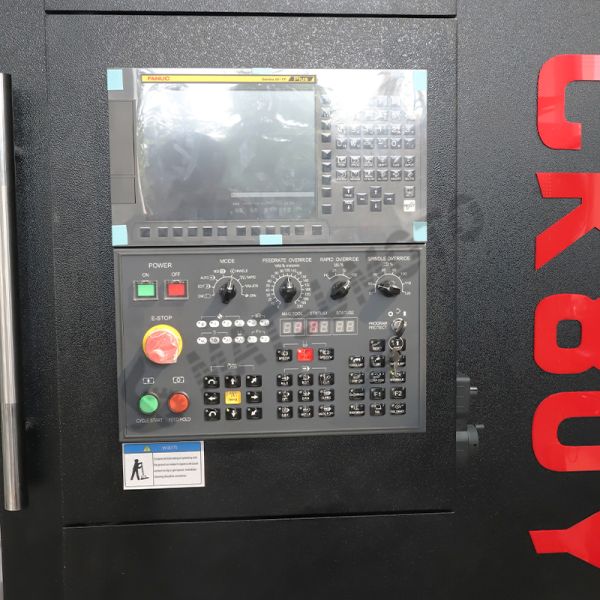

 CNC CONTROL SYSTEM

Standard:GSK
Optional:FANUC/MISUBISHI etc.

Automatic TCK80Y Slant Bed CNC Lathe Precision Metal Turning Center CE Certified

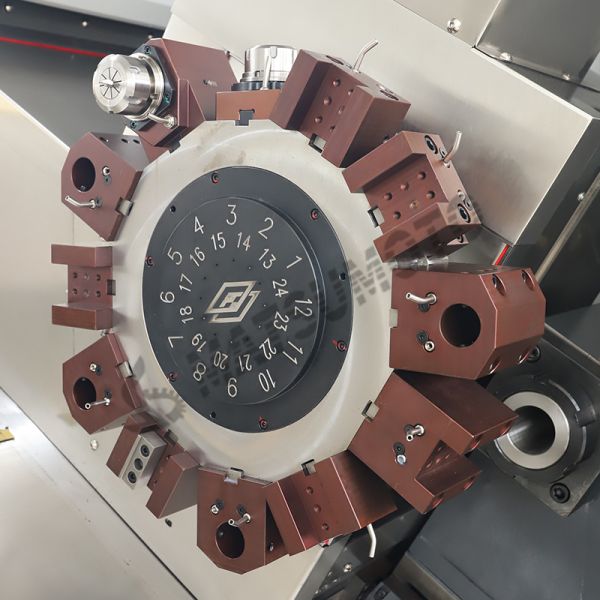

 POWER TURRET

High positioning accuracy,

stable and reliable, simple

structure, convenient

maintenance.

Automatic TCK80Y Slant Bed CNC Lathe Precision Metal Turning Center CE Certified

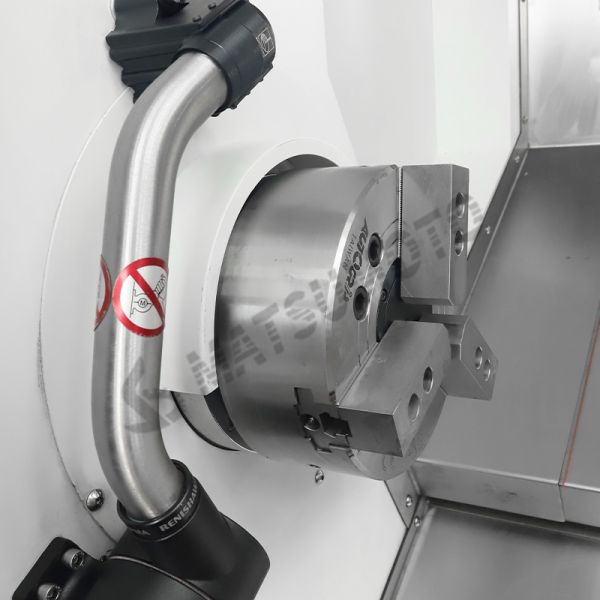

 THREE-JAW CHUCK

Strong clamping during

work,Long service life.

Automatic TCK80Y Slant Bed CNC Lathe Precision Metal Turning Center CE Certified

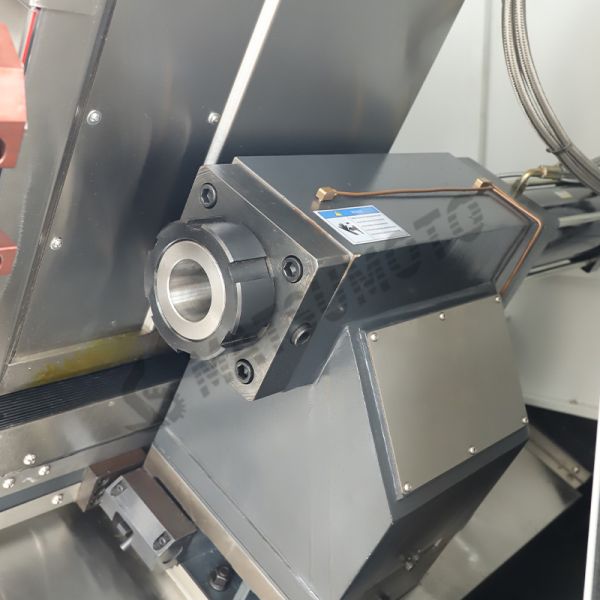

 TAILSTOCK

The tailstock is divided into fast locking, which is convenient and quick to use.
