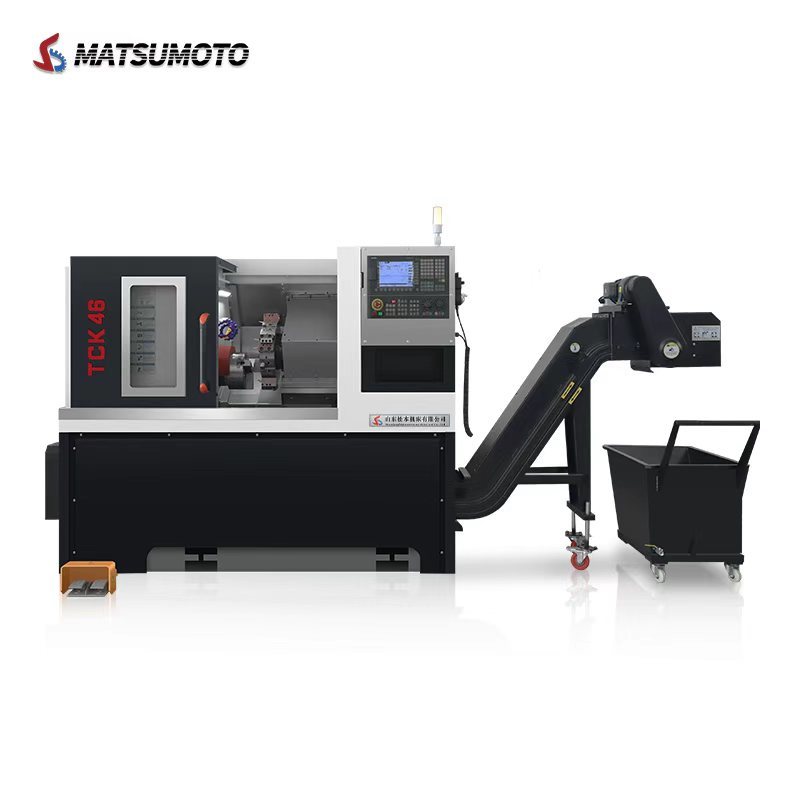

High Precision TCK46 Slant Bed CNC Turning Center CNC Slant Bed Lathe

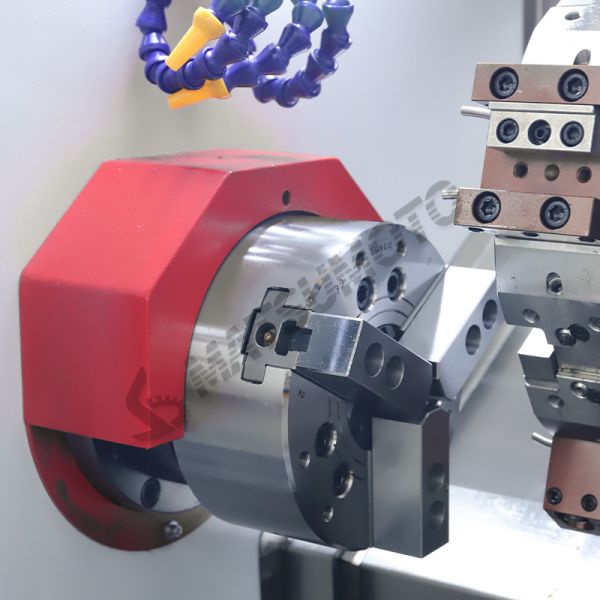

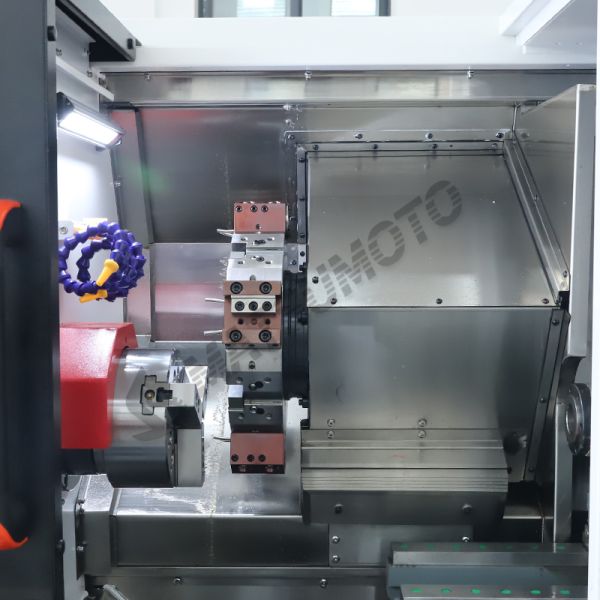

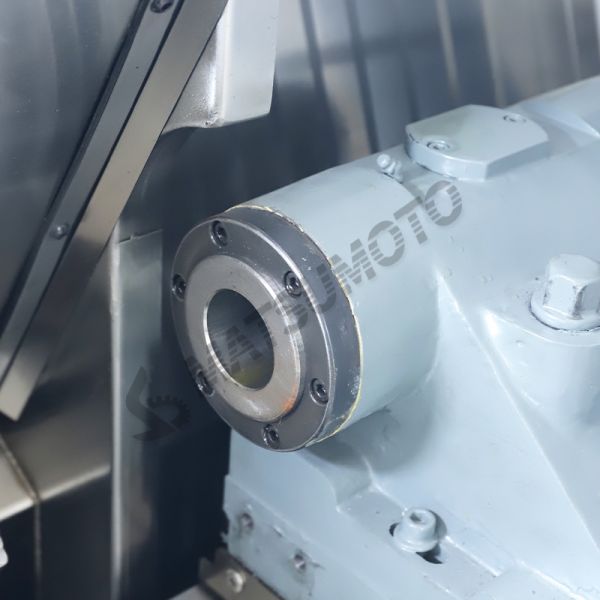

The TCK46 slant bed CNC lathe is a high-precision turning center built on a one-piece 45° inclined cast iron bed, delivering exceptional rigidity, stable chip evacuation and effortless coolant flow. With a 460 mm swing over bed, 260 mm swing over cross slide, 350 mm machining length and a 7.5 kW servo spindle reaching up to 3,500 rpm, it handles small to medium shafts and flange-type disc parts with outstanding efficiency. Equipped with a hydraulic chuck, hydraulic tailstock, 8-station servo turret and precision linear guideways, the TCK46 completes complex turning operations in a single clamping, achieving repeatability of ±0.003 mm. Fully enclosed stainless steel guarding with full CNC control (GSK / Fanuc optional) makes it the ideal choice for automotive, hydraulic and general machinery production lines.

Technical Specifications

Core Advantages

• 45° Inclined Bed Design – One-piece cast iron structure maximizes rigidity and damping; chips and coolant drain naturally, keeping the machining zone clean and reducing thermal deformation.
• ±0.003 mm Repeatability – Precision linear guideways and hardened ground ballscrews ensure stable, consistent accuracy batch after batch.
• High-Speed Servo Spindle – 7.5 kW servo motor drives up to 3,500 rpm, balancing powerful metal removal with fine surface finish.

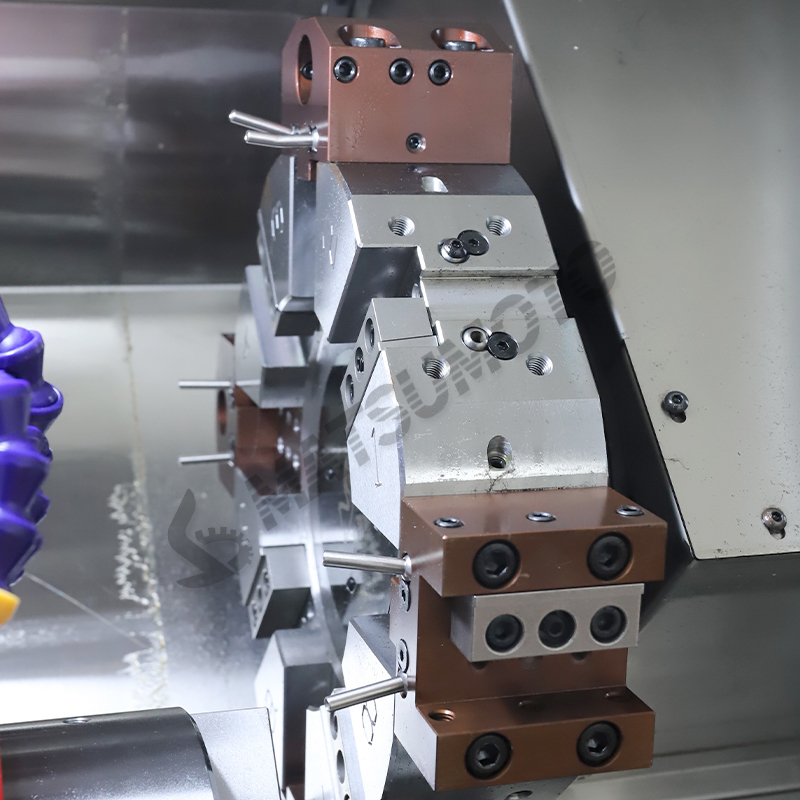

• Single-Clamping Complete Machining – 8-station servo turret (with optional power tools) enables turning, drilling and boring in one setup, cutting cycle time and part handling.

Target Applications

• Automotive parts – wheel hubs, brake discs, transmission shafts, pistons, valve seats
• Hydraulic & pneumatic components – pump bodies, valve spools, cylinder parts
• General machinery – flanges, gear blanks, pulleys, lead screws, coupling sleeves
• Shaft & disc families – stepped shafts, bushing blanks, plate-type workpieces up to 400 mm
• Aerospace & precision fitting – small precision revolving parts with tight tolerance requirements
