Specifications
Brand Name :
Matsumoto
Model Number :
TCK50
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
12000$-13500$
Payment Terms :
T/T
Delivery Time :
20 working days
Packaging Details :
plywood case
Cnc Or Not :
Cnc
Z-Axis Travel :
600 mm
Model No :
TCK50
Spindle Speed :
3000 RPM
Key Selling Points :
Automatic
Tool Post :
8T/12T
Description

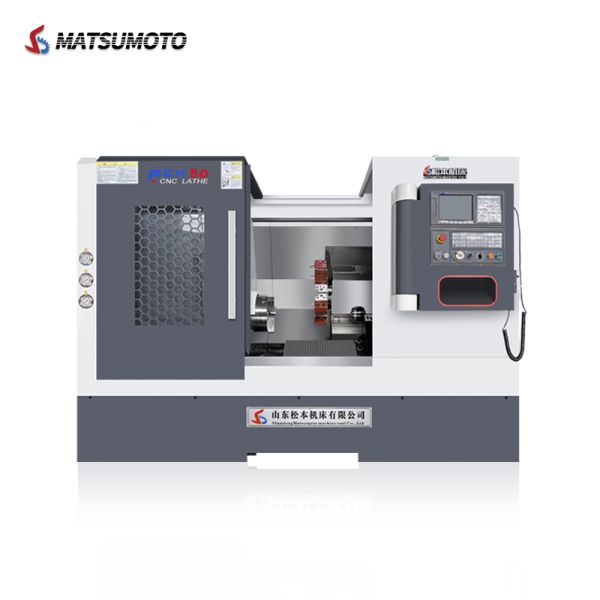

TCK50 High Quality CNC Turning Machine Slant Bed CNC Lathe with Live Tooling

TCK50 is a high-performance CNC lathe, widely used in auto parts, mechanical manufacturing, aerospace and hardware industries for precision machining of shaft, disc and sleeve parts.


SPECIFICATIONS
Units
TCK50
Swing over bed
mm
500
Swing over cross slide
mm
260
Distance between centers
mm
350/500
Spindle bore
mm
66
Bar capacity
mm
55
Spindle speed steps
-
Stepless
Spindle nose type
-
A2-6
Spindle speed
rpm
3000
Turret/tool post
-
100-8T/12T
X axis travel
mm
240
Z axis travel
mm
600
X axis motor torque
N.m
7.5/10
Z axis motor torque
N.m
7.5/10
Main spindle motor
kw
7.5/11
Hydraulic tailstock quill dia.
mm
70
Hydraulic tailstock quill taper
-
MT5
Hydraulic tailstock travel
mm
200/450
Hydraulic tailstock quill traverse
mm
80
Guide rail type
-
Slant bed linear rail
Machine weight
kg
2800/3000
Overall dimension
mm
2500x1700x1890



Standard Configuration:
Taiwan higher accuracy linear guide ways
Taiwan ball screw
Hydraulic magazine
Taiwan hydraulic chuck
Hydraulic tailstock
Taiwan hollowed rotary cylinder
8 station hydraulic turret		 Optional Configuration:
1.NC System: KND1000Ti, Fanuc Oi Mate-T
2.Main Motor: Servo 11/15 KW
3.Turret: 8 station electric turret
4.Chuck: 8″Non-through hole hydraulic chuck
5.8″Non-through hole hydraulic chuck (Taiwan)
6.8″through hole hydraulic chuck(Taiwan)
7.10″Non-through hole hydraulic chuck
8.10″through hole hydraulic chuck(Taiwan)
9.Chip conveyor
10.Steady Rest
11.Without tailstock
12.Inverter 11 KW


Application:

High precision, strong rigidity, high efficiency, easy operation, compact structure, reliable performance and low maintenance cost.

Usages:
Precision turning (outer diameter, inner hole, thread, etc.) of steel, stainless steel, copper and aluminum alloy; suitable for mass production and single-piece precision manufacturing.
