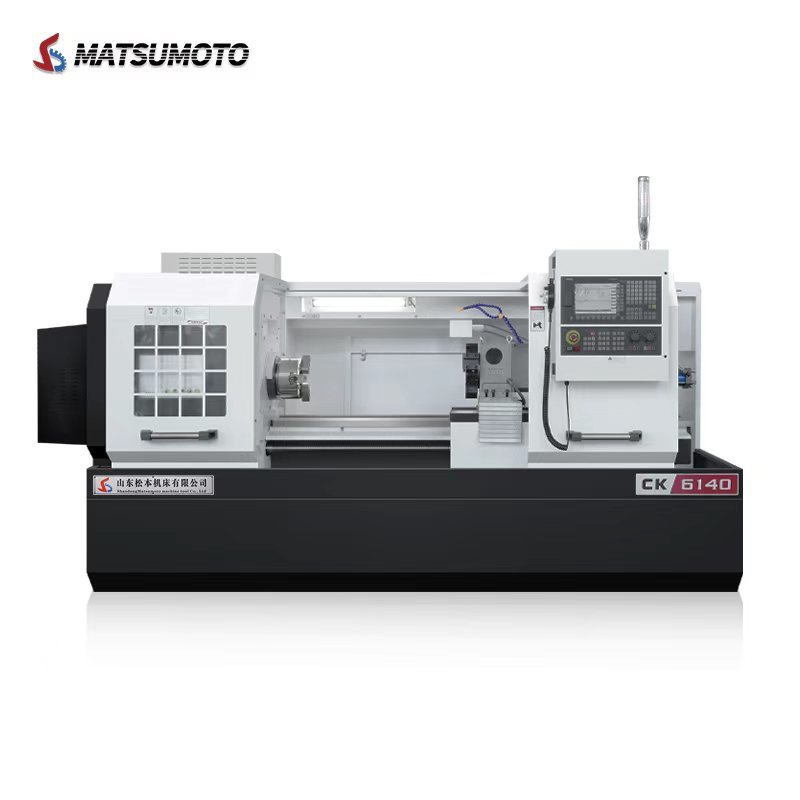

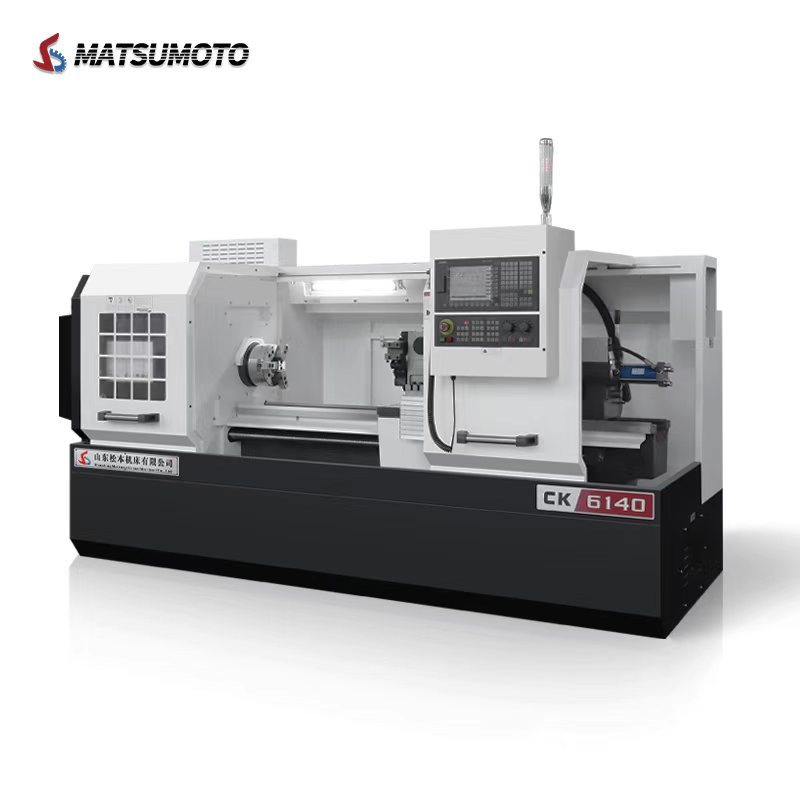

Ck6140 CNC Lathe Horizontal Flat Bed 2 Axis High Precision Metal Turning Lathe Machine
Ck6140 CNC Lathe Horizontal Flat Bed 2 Axis High Precision Metal Turning Lathe Machine
Ck6140 CNC Lathe Horizontal Flat Bed 2 Axis High Precision Metal Turning Lathe Machine
Ck6140 CNC Lathe Horizontal Flat Bed 2 Axis High Precision Metal Turning Lathe Machine
Ck6140 CNC Lathe Horizontal Flat Bed 2 Axis High Precision Metal Turning Lathe Machine
Ck6140 CNC Lathe Horizontal Flat Bed 2 Axis High Precision Metal Turning Lathe Machine
Ck6140 CNC Lathe Horizontal Flat Bed 2 Axis High Precision Metal Turning Lathe Machine
Ck6140 CNC Lathe Horizontal Flat Bed 2 Axis High Precision Metal Turning Lathe Machine
Ck6140 CNC Lathe Horizontal Flat Bed 2 Axis High Precision Metal Turning Lathe Machine
Ck6140 CNC Lathe Horizontal Flat Bed 2 Axis High Precision Metal Turning Lathe Machine
Ck6140 CNC Lathe Horizontal Flat Bed 2 Axis High Precision Metal Turning Lathe Machine
Ck6140 CNC Lathe Horizontal Flat Bed 2 Axis High Precision Metal Turning Lathe Machine
Specifications
Model Number :
CK6140
Spindle nose :
A2-6
MOQ :
1
Packaging Details :
plywood case
Price :
11500-18500
Payment Terms :
T/T
X axis travel :
240mm
Delivery Time :
20 working days
Max. Swing Dia. :
200mm
Certification :
CE
Max. Swing over bed :
400mm
Chuck size :
200mm
Place of Origin :
China
Brand Name :
Matsumoto
Max. Processing length :
750/1000/1500mm
Description
Ck6140 CNC Lathe Horizontal Flat Bed 2 Axis High Precision Metal Turning Lathe Machine
Features
  • Four-station electric knife holder
  • Frequency stepless speed regulation
  • Standard configuration: manual chuck
  • Choose configuration: spring collet, hydraulic chuck, Automatic feeding device, row knife holder.
Technical Specifications
PROJECT UNIT CK6140
Max. Swing over bed mm 400
Max. Swing Dia.over slide mm 200
Max. Processing length mm 750/1000/1500
X axis travel mm 240
Spindle speed series / 2 gears/promise
Spindle speed range r/min 50-2000
Spindle nose / A2-6
Diameter of spindle through hole mm 52/82
Taper of spindle front hole mm MT5
Motor power of spindle kw 5.5
Chuck size mm 200
X/Z axis servo motor torque N.M X:4/Z:6
X/Z axis rapid fast moving m/min X:6/Z:8
Repeat positioning accuracy mm ±0.005
Tailstock quill diameter mm 60
Tailstock quill travel mm 130
Tailstock quill taper / MT4
Tool post form / 4 station electric tool post
Tool size mm 20*20
Weight kg 2100
Dimension mm 2500*1500*1650
Accessories
Standard Accessories Optional Accessories
  • Frequency Spindle;
  • 200mm 3-jaw Manual Chuck;
  • 4 station turret;
  • Manual Tailstock;
  • Full-splash Guard
  • Stepless speed change
  • Hydraulic Chuck;
  • Hydraulic tailstock;
  • step speed change by manual;
  • Auto 3-step speed change;
  • 6/8/12-station turret;
  • Center Rest and follow rest;
  • 4-Jaw chuck.
  • Living tools
