Horizontal Flat Bed CNC Lathe Machine CK61125 1500mm Heavy Duty Lathe Machine
Horizontal Flat Bed CNC Lathe Machine CK61125 1500mm Heavy Duty Lathe Machine
Horizontal Flat Bed CNC Lathe Machine CK61125 1500mm Heavy Duty Lathe Machine
Horizontal Flat Bed CNC Lathe Machine CK61125 1500mm Heavy Duty Lathe Machine
Horizontal Flat Bed CNC Lathe Machine CK61125 1500mm Heavy Duty Lathe Machine
Horizontal Flat Bed CNC Lathe Machine CK61125 1500mm Heavy Duty Lathe Machine
Horizontal Flat Bed CNC Lathe Machine CK61125 1500mm Heavy Duty Lathe Machine
Horizontal Flat Bed CNC Lathe Machine CK61125 1500mm Heavy Duty Lathe Machine
Horizontal Flat Bed CNC Lathe Machine CK61125 1500mm Heavy Duty Lathe Machine
Horizontal Flat Bed CNC Lathe Machine CK61125 1500mm Heavy Duty Lathe Machine
Specifications
Brand Name :
Matsumoto
Model Number :
CK61125
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$20500-22500
Payment Terms :
T/T
Delivery Time :
20 working days
Packaging Details :
plywood case
Type :
Horizontal
Condition :
New
Weight :
5100kg
Cnc or not :
CNC
Voltage :
Customer's Requirement
Dimension(l*w*h) :
3700/4200/4700*2000*2200mm
Precision :
High Precision
Description

CK61125-1500mm Heavy Duty CNC Lathe Machine Flat Bed CNC Lathe Machine


Description:

The Heavy Duty CNC Lathe CK61125 is a high-performance, rigid numerical control lathe specifically engineered for processing large, heavy workpieces with high precision requirements. Integrating advanced heavy-duty machining technology, robust mechanical structure, and intelligent control systems, it serves as a core equipment in key industrial fields requiring heavy cutting and high-stability processing.


MODEL

CK61125

Max. Swing over bed

1250mm

Max. Swing over cross slide

800mm

Max. Processing length

1500/2000/3000mm

Spindle speed step

Mechanical/Hydraulic 4 stepless

Spindle speed

30-84/53-150/125-350/300-835

Spindle nose

D11

Spindle hole front taper

METRIC120/1:20

Spindle bore

105/130mm

Spindle motor

11/15kw

X/Z axis positioning accuracy

0.025/0.03

X/Z axis repeat positioning accuracy

0.01/0.015mm

X/Z axis travel

X:420 Z:1500/2000/3000

Processing accuracy

IT6-IT7

Workpiece surface roughness

Ral.6

X/Z axis rapid traverse

X:4mm/min Z:6mm/min

Tail stock quill dia

100mm

Spindle taper

MT6

Chuck size

400mm 3jaw(630mm 4jaw)

X/Z axis feed motor torque

X:10Nm Z:15Nm

Quill travel

250mm

Quill taper

MT6

Tool post type

4-position electric turret

Cutting tool size

40*40mm

Guide form

Hard guide

Machine dimension

3700/4200/4700*2000*2200mm

Weight

5100/6000/7200kg

Horizontal Flat Bed CNC Lathe Machine CK61125 1500mm Heavy Duty Lathe Machine

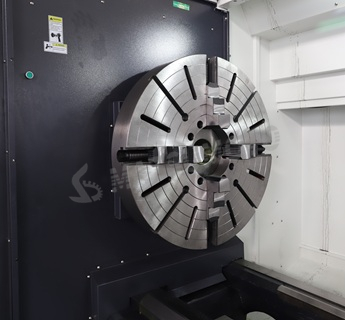

FOUR-JAW CHUCK

Strong clamping during work, long use time.

Horizontal Flat Bed CNC Lathe Machine CK61125 1500mm Heavy Duty Lathe Machine

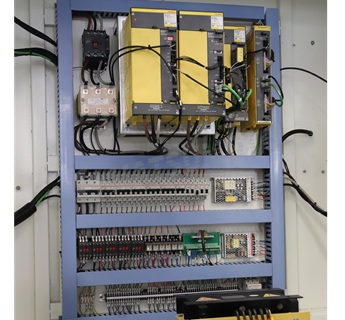

ELECTRIC CONTROL BOX

The wiring of the electric control box is neat and reasonable, and the original electric parts adopt brand accessories.

Horizontal Flat Bed CNC Lathe Machine CK61125 1500mm Heavy Duty Lathe Machine

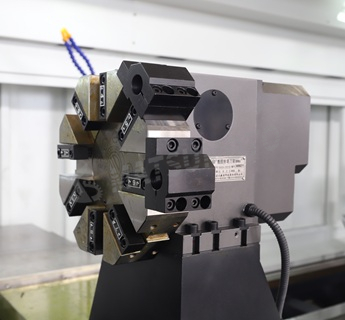

TOOL HOLDER

Four-station tool holder, multi-tool quick change.

Horizontal Flat Bed CNC Lathe Machine CK61125 1500mm Heavy Duty Lathe Machine

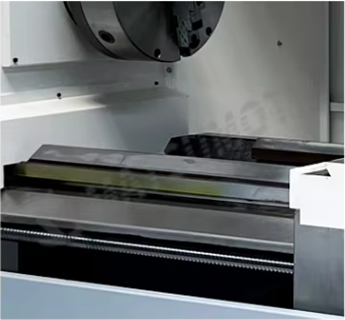

GUIDE

The guide rails are quenched by super audio frequency, and the sliding guide rails are all pasted with wear-resistant plastic.

Horizontal Flat Bed CNC Lathe Machine CK61125 1500mm Heavy Duty Lathe Machine

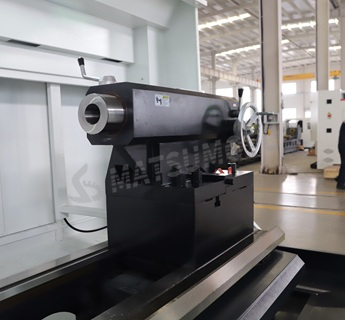

TAIL STOCK

Standard with manual tail stock, optional:Hydraulic or pneumatic type tail stock.

Horizontal Flat Bed CNC Lathe Machine CK61125 1500mm Heavy Duty Lathe Machine

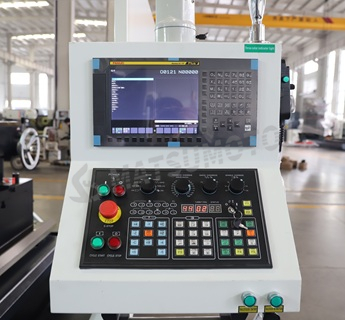

CNC CONTROL SYSTEM

Standard:GSK

Optional:FANUC/MITSUBISHI etc.


CNC Lathe use:
The machine tool is automatically controlled by the CNC system to perform various kinds of turning of inner holes, outer circles, conical surfaces, arc surfaces, and threads, Simple programming, high precision and other advantages.


CNC Lathe Features:
Widened high stability bed
Four-speed speed change of main shaft, stepless frequency conversion speed regulation.
Widened carriage
Automatic centralized lubrication
Overall bed
