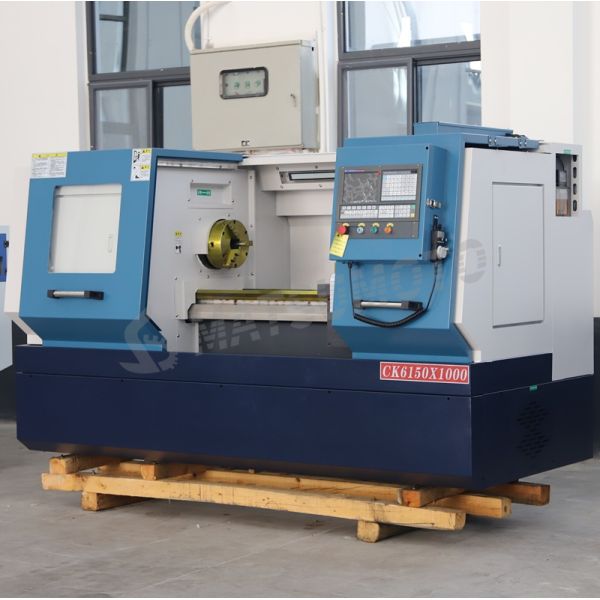

CK6150 Horizontal Flat Bed CNC Lathe Machine CK6163 Metal Lathe Two Three Gear
CK6150 Horizontal Flat Bed CNC Lathe Machine CK6163 Metal Lathe Two Three Gear
CK6150 Horizontal Flat Bed CNC Lathe Machine CK6163 Metal Lathe Two Three Gear
CK6150 Horizontal Flat Bed CNC Lathe Machine CK6163 Metal Lathe Two Three Gear
CK6150 Horizontal Flat Bed CNC Lathe Machine CK6163 Metal Lathe Two Three Gear
CK6150 Horizontal Flat Bed CNC Lathe Machine CK6163 Metal Lathe Two Three Gear
CK6150 Horizontal Flat Bed CNC Lathe Machine CK6163 Metal Lathe Two Three Gear
CK6150 Horizontal Flat Bed CNC Lathe Machine CK6163 Metal Lathe Two Three Gear
CK6150 Horizontal Flat Bed CNC Lathe Machine CK6163 Metal Lathe Two Three Gear
CK6150 Horizontal Flat Bed CNC Lathe Machine CK6163 Metal Lathe Two Three Gear
Specifications
Brand Name :
Matsumoto
Model Number :
CK6150
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$10500-12500
Payment Terms :
T/T
Delivery Time :
15 working days
Packaging Details :
plywood case
Max. Swing over bed :
500mm
Max. Swing Dia.over slide :
270mm
Max. Processing length :
750/1000/1500/2000mm
X axis travel :
280mm
Spindle nose :
A2-8
Dimension(L*W*H) :
2800*1700*1800mm
Description

CK6150 Horizontal Flat Bed CNC Lathe CK6163 CNC Machine for Metal

Application:

CK6150 Lathe Machine can automatically process the inside and outside cylinder surface, cone surface, circular arc surface, end face, such as processing, and also can process the single and multiple threads in metric, inch and other standards.

PROJECT

UNIT

CK6150

CK6163

Max. Swing over bed

mm

500

630

Max. Swing Dia.over slide

mm

270

330

Max. Processing length

mm

750/1000/1500/2000

1000/1500/2000/3000

X axis travel

mm

280

320

Spindle speed series

/

Three gear/Promise

Four gear/Promise

Spindle speed range

r/min

50-500/300-1100/600-1600

30-84/53-150/125-350/300-835

Spindle nose

/

A2-8

A2-11/C11

Diameter of spindle through hole

mm

82/105/130

105

Taper of spindle front hole

mm

MT6

140(1:20)

Motor power of spindle

kw

7.5

11

Chuck size

mm

250

320

X/Z axis servo motor torque

N.M

X:5.5/Z:7.5

X:10/Z:15

X/Z axis fast moving

m/min

X:6/Z:8

X:4/Z:5

Repeat positioning accuracy

mm

±0.005

±0.005

Tail stock quill dia

mm

65

100

Tail stock quill travel

mm

140

250

Tail stock taper

/

MT5

MT6

Tool post form

/

4-station electric tool post

Tool size

mm

25*25

32*32

Weight

kg

2800

4500

Dimension(L*W*H)

mm

2800*1700*1800

4250*1920*1800

Standard Accessories:
1. System: GSK
2. 3-jaw manual chuck
3. 4-station electric turret
4. Frequency spindle motor
5. Stepless speed changer
6. Manual tailstock
7. Lighting system
8. Cooling system

Machine Details:
