Specifications
Brand Name :
Matsumoto
Model Number :
CK6132
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
5200USD-5600USD
Payment Terms :
T/T
Delivery Time :
15 Working days
Packaging Details :
plywood case
Model NO. :
CK6132
Condition :
New
Max. Swing Dia. Over Cross Slide :
130mm
Dia. of Spindle :
49mm
Specification :
2100*1500*1700mm
Max. Swing Dia. Over Bed :
320mm
Description

Mini Lathe Small CNC Lathe Ck6132 China Flat Bed CNC Lathe Machine


Description:

CK6132 is a high-precision, compact numerical control lathe designed for small to medium-sized workpiece processing. It integrates advanced CNC technology, mechanical stability, and user-friendly operation, making it an ideal choice for precision machining in various industries.
In terms of structural design, the CK6132 adopts a high-rigidity bed made of high-quality cast iron, which undergoes strict aging treatment to eliminate internal stress. This ensures excellent stability and vibration resistance during high-speed operation, laying a solid foundation for high-precision machining. The spindle system is equipped with high-precision bearings, supporting a maximum spindle speed that meets the needs of both rough machining and fine finishing. The Z-axis and X-axis feed systems adopt high-precision ball screws and linear guides, minimizing backlash and ensuring smooth, accurate feed movements.


PROJECY

UNIT

CK6132

Max. Swing over bed

mm

400

Max. Swing Dia.over slide

mm

120

Max. Turning length

mm

350

Spindle drawing pipe through hole diameter

mm

49

Spindle speed range

rpm

100-3000

Spindle motor power

kw

4

Spindle head type

/

A2-5

Taper of spindle bore

/

GB21°

X axis travel

mm

750

Z axis travel

mm

510

X/Z axis feed

mm

10/10

Chuck diameter

mm

160

Pump power

kw

380v/90w

Repeat positioning accuracy

mm

0.005/0.005

Tool holder

/

Four-station electric tool post

Tool size

mm

20*20

Tailstock quill taper

/

MT4#

Tailstock quill travel

mm

Optional

Tailstock form

/

Optional

Weight

kg

1500

Dimension(L*W*H)

mm

2100*1500*1700


Standard Configuration:

Optional Configuration:

1) System:GSK928TD-L, servo motor and drive.

2) Pneumatic collet.

3) Gang type tool post.

4) Cooling system.

5) Lighten system.

6) Automatic lubrication system.

1).CNC system: GSK, Fanuc, KND, GUNT.

2).Hydraulic chuck, Pneumatic chuck .

3).Hydraulic tailstock, Pneumatic tailstock.

4).4/6/8-station electric turret.

5). Automatic bar feeder, Chip conveyor.

Customizable Small Cnc Lathe Machine Numerical Control Ck6132 Flat Bed Lathe Machine

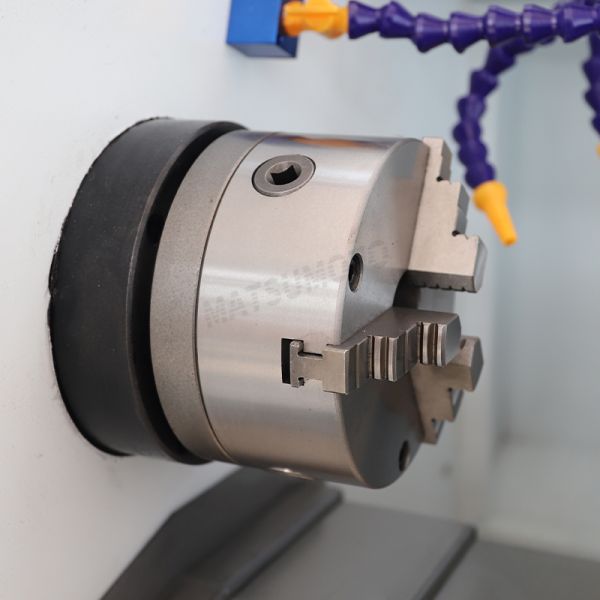

PNEUMATIC CHUCK

Strong clamping during work, long service life.

Customizable Small Cnc Lathe Machine Numerical Control Ck6132 Flat Bed Lathe Machine

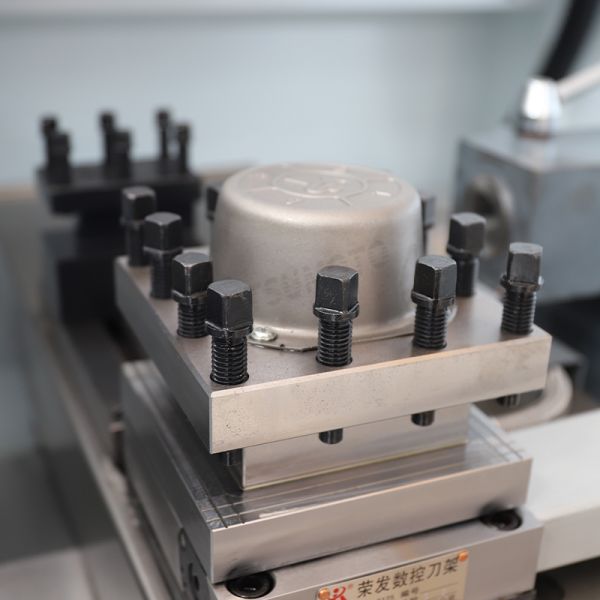

ROW TOOL POST

High positioning accuracy, stable and reliable, simple structure, convenient maintenance.

Customizable Small Cnc Lathe Machine Numerical Control Ck6132 Flat Bed Lathe Machine

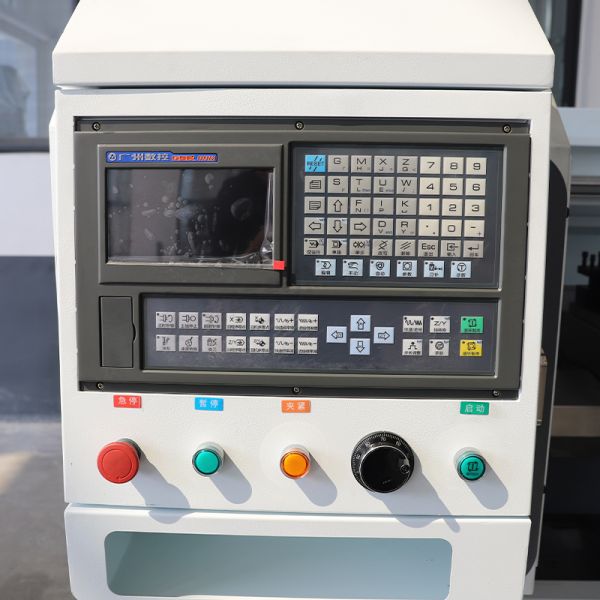

CNC CONTROL SYSTEM

Standard:GSK

Optional:FANUC/MITSUBISHI etc.

  • Application:

Auto cnc machine programming high precision metal lathe CK6132 for sale uses the design of mechanical and electrical integration,generous appearance beautiful, reasonable structure, easy operation. The machine adopts the integral bed foot, the stability is better. Wear-resistant cast iron after ultra-audio quenching treatment, to ensure the accuracy of the equipment and stability. The fully enclosed cover ensures that a drop of water does not leak out of the machine.

Advantages:

1. High Processing Precision

The combination of high-precision ball screws, linear guides, and a high-stability spindle system ensures that the CK6132 achieves excellent positioning accuracy and processing precision. It can stably process workpieces with tight tolerance requirements, reducing scrap rates and improving product quality.

2 Compact Structure and Space-Saving

As a small CNC lathe, the CK6132 has a compact overall structure, occupying a small floor area. It is suitable for small workshops, laboratories, or production lines with limited space, while maintaining powerful processing capabilities.
