Robust Structure Ck61100 Horizontal CNC Turning Machine Heavy Duty Flat Bed Lathe
Robust Structure Ck61100 Horizontal CNC Turning Machine Heavy Duty Flat Bed Lathe
Robust Structure Ck61100 Horizontal CNC Turning Machine Heavy Duty Flat Bed Lathe
Robust Structure Ck61100 Horizontal CNC Turning Machine Heavy Duty Flat Bed Lathe
Robust Structure Ck61100 Horizontal CNC Turning Machine Heavy Duty Flat Bed Lathe
Robust Structure Ck61100 Horizontal CNC Turning Machine Heavy Duty Flat Bed Lathe
Robust Structure Ck61100 Horizontal CNC Turning Machine Heavy Duty Flat Bed Lathe
Robust Structure Ck61100 Horizontal CNC Turning Machine Heavy Duty Flat Bed Lathe
Robust Structure Ck61100 Horizontal CNC Turning Machine Heavy Duty Flat Bed Lathe
Robust Structure Ck61100 Horizontal CNC Turning Machine Heavy Duty Flat Bed Lathe
Specifications
Brand Name :
Matsumoto
Model Number :
CK61100
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
18500USD-19800USD
Payment Terms :
T/T
Delivery Time :
20WORKING DAYS
Packaging Details :
plywood case
Type :
CNC Lathe
Distance :
1000/1500/2000/2500mm
Turret Type :
4/6/8 Station Turret
Power :
11kw
Spindle speed :
40-1200rpm 3 levels(stepless)
Net weight :
4850 / 6466 / 8050kg
Description

Ck61100 Horizontal CNC Turning Machine Heavy Duty Flat Bed Lathe


Description:

CNC Lathe CK61100 is a high-performance, rigid numerical control lathe tailored for processing large and heavy workpieces with strict precision demands. Integrating advanced heavy-duty machining technology, robust mechanical structure, and intelligent control systems, it serves as a core equipment in key industrial fields requiring reliable heavy cutting and long-term stable processing. It strikes an optimal balance between processing scale and operational flexibility, suitable for medium-to-large workpiece manufacturing scenarios.

Main Technical Parameters
CWK6180
CWK61100
Max swing over bed
mm
800
1000
Bed width
mm
600
Max swing over cross slide
mm
485
685
Max length of work piece
mm
1500(1350)/2000(1850)/3000(2850)
Spindle bore
mm
122
Spindle taper
/
1:20 / D11
Power of the main motor
kw
11
Spindle speed
rpm
40-1200 3 levels(stepless)
Z axis screw Dia.x Pitch
mm
63 * 12
X axis screw Dia. x Pitch
mm
32 * 5
Tool positions of the turret

4/6/8 or others
Diameter of the tailstock
mm
105
Working travel of the tailstock
mm
300
Taper of the tailstock
mm
MT6
Net weight
kg
4850 / 6466 / 8050
Packing size
mm
1500mm 3880*1780*1980
2000mm 4380*1780*1980
3000mm 5380*1780*1980



Robust Structure Ck61100 Horizontal CNC Turning Machine Heavy Duty Flat Bed Lathe

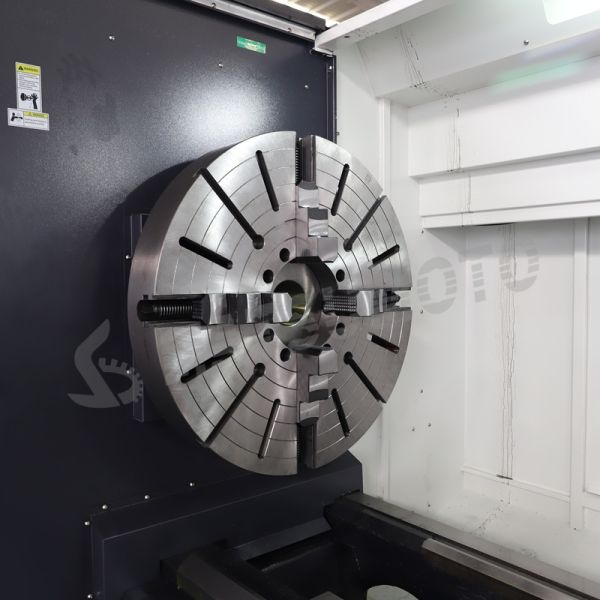

CHUCK

Strong clamping during work, long use time.

Robust Structure Ck61100 Horizontal CNC Turning Machine Heavy Duty Flat Bed Lathe

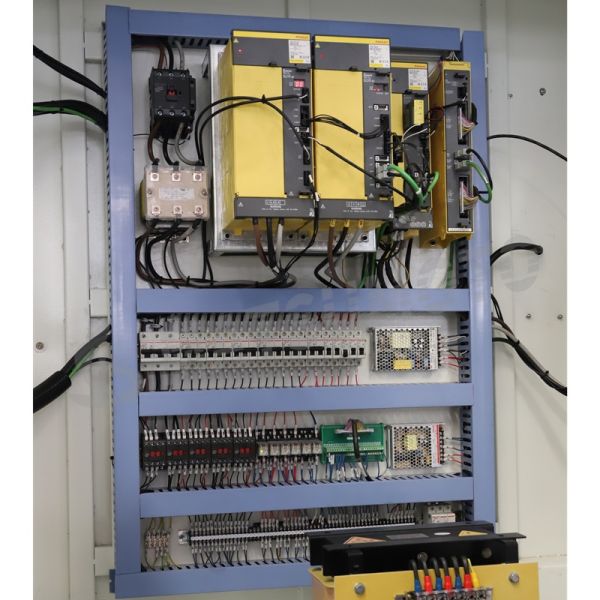

ELECTRIC CONTROL BOX

The wiring of the electric control box is neat and reasonable, and the original electric parts adopt brand accessories.

Robust Structure Ck61100 Horizontal CNC Turning Machine Heavy Duty Flat Bed Lathe



TOOL HOLDER

Four-station tool holder, multi-tool quick change.

Robust Structure Ck61100 Horizontal CNC Turning Machine Heavy Duty Flat Bed Lathe

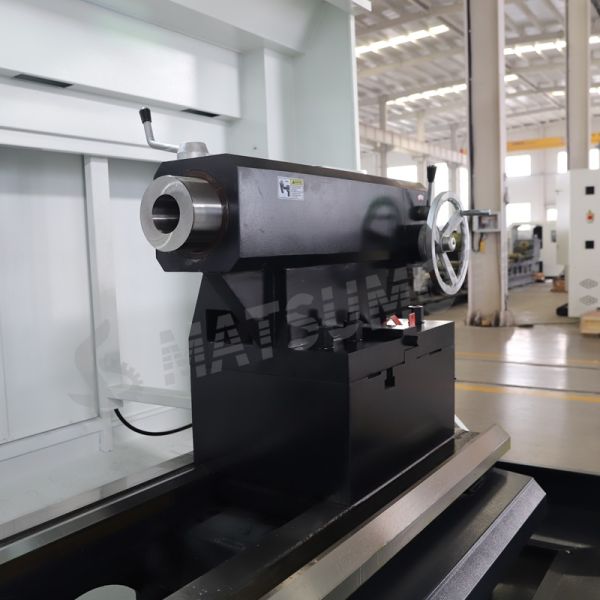

TAISL STOCK

Standard with manual tail stock, optional: Hydraulic or pneumatic type tail stock.

Robust Structure Ck61100 Horizontal CNC Turning Machine Heavy Duty Flat Bed Lathe

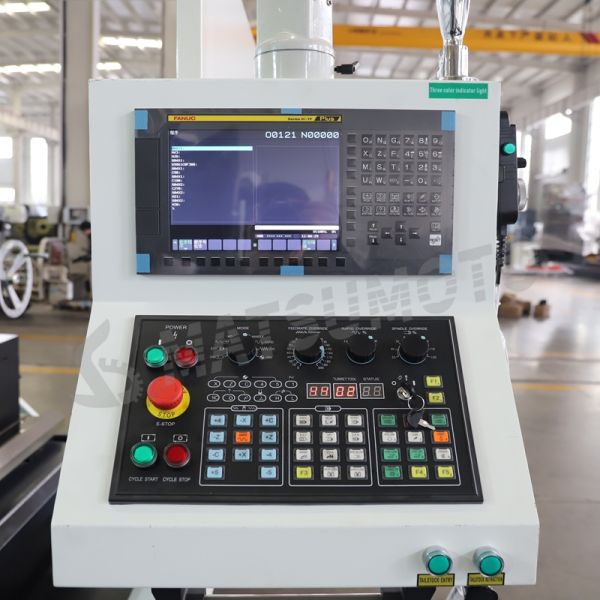

CNC CONTROL SYSTEM

Standard:GSK

Optional:FANUC/MITSUBISHI etc.


  • Feature:

1.The machine guideways are accurate grinded,which has good wear resistance and high precision.

2.The spindle adopts three axis three gear variable speed, high cuting torque at low speed.

3.The machine is equipped with an automatic lubrication system,thus making it possible to minimize the thermal deformation effectively and assure good machining accuracy.

4.The machine can work under the positive control of a CNC system produced either by the GSK CNC System Factory, the Kanety or the Fanuc.

5.According to client's requirements, we can equip with pneumatic chunk, hydraulic chunk and other special accessories.

  • Application

The CNC system automatically controls the truning of various types of inner holes, outer circles, conical surfaces, circular arc surfaces, and threads. Widened and highly stable bed, with four speed changes on the main spindle and infinite frequency conversion speed regulation within each gear.
