Ck61140 Heavy Duty Flat Bed CNC Lathe Machine Precision 1400mm Swing Over Bed
Ck61140 Heavy Duty Flat Bed CNC Lathe Machine Precision 1400mm Swing Over Bed
Ck61140 Heavy Duty Flat Bed CNC Lathe Machine Precision 1400mm Swing Over Bed
Ck61140 Heavy Duty Flat Bed CNC Lathe Machine Precision 1400mm Swing Over Bed
Ck61140 Heavy Duty Flat Bed CNC Lathe Machine Precision 1400mm Swing Over Bed
Ck61140 Heavy Duty Flat Bed CNC Lathe Machine Precision 1400mm Swing Over Bed
Ck61140 Heavy Duty Flat Bed CNC Lathe Machine Precision 1400mm Swing Over Bed
Ck61140 Heavy Duty Flat Bed CNC Lathe Machine Precision 1400mm Swing Over Bed
Ck61140 Heavy Duty Flat Bed CNC Lathe Machine Precision 1400mm Swing Over Bed
Ck61140 Heavy Duty Flat Bed CNC Lathe Machine Precision 1400mm Swing Over Bed
Specifications
Brand Name :
Matsumoto
Model Number :
CK61140
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
22000USD-25000USD
Payment Terms :
T/T
Delivery Time :
25 WORKING DAYS
Packaging Details :
plywood case
Type :
Horizontal
Automatic grade :
Automatic
Condition :
New
Cnc or not :
CNC
Voltage :
Customer's Requirement
Warranty :
1 Year
Machine type :
Flat Bed CNC Lathe
Color :
Customized Option
Control system :
Fanuc GSK FANUC (optional),GSK,Optional
Precision :
High Precision
Description

Ck61140 China Manufacture Heavy Duty High Precision Flat Bed CNC Lathe Machine


Description:

The CK61140 is a high-performance heavy duty CNC lathe engineered for large-scale, high-precision turning operations of heavy and oversized workpieces. Boasting a 1400mm swing over bed and robust integral cast iron bed with hardened and ground guide rails, it delivers exceptional rigidity and vibration resistance to withstand heavy cutting forces. Equipped with a high-torque spindle system (with optional spindle bore sizes for bar feeding), a servo-driven turret (8/12-station optional) and advanced CNC control system (Fanuc/GSK optional), it supports continuous multi-process turning, including facing, turning, boring, threading, grooving and taper turning.


Specifications Unit CK61140L
Maximum swing over bed mm 1400
Maximum turning diameter on the skateboard mm 1000
Maximum workpiece length mm 1500/3000/4000/5000/6000/7000/8000
Bed rail width mm 755
Bed load-bearing range T 6/10
Spindle aperture range mm 130
Spindle aperture dimensions - Metric140/MT6
Spindle nose model - A2-15
Spindle speed level - 4-speed frequency conversion
Spindle speed range rpm 4-300
Chuck specifications mm 1000 Manual four-jaws
Tool holder type - 4-station electric tool holder
Tool size mm 40*40
X-axis travel mm 720
Z-axis travel mm 1350/2850/3850/4850/5850
X-axis fast feed rate mm/min 4000
Z-axis fast feed rate mm/min 6000
Tailstock sleeve diameter mm 160
Tailstock sleeve taper - MT6
Tailstock sleeve travel mm 300
Spindle motor kw 22
Cooling pump motor kw 0.25
Overall dimensions(length) mm 5000/6500/7500/8500/9500/10500/11500
Overall dimensions(width*height) mm 2350*2450
Machine tool weight kg 12000/13500/14500/15500/16500/17500/18500

  • Features

High base strength, widened carriage, suitable for strong turning.

Four-station electric tool holder.

Four-speed change of spindle, stepless frequency conversion speed regulation.

Standard configuration: Manual chuck.

Choose configuration: Spring collect, hydraulic chuck, automatic feeding device, row tool holder.

Ck61140 Heavy Duty Flat Bed CNC Lathe Machine Precision 1400mm Swing Over Bed

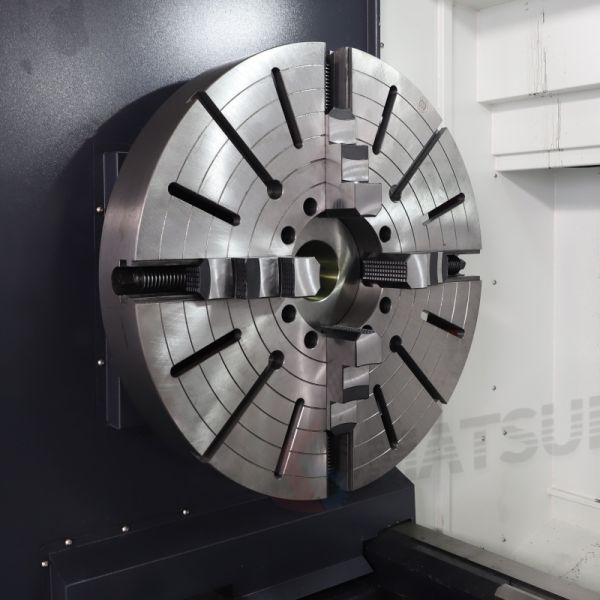

FOUR-JAW CHUCK


Strong clamping during work, long use time.

Ck61140 Heavy Duty Flat Bed CNC Lathe Machine Precision 1400mm Swing Over Bed

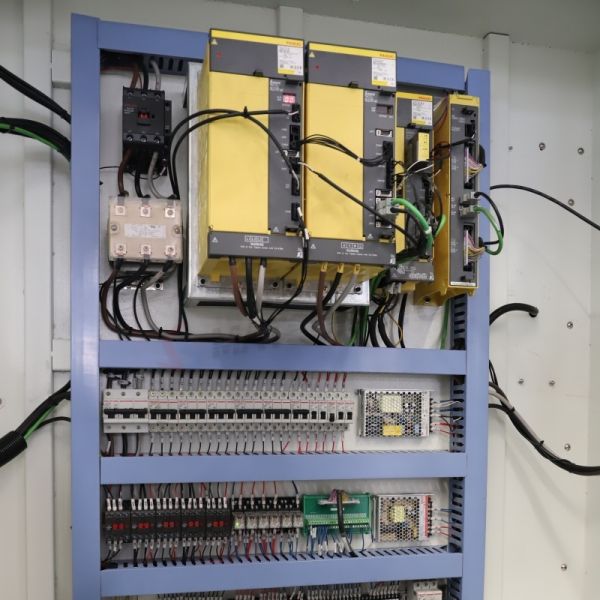

ELECTRIC CONTROL BOX


The wiring of the electric control box is neat and reasonable, and the original electric parts adopt brand accessories.

Ck61140 Heavy Duty Flat Bed CNC Lathe Machine Precision 1400mm Swing Over Bed

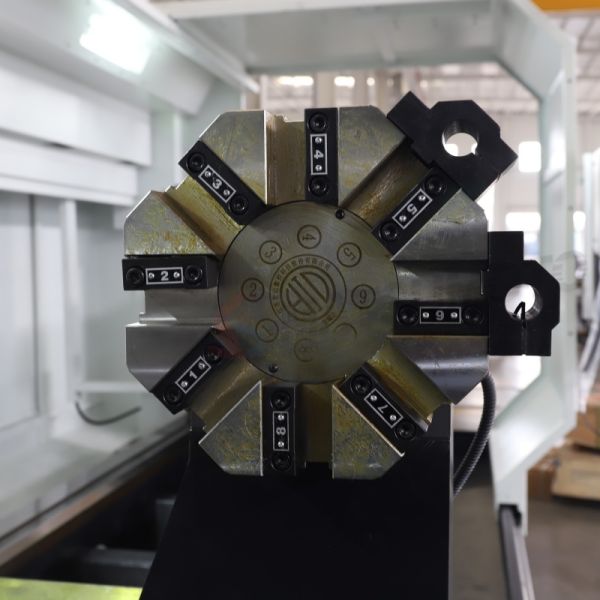

8-STATION SERVO TURRET


Automatic tool change, time-saving and labor-saving, easy to operate.

Ck61140 Heavy Duty Flat Bed CNC Lathe Machine Precision 1400mm Swing Over Bed

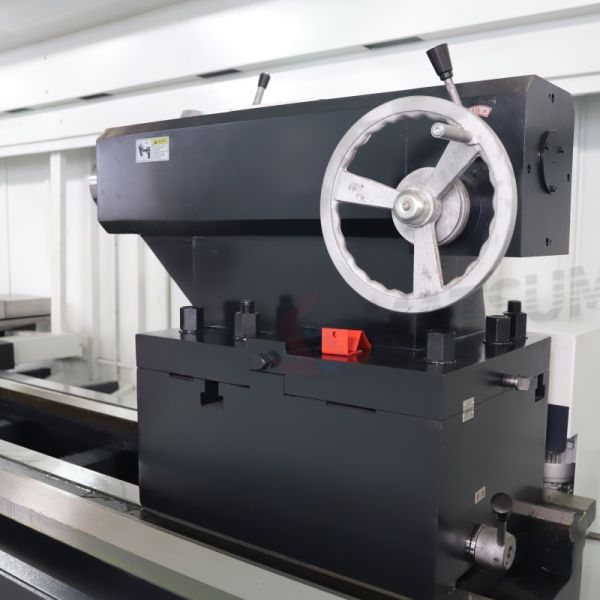

TAILSTOCK


Standard with manual tailstock, optional: Hydraulic or pneumatic type tailstock.

Ck61140 Heavy Duty Flat Bed CNC Lathe Machine Precision 1400mm Swing Over Bed

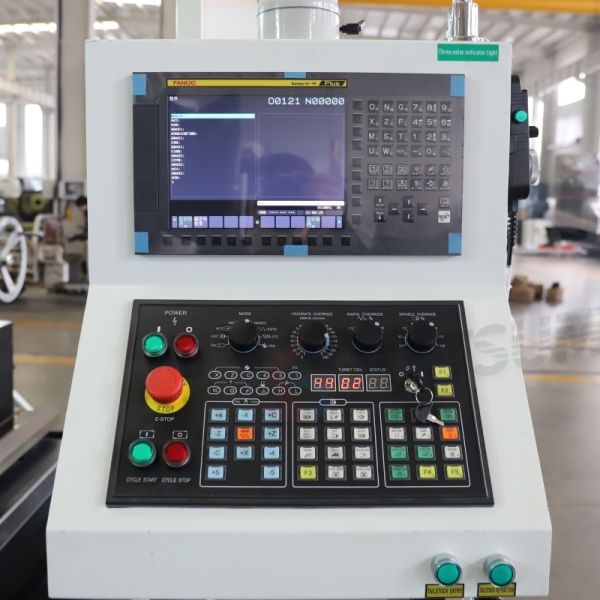

CNC CONTROL SYSTEM


Standard: GSK

Optional: FANUC/MITSUBISHI etc.
