Specifications
Brand Name :
Matsumoto
Model Number :
CK6180
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
10000USD-12000USD
Payment Terms :
T/T
Delivery Time :
15 working days
Packaging Details :
plywood case
Type :
Horizontal
After-sales service provided :
Online support,Video technical support
Automatic grade :
Automatic
Condition :
New
Cnc or not :
CNC
Voltage :
Customer's Requirement
Warranty :
1 Year
Color :
Customized Option
Control system :
Fanuc GSK FANUC (optional),GSK,Optional
Spindle speed :
30-84/53-150/125-350/300-835
Function :
Machining Metal
Precision :
High Precision
Description

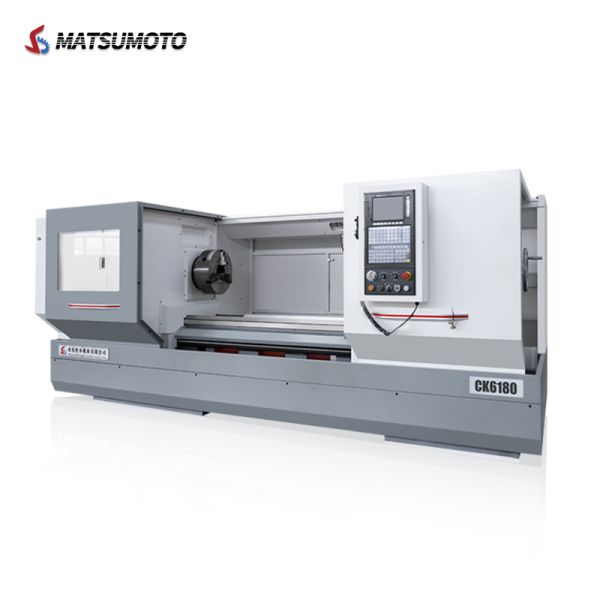

CK6180 CNC Horizontal Lathe Machine Automatic Heavy Duty Lathe


Description:

High base strengh,widened carriage,suitable for strong turning.

Four-station electric knife holder.

Four-speed change of main shaft,stepless frequency conversion speed regulation.

Standard configuration: manual chuck.

Choose configuration: spring collet,hydraulic chuck,Automatic feeding device, row knife holder.


PRIJECT

UNIT

CK6180

Max. Swing over bed

mm

800

Max. Swing Dia.over slide

mm

480

Max. Turning diameter(DISC TYPE)

mm

800

Max. Processing length

mm

1000/1500/2000/3000

Max. Turning length

mm

850/1350/1850/2850

Form and code of spindle end

/

A2-11/C11

Diameter of spindle front hole

mm

105/130

Taper of spindle front hole

mm

METRIC 120/1:20

Spindle speed range

r/min

30-84/53-150/125-350/300-835

Spindle shift mode

/

4-GEAR SPINDLE SPEED, STEP-LESS IN GEAR

Motor power of spindle

kw

15

Chuck size

inch

16

X/Z axis fast moving

m/min

X:4/Z:5

X/Z axis servo motor torque

N.M

X:10 Z:15/22/30

X/Z axis travel

mm

X:430 Z:1000/1500/2000/3000

Tool holder capacity

/

4

Tool size

mm

32*32

Tail stock quill dia

mm

130

Tail stock quill travel

mm

260

Tail stock quill taper

/

MT6#

Weight

kg

5500/6000/6500/7700


Dimension(L*W*H)


mm

3500*2000*2200

4000*2000*2200

4000*2000*2200

5500*2000*2200

  • Details Images


High Precision CNC Horizontal Lathe Machine Automatic Heavy Duty Lathe Customized

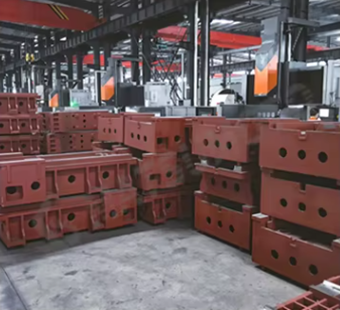

BED CASTING


The key to castings is timeliness, putting quality first to ensure customer satisfaction.

High Precision CNC Horizontal Lathe Machine Automatic Heavy Duty Lathe Customized

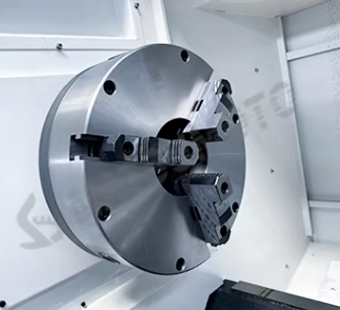

THREE-JAW CHUCK


Strong clamping during work, long use time.

High Precision CNC Horizontal Lathe Machine Automatic Heavy Duty Lathe Customized

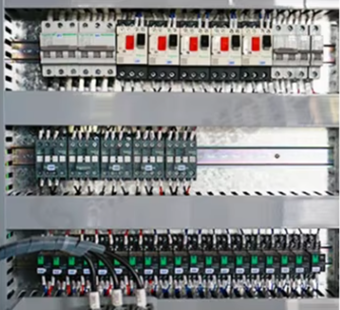

ELECTRIC CONTROL BOX


The wiring of the electric control box is neat and reasonable, and the original electric parts adopt brand accessories.

High Precision CNC Horizontal Lathe Machine Automatic Heavy Duty Lathe Customized

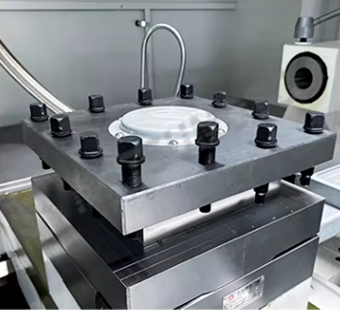

TOOL HOLDER


Four-station tool holder, multi-tool quick change.

High Precision CNC Horizontal Lathe Machine Automatic Heavy Duty Lathe Customized

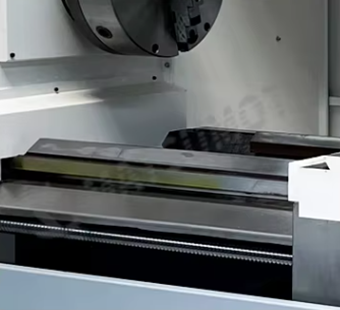

GUIDE


The guide rails are quenched by super audio frequency, and the sliding guide rails are all pasted with rear-resistant plastic.

High Precision CNC Horizontal Lathe Machine Automatic Heavy Duty Lathe Customized

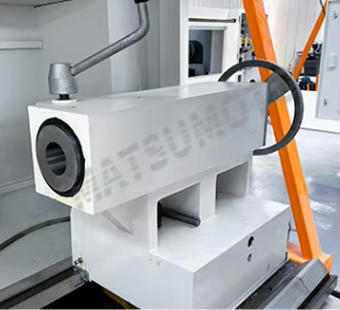

TAILSTOCK


Standard with manual tail stock

Optional:Hydraulic or pneumatic type tail stock.

High Precision CNC Horizontal Lathe Machine Automatic Heavy Duty Lathe Customized

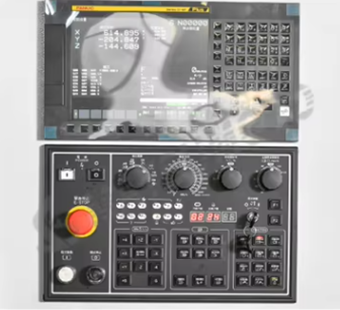

CNC CONTROL SYSTEM


Standard: GSK

Optional: FANUC/MITSUBISHI etc.

High Precision CNC Horizontal Lathe Machine Automatic Heavy Duty Lathe Customized

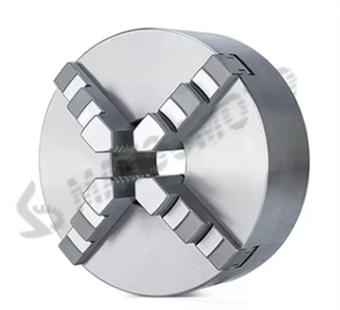

OPTIONAL ACCESSORIES


Precision four-jaw chuck.

  • Packaging & Shipping

High Precision CNC Horizontal Lathe Machine Automatic Heavy Duty Lathe Customized

1.Standard plywood case,its compressive strength and bearing quality is better.

2.The board area is bit,the soil structure is good,it is better in leak proofness and waterproof.

3.When importing,the plywood case is with fumigation-free,the procedure is simple.

4.Delivery Detail:within 7-15 days after received your payment.

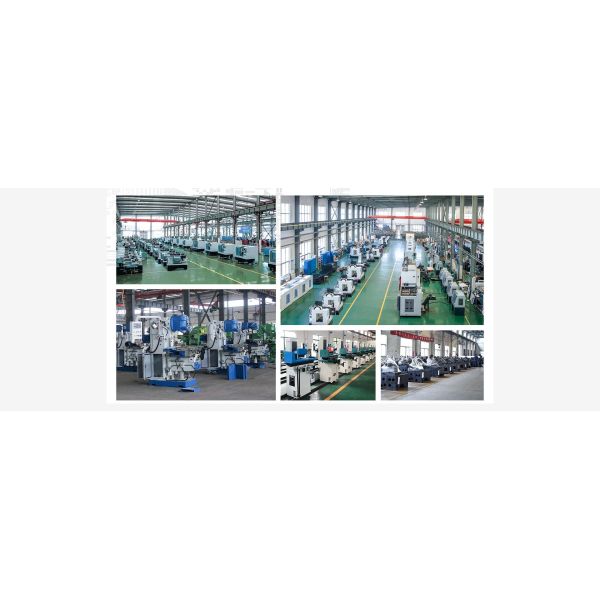

  • Company Profile

High Precision CNC Horizontal Lathe Machine Automatic Heavy Duty Lathe Customized

Shandong Matsumoto Machine Tool Co., Ltd.specializes in the production of processing machine tools. Its main products include precision products such as CNC lathes, surface grinders,milling machines, and vertical machining centers. It has a complete and scientific quality management system. Shandong Matsumoto Machine Tool Co., Ltd. operates with integrity, and its production strength and product quality have been recognized and praised by the industry.It is a comprehensive machine tool manufacturing enterprise integrating CNC machine tool manufacturing and consulting services. The company has a complete R&D and after-sales service team. Welcome to visit, guide and negotiate business with the company.

High Precision CNC Horizontal Lathe Machine Automatic Heavy Duty Lathe Customized


Main products:

CNC Lathe Machine,CNC Machine Center/Milling Machine,CNC Turning Machine Center,Lathe machine,Grinding Machine, Milling machine,Band Sawing Machine.

  • Certification:

High Precision CNC Horizontal Lathe Machine Automatic Heavy Duty Lathe Customized

  • FAQ:

1:How can I choose the most suitable machines ?

A: Please tell me your specifications ,we can choose the best model for you , or you choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you .


2: What's your main products of your company?

A: We specialized in all kinds of machines ,such as CNC Lathe Machine,CNC Machine Center/Milling Machine,CNC Turning Machine Center,Lathe machine,Grinding Machine, Milling machine,Band Sawing Machine and so on .


3: What about the quality of the machine?and after-sales service?

A : Our machine warranty period is 3 years,and we provide free technical service.


4. What is your trade terms?

A : FOB, CFR and CIF all acceptable.


5: What's the Payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .


6: What's the MOQ?

A: 1 set .(Only some low cost machines will be more than 1 set )
