CK0640 Flat Bed CNC Lathe Economical Precision Metal Turning Machine
CK0640 Flat Bed CNC Lathe Economical Precision Metal Turning Machine
CK0640 Flat Bed CNC Lathe Economical Precision Metal Turning Machine
CK0640 Flat Bed CNC Lathe Economical Precision Metal Turning Machine
CK0640 Flat Bed CNC Lathe Economical Precision Metal Turning Machine
CK0640 Flat Bed CNC Lathe Economical Precision Metal Turning Machine
CK0640 Flat Bed CNC Lathe Economical Precision Metal Turning Machine
CK0640 Flat Bed CNC Lathe Economical Precision Metal Turning Machine
CK0640 Flat Bed CNC Lathe Economical Precision Metal Turning Machine
CK0640 Flat Bed CNC Lathe Economical Precision Metal Turning Machine
CK0640 Flat Bed CNC Lathe Economical Precision Metal Turning Machine
CK0640 Flat Bed CNC Lathe Economical Precision Metal Turning Machine
Specifications
Delivery Time :
20 working days
Model Number :
CK0640
Max. Swing over bed :
320mm
MOQ :
1
Packaging Details :
plywood case
Tool size :
20*20mm
Payment Terms :
T/T
Price :
8500-10500
Certification :
CE
Max. Swing Dia.over slide :
120mm
Place of Origin :
China
Max. Turning length :
300mm
Brand Name :
Matsumoto
X/Z axis travel :
700*350mm
Description

CK0640 Flat Bed CNC Lathe Economical Precision Metal Turning Machine



CK0640 is an economical flat-bed horizontal CNC lathe developed for precision mass production of small shaft and disc parts. The machine adopts high-strength cast iron bed after aging treatment to minimize deformation and ensure long-term stable machining accuracy. Equipped with high-precision ball screws and servo drive system, it supports automatic turning of inner & outer circles, end faces, grooves, tapers, spherical surfaces and metric/inch threads. Multiple CNC control systems are optional for flexible programming. Compact structure saves workshop space with fully enclosed safety protection.


PROJECY

UNIT

CK0640

Max. Swing over bed

mm

320

Max. Swing Dia.over slide

mm

120

Max. Turning length

mm

300

Spindle drawing pipe through hole diameter

mm

41

Spindle speed range

rpm

100-3000

Spindle motor power

kw

4

Spindle head type

/

A2-5

Taper of spindle bore

/

GB22.5°

X axis travel

mm

700

Z axis travel

mm

350

X/Z axis feed

mm

20/20

Chuck diameter

mm

Penumatic chuck

Pump power

kw

380v/90w

Repeat positioning accuracy

mm

0.005/0.005

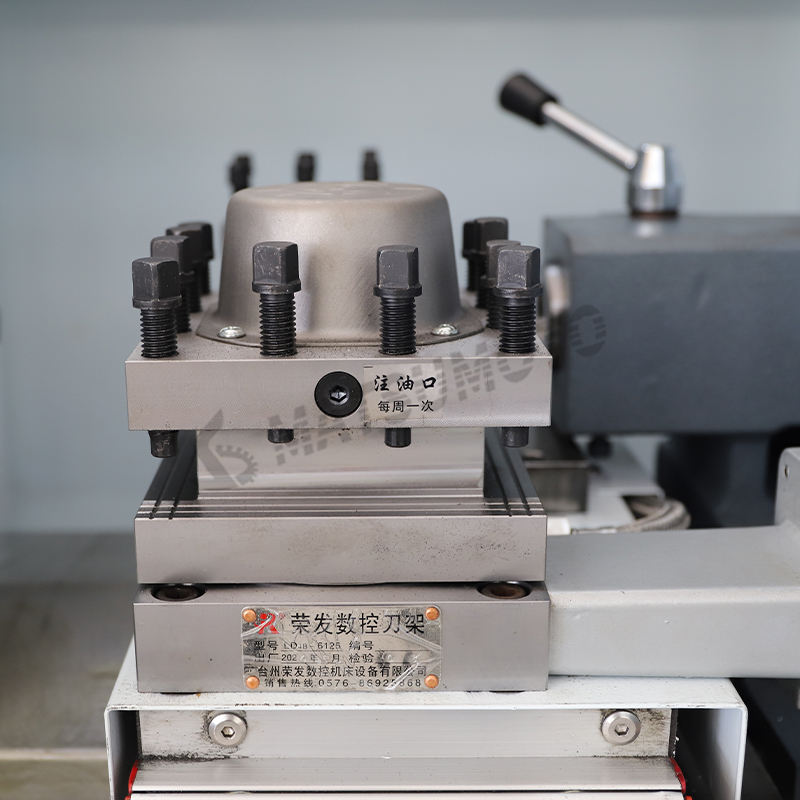

Tool holder

/

Standard row tool/optional four-station electric tool post

Tool size

mm

20*20

Tailstock quill taper

/

/

Tailstock quill travel

mm

Optional

Tailstock form

/

Optional

Weight

kg

1000

Dimension(L*W*H)

mm

1600*1400*1600


  • Details Images


CK0640 Flat Bed CNC Lathe Economical Precision Metal Turning Machine

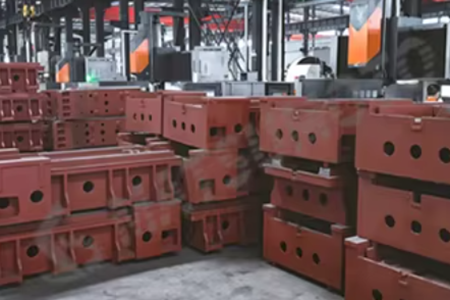

BED CASTING


The key to castings is timeliness, putting quality first to ensure customer satisfaction.

CK0640 Flat Bed CNC Lathe Economical Precision Metal Turning Machine

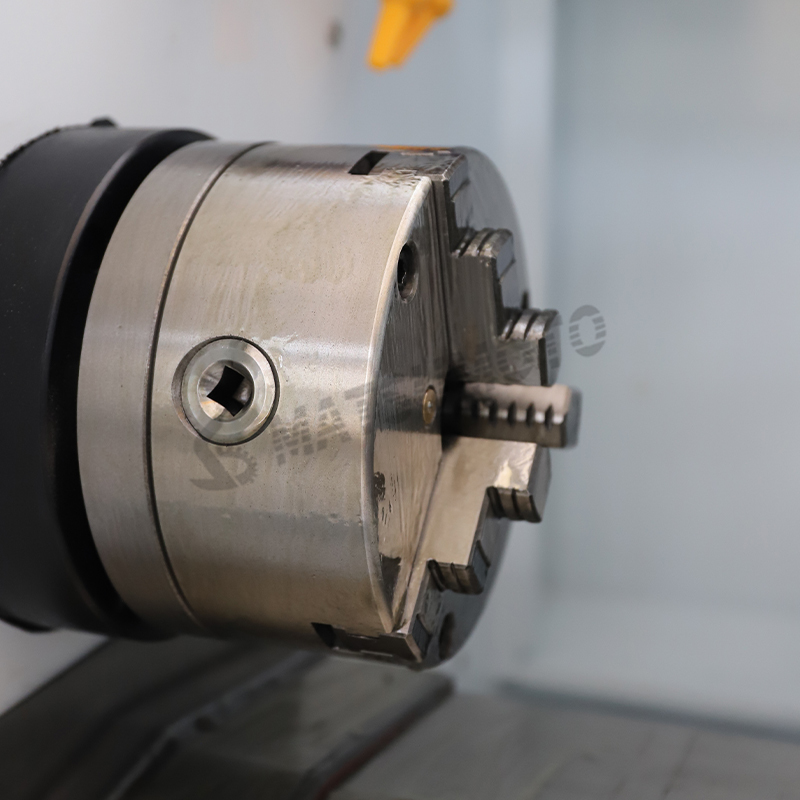

PENUMATIC CHUCK


Strong clamping during work, long service life.

CK0640 Flat Bed CNC Lathe Economical Precision Metal Turning Machine

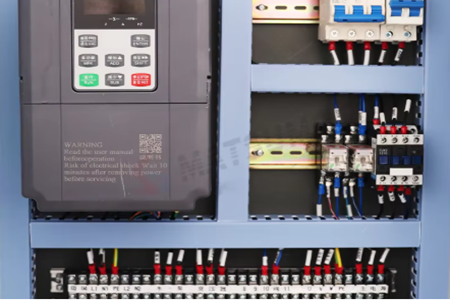

ELECTRIC CONTROL BOX


The wiring of the electric control box is neat and reasonable, and the original electric parts adopt brand accessories.

CK0640 Flat Bed CNC Lathe Economical Precision Metal Turning Machine

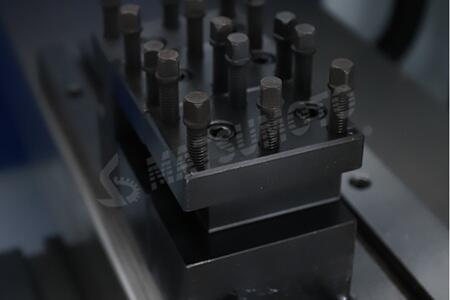

ROW TOOL POST


High positioning accuracy, stable and reliable, simple structure, convenient maintenance.

CK0640 Flat Bed CNC Lathe Economical Precision Metal Turning Machine

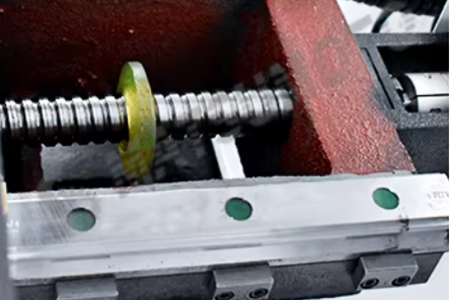

GUIDE


The guide rails are quenched by super audio frequency, and the sliding rails are all pasted with-resistant plastic.

CK0640 Flat Bed CNC Lathe Economical Precision Metal Turning Machine

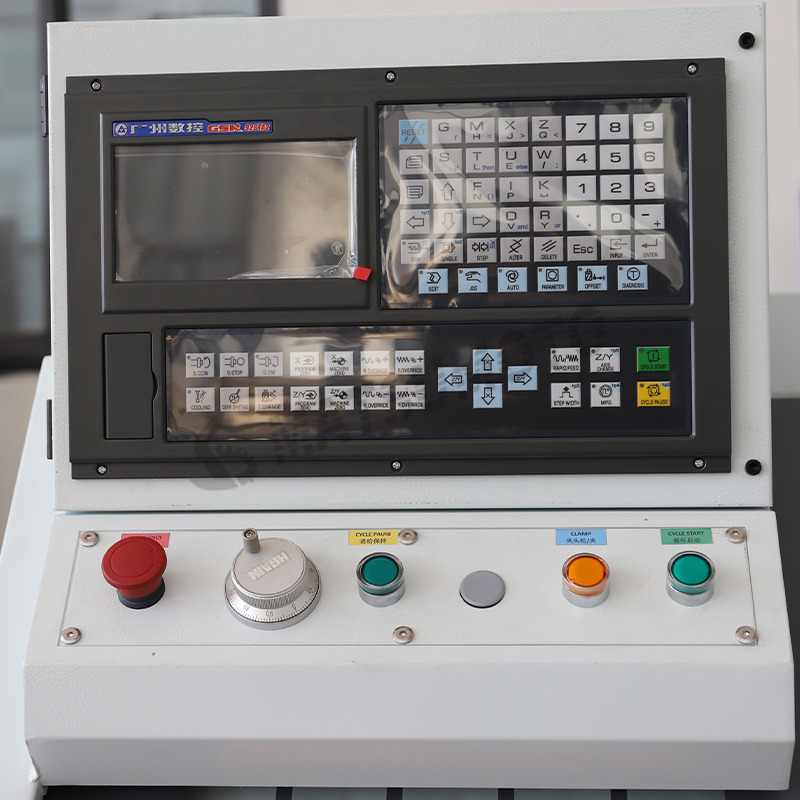

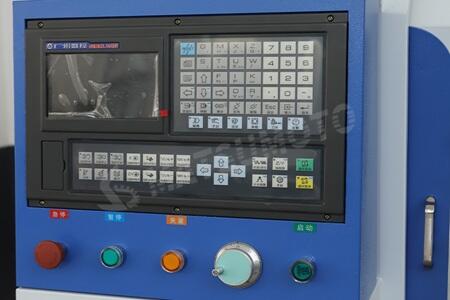

CNC CONTROL SYSTEM


Standard:GSK

Optional: FANUC/MITSUBISHI etc.

CK0640 Flat Bed CNC Lathe Economical Precision Metal Turning Machine

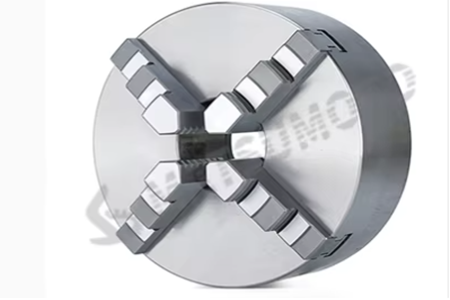

OPTIONAL ACCESSORIES


Precision three/four-jaw chuck.
