Horizontal CK6150 Flat Bed CNC Lathe Machine High Precision Metal Turning Lathe
Horizontal CK6150 Flat Bed CNC Lathe Machine High Precision Metal Turning Lathe
Horizontal CK6150 Flat Bed CNC Lathe Machine High Precision Metal Turning Lathe
Horizontal CK6150 Flat Bed CNC Lathe Machine High Precision Metal Turning Lathe
Horizontal CK6150 Flat Bed CNC Lathe Machine High Precision Metal Turning Lathe
Horizontal CK6150 Flat Bed CNC Lathe Machine High Precision Metal Turning Lathe
Horizontal CK6150 Flat Bed CNC Lathe Machine High Precision Metal Turning Lathe
Horizontal CK6150 Flat Bed CNC Lathe Machine High Precision Metal Turning Lathe
Horizontal CK6150 Flat Bed CNC Lathe Machine High Precision Metal Turning Lathe
Horizontal CK6150 Flat Bed CNC Lathe Machine High Precision Metal Turning Lathe
Specifications
Packaging Details :
plywood case
Spindle speed range :
50-500/300-1100/600-1600r/min
Repeat positioning accuracy :
±0.005mm
Model Number :
CK6150
Certification :
CE
Motor power :
7.5kw
MOQ :
1
Place of Origin :
China
Weight :
2800kg
Payment Terms :
T/T
Max. Swing over bed :
500mm
Brand Name :
Matsumoto
Max. Processing length :
750/1000/1500/2000mm
Price :
12500-18500
Delivery Time :
20 working days
Description
Horizontal CK6150 Flat Bed CNC Lathe Machine High Precision Metal Turning Lathe

The CK6150 flat‑bed CNC lathe is a heavy‑duty horizontal turning machine designed for precise metal machining. Built with high‑rigidity cast iron bed structure, it delivers stable cutting performance for continuous batch production.

This horizontal CNC lathe supports turning, boring, threading, grooving and facing operations for steel, iron, aluminum and other metal workpieces. Equipped with reliable CNC control system, it realizes automatic processing, reduces manual intervention and ensures consistent part accuracy.

Widely applied in machinery manufacturing, auto parts, hydraulic components, hardware and general‑purpose component processing. Optional configurations include hydraulic chuck, automatic tool post, tailstock and chip conveyor to meet diverse customer production requirements.

Specifications
PROJECTUNITCK6150
Max. Swing over bedmm500
Max. Swing Dia.over slidemm270
Max. Processing lengthmm750/1000/1500/2000
X axis travelmm280
Spindle speed series/Three gear/Promise
Spindle speed ranger/min50-500/300-1100/600-1600
Spindle nose/A2-8
Diameter of spindle through holemm82/105/130
Taper of spindle front holemmMT6
Motor power of spindlekw7.5
Chuck sizemm250
X/Z axis servo motor torqueN.MX:5.5/Z:7.5
X/Z axis fast movingm/minX:6/Z:8
Repeat positioning accuracymm±0.005
Tail stock quill diamm65
Tail stock quill travelmm140
Tail stock taper/MT5
Tool post form/4-station electric tool post
Tool sizemm25*25
Weightkg2800
Dimension(L*W*H)mm2800*1700*1800
Details Images
Horizontal CK6150 Flat Bed CNC Lathe Machine High Precision Metal Turning Lathe

BED CASTING

The key to castings is timeliness, putting quality first to ensure customer satisfaction.

Horizontal CK6150 Flat Bed CNC Lathe Machine High Precision Metal Turning Lathe

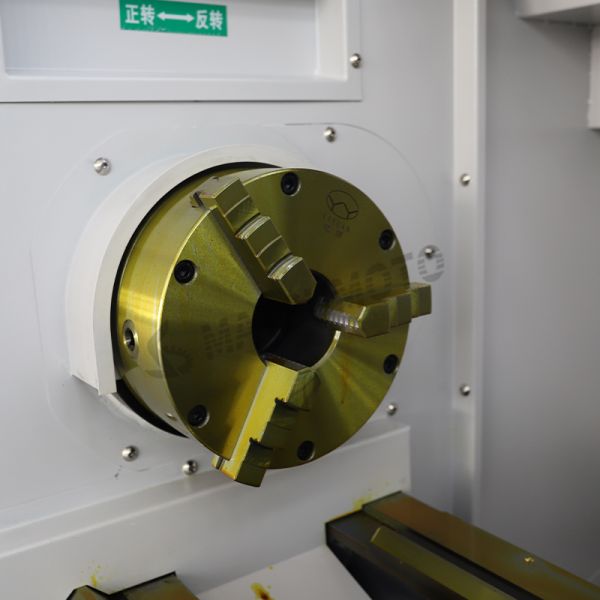

THREE-JAW CHUCK

Strong clamping during work, long use time.

Horizontal CK6150 Flat Bed CNC Lathe Machine High Precision Metal Turning Lathe

ELECTRIC CONTROL BOX

The wiring of the electric control box is neat and reasonable, and the original electric parts adopt brand accessories.

TOOL HOLDER

Four-station tool holder, multi-tool quick change.

Horizontal CK6150 Flat Bed CNC Lathe Machine High Precision Metal Turning Lathe

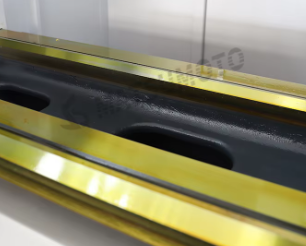

GUIDE

The guide rails are quenched by super audio frequency, and the sliding guide rails are all pasted with rear-resistant plastic.

Horizontal CK6150 Flat Bed CNC Lathe Machine High Precision Metal Turning Lathe

TAILSTOCK

Standard with manual tail stock

Optional:Hydraulic or pneumatic type tail stock.

Horizontal CK6150 Flat Bed CNC Lathe Machine High Precision Metal Turning Lathe

CNC CONTROL SYSTEM

Standard: GSK

Optional: FANUC/MITSUBISHI etc.

Horizontal CK6150 Flat Bed CNC Lathe Machine High Precision Metal Turning Lathe

OPTIONAL ACCESSORIES

Precision four-jaw chuck.
