Specifications
Model Number :
TCK50
Swing over cross slide :
260 mm
MOQ :
1
Packaging Details :
plywood case
Bar capacity :
55 mm
Price :
21500-26500
Spindle speed :
3000 rpm
Payment Terms :
T/T
Delivery Time :
25 working days
Brand Name :
Matsumoto
Swing over bed :
560 mm
Certification :
CE
Distance between centers :
350/500 mm
Place of Origin :
China
Spindle bore :
66 mm
Description

TCK50 Power Turret and Live Tools Slant Bed CNC Lathe Turning Center

The TCK50 is a rigid slant-bed CNC turn-mill compound lathe designed for high-efficiency one-setup machining. Equipped with live tooling power turret, it integrates turning, milling, drilling, boring and tapping functions in one machine, eliminating repeated clamping errors and greatly shortening production lead time.

Technical Specifications

SPECIFICATIONS
Units
TCK36A
TCK46A
TCK50A
Swing over bed
mm
360
460
560
Swing over cross slide
mm
170
170
260
Distance between centers
mm
300
350
350/500
Spindle bore
mm
48
56
66
Bar capacity
mm
40
45
55
Spindle speed steps
-
Stepless
Stepless
Stepless
Spindle nose type
-
A2-5
A2-5
A2-6
Spindle speed
rpm
4000
3500
3000
Turret/tool post
-
63-8T/12T
80-8T/12T
100-8T/12T
X axis travel
mm
310
240
240
Z axis travel
mm
350
400
400/450
X axis motor torque
N.m
6
7.5
7.5/10
Z axis motor torque
N.m
6
7.5
7.5/10
Main spindle motor
kw
3.7
5.5
7.5/11
Hydraulic tailstock quill dia.
mm
65
70
70
Hydraulic tailstock quill taper
-
MT4
MT5
MT5
Hydraulic tailstock travel
mm
220
200
200/450
Hydraulic tailstock quill traverse
mm
50
80
80
Guide rail type
-
Slant bed linear rail
Slant bed linear rail
Slant bed linear rail
Machine weight
kg
2100
2600
2800/3000
Overall dimension
mm
2100*1450*1700
2500x1700x1890
2500x1700x1890

Core Advantages

  • One‑setup multi‑process machining Integrates turning, milling, drilling, boring and tapping in a single clamping. Eliminates repeated re‑clamping errors and greatly improves part accuracy & production efficiency.
  • High‑rigidity machine structure Heavy‑duty one‑piece cast iron slant bed absorbs cutting vibration. Equipped with precision linear guideways, supports stable heavy‑cutting performance and long‑term accuracy retention.

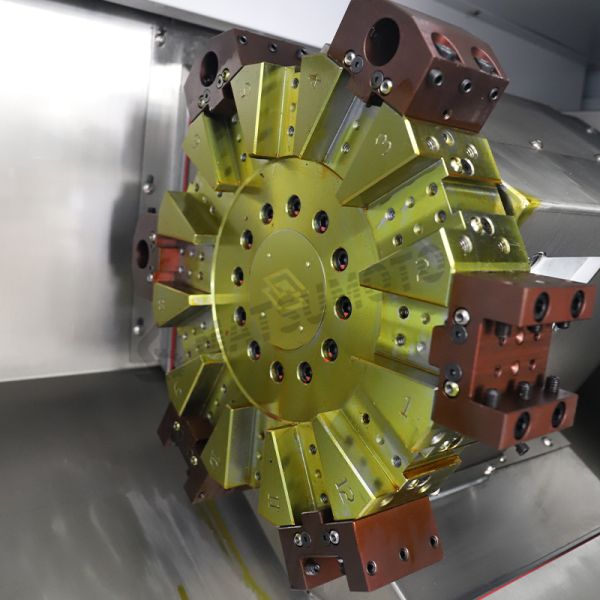

  • Powered live tool turret Standard live tooling enables radial and axial milling operations. Fast tool change shortens non‑cutting time for batch production.
  • Strict quality & compliance CE compliant, factory‑tested before delivery. Complete after‑sales service and technical support provided.

Target Applications

  • Automotive industry: Shaft parts, flange components, auto fittings, hydraulic valve bodies
  • Hydraulic & pneumatic: Valve cores, sleeves, piston rods, hydraulic manifold parts
  • Bearing & machinery manufacturing: Various shaft and disc‑type metal workpieces
  • Hardware & mold accessories: Precision hardware, custom mechanical components
  • Medical equipment: Small complex metal medical parts

Frequently Asked Questions (FAQ)

Q1: What electrical power and voltage standards are supported for export machines?
A: Our CNC lathes can be custom-wired to meet regional industrial power supplies, including 380V/415V 3-phase 50Hz/60Hz configurations or other local standards.

Q2: What quality inspection reports are provided prior to machine delivery?
A: Every machine undergoes rigorous laser interferometer compensation testing, ballbar circularity checks, and a 48-hour continuous dry-run test with an issued inspection certificate.

Q3: How is technical training and after-sales service handled for international buyers?
A: We offer remote online programming support, detailed multi-language operation manuals, video troubleshooting guides, and optional on-site engineer dispatch for installation and training.
