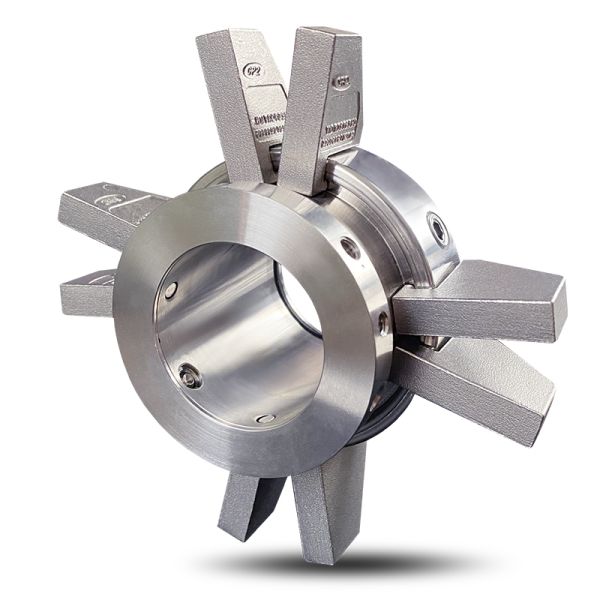

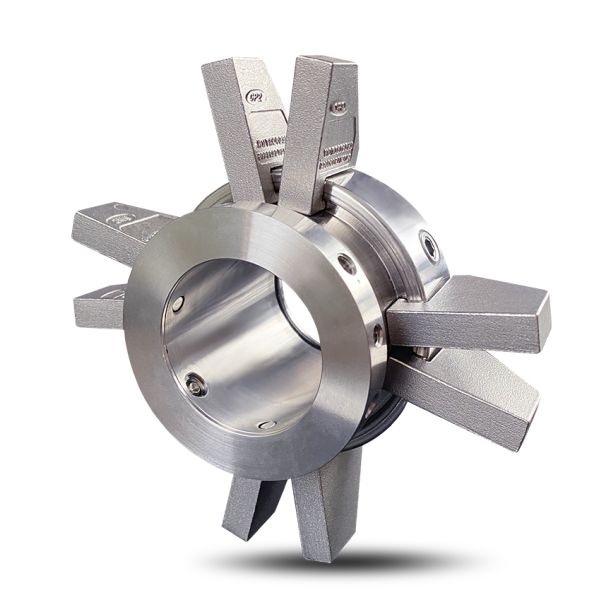

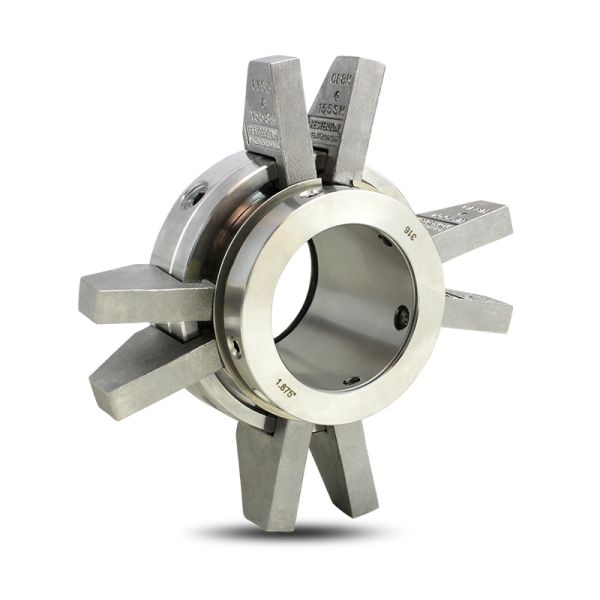

Chesterton 1510 1510L General Duty Single Cartridge Mechanical Seal
Chesterton 1510 1510L General Duty Single Cartridge Mechanical Seal
Chesterton 1510 1510L General Duty Single Cartridge Mechanical Seal
Chesterton 1510 1510L General Duty Single Cartridge Mechanical Seal
Chesterton 1510 1510L General Duty Single Cartridge Mechanical Seal
Chesterton 1510 1510L General Duty Single Cartridge Mechanical Seal
Chesterton 1510 1510L General Duty Single Cartridge Mechanical Seal
Chesterton 1510 1510L General Duty Single Cartridge Mechanical Seal
Chesterton 1510 1510L General Duty Single Cartridge Mechanical Seal
Chesterton 1510 1510L General Duty Single Cartridge Mechanical Seal
Chesterton 1510 1510L General Duty Single Cartridge Mechanical Seal
Chesterton 1510 1510L General Duty Single Cartridge Mechanical Seal
Specifications
Place of Origin :
CHINA
Temperature :
-55 to 300 °C (-67 to 570 °F)
Notes :
Seal pressure capabilities are dependent on the fluid sealed, temperature, speed, and seal face combinations. For operation outside the limits and additional materials consult BESTSEAL.
Delivery Time :
15 working days
Standards and Approvals :
ISO-3069C, ASME B73.1, ASME B73.2, ACS, WRAS, NSF61
Certification :
ISO9001
Metals :
EN 1.4401 (316SS), Other Metallurgies available on request
Elastomers :
FKM, EPDM, FEPM, FFKM
Speed :
25 m/s ( 5000 fpm )
Springs :
EN 2.4819 (Alloy C-276)
Model Number :
Chesterton 1510/1510L
Supply Ability :
1000000/Month
Variants :

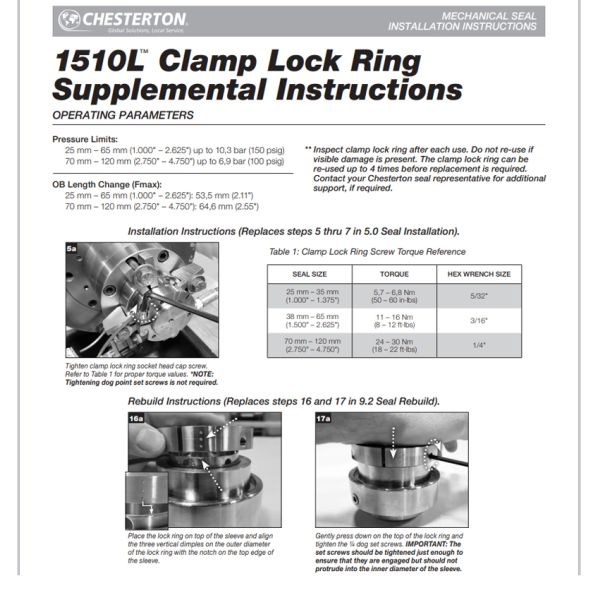

1510L - Single Screw Clamp Lock Ring, 1510OS - Oversized Seal Chambers
Packaging Details :
Carton
Brand Name :
BESTSEAL
Faces :
CB, TC, SSC
Pressure :
711 mm (28") Hg Vacuum – 20 bar g (300 psig)
MOQ :
1pc
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Size Range :
25 mm to 120 mm (1.000 inch to 4.750 inch)
Description

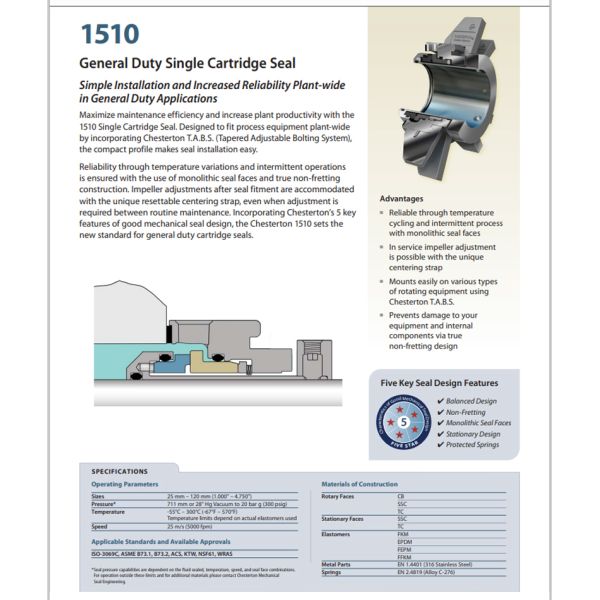

Chesterton 1510 1510L General Duty Single Cartridge Mechanical Seal

  • Mechanical Seals
  • Cartridge Seals
1510/1510L

Simple Installation and Increased Reliability Plant-Wide for General Duty Applications

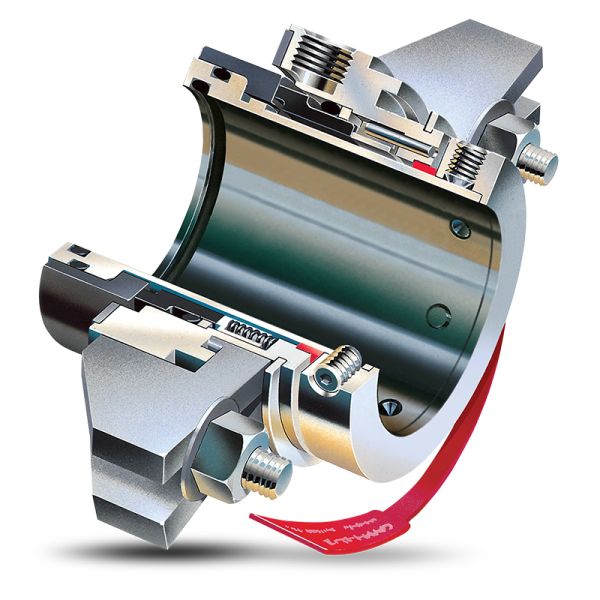

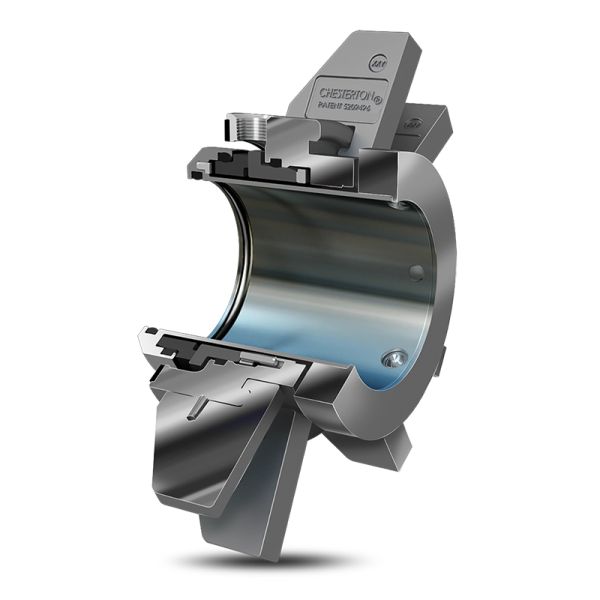

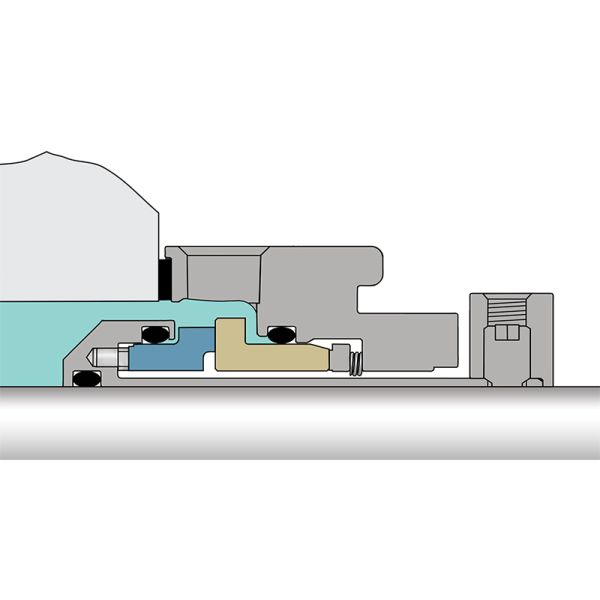

Maximize maintenance efficiency and increase plant productivity with the 1510 Single Cartridge Seal. Designed to fit process equipment plant-wide by incorporating Chesterton T.A.B.S.™ (Tapered Adjustable Bolting System), the compact profile makes seal installation easy. The use of monolithic seal faces and true non-fretting construction offers reliability through temperature variations and intermittent operations. Impeller adjustments after seal fitment are accommodated with the unique resettable centering strap, even when adjustment is required between routine maintenance. Incorporating Chesterton 5 key features of good mechanical seal design, the 1510 sets the new standard for general duty cartridge seals.

Product Features
  • Reliable through temperature cycling and intermittent process with monolithic seal faces
  • In-service impeller adjustment is possible with the unique centering strap
  • Mounts easily on various types of rotating equipment using Chesterton T.A.B.S.
  • Prevents damage to your equipment and internal components via true non-fretting design
Technical Data

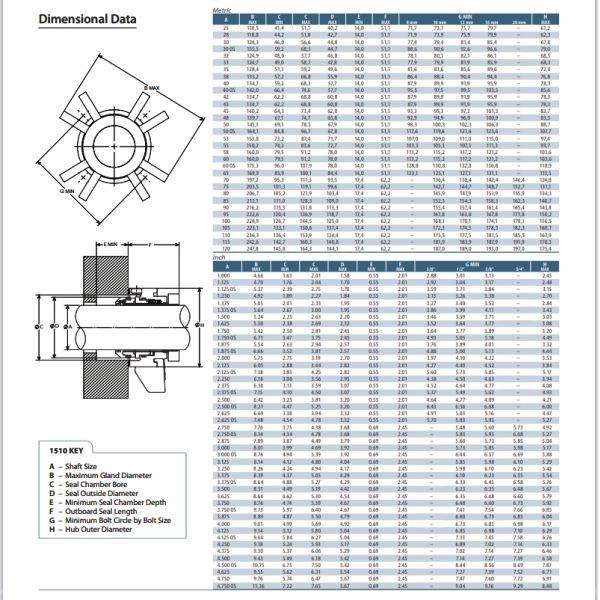

Size Range 25 mm to 120 mm (1.000 inch to 4.750 inch)
Standards and Approvals ISO-3069C, ASME B73.1, ASME B73.2, ACS, WRAS, NSF61
Variants 1510L - Single Screw Clamp Lock Ring
1510OS - Oversized Seal Chambers
Materials
Faces CB, TC, SSC
Elastomers FKM, EPDM, FEPM, FFKM
Metals EN 1.4401 (316SS), Other Metallurgies available on request
Springs EN 2.4819 (Alloy C-276)
Operating Conditions
Temperature -55 to 300 °C (-67 to 570 °F)
Speed 25 m/s ( 5000 fpm )
Pressure

711 mm (28") Hg Vacuum – 20 bar g (300 psig)
Notes Seal pressure capabilities are dependent on the fluid sealed, temperature, speed, and seal face combinations. For operation outside the limits and additional materials consult BESTSEAL.

Chesterton 1510 1510L General Duty Single Cartridge Mechanical Seal

Chesterton 1510 1510L General Duty Single Cartridge Mechanical Seal

Chesterton 1510 1510L General Duty Single Cartridge Mechanical Seal

Chesterton 1510 1510L General Duty Single Cartridge Mechanical Seal

Chesterton 1510 1510L General Duty Single Cartridge Mechanical Seal

Chesterton 1510 1510L General Duty Single Cartridge Mechanical Seal
