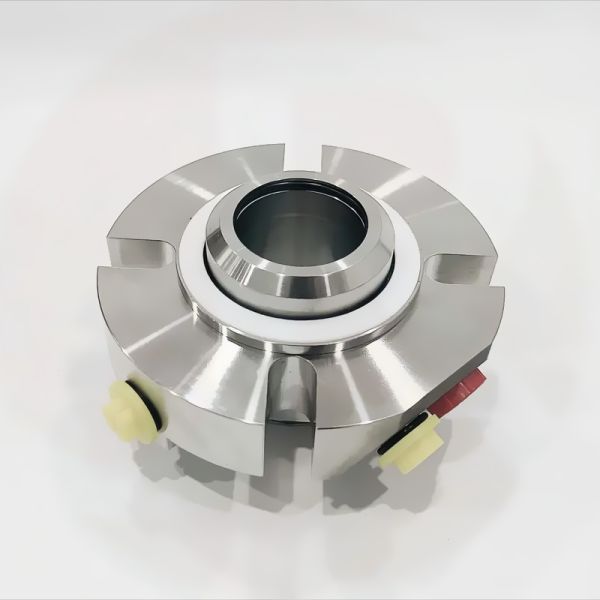

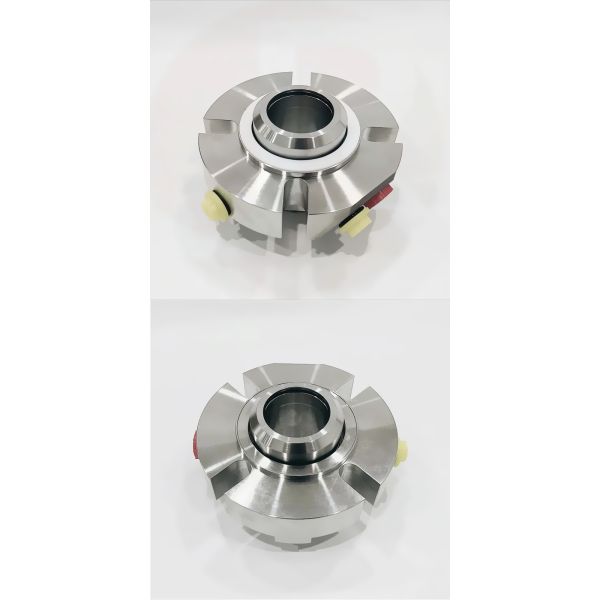

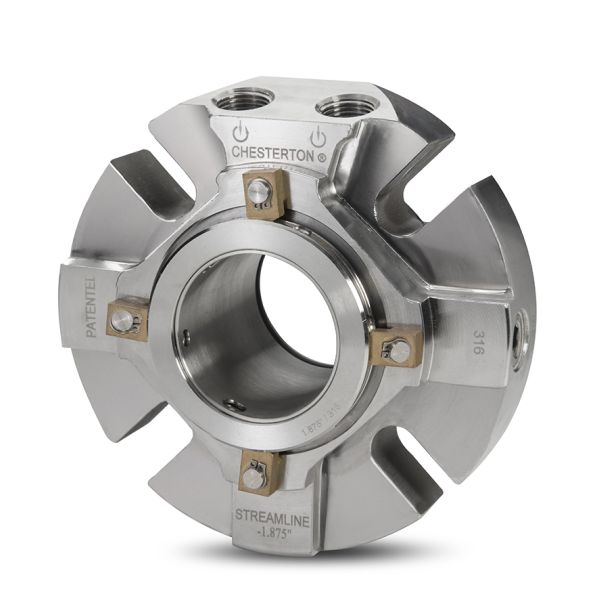

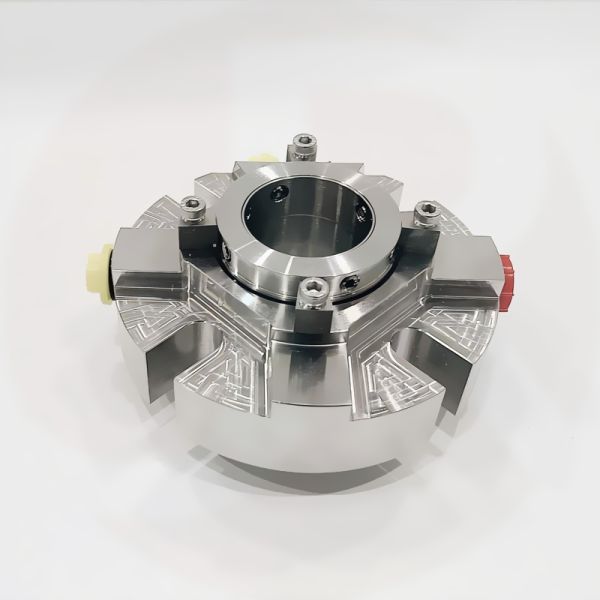

Chesterton S10 High Performance Single Cassette Cartridge Mechanical Seal
Chesterton S10 High Performance Single Cassette Cartridge Mechanical Seal
Chesterton S10 High Performance Single Cassette Cartridge Mechanical Seal
Chesterton S10 High Performance Single Cassette Cartridge Mechanical Seal
Chesterton S10 High Performance Single Cassette Cartridge Mechanical Seal
Chesterton S10 High Performance Single Cassette Cartridge Mechanical Seal
Chesterton S10 High Performance Single Cassette Cartridge Mechanical Seal
Chesterton S10 High Performance Single Cassette Cartridge Mechanical Seal
Chesterton S10 High Performance Single Cassette Cartridge Mechanical Seal
Chesterton S10 High Performance Single Cassette Cartridge Mechanical Seal
Chesterton S10 High Performance Single Cassette Cartridge Mechanical Seal
Chesterton S10 High Performance Single Cassette Cartridge Mechanical Seal
Chesterton S10 High Performance Single Cassette Cartridge Mechanical Seal
Chesterton S10 High Performance Single Cassette Cartridge Mechanical Seal
Chesterton S10 High Performance Single Cassette Cartridge Mechanical Seal
Chesterton S10 High Performance Single Cassette Cartridge Mechanical Seal
Specifications
Packaging Details :
Carton
Standards and Approvals :
ISO-3069C, ASME B73.1, ASME B73.2, NSF61
Springs :
EN 2.4819 (Alloy C-276)
Model Number :
Chesterton S10
Certification :
ISO9001
Metals :
EN 1.4401 (316SS), Other Metallurgies available on request
Elastomers :
FKM, EPDM, FEPM, FFKM
Speed :
25 m/s ( 5000 fpm )
Temperature :
-55 to 300 °C (-67 to 570 °F)
Notes :
Seal pressure capabilities are dependent on the fluid sealed, temperature, speed, and seal face combinations. For operation outside the limits and additional materials consult BESTSEAL.
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Brand Name :
BESTSEAL
Size Range :
25 mm to 120 mm (1.000 inch to 4.750 inch)
Place of Origin :
CHINA
Variants :
S10PQ - Positive Quench, S10CS - Coatings Seal, S10OS - Oversized Seal Chambers
MOQ :
1pc
Faces :
CB, TC, SSC
Supply Ability :
1000000/Month
Delivery Time :
15 working days
Pressure :
711 mm (28") Hg Vacuum – 30 bar g (450 psig)
Description

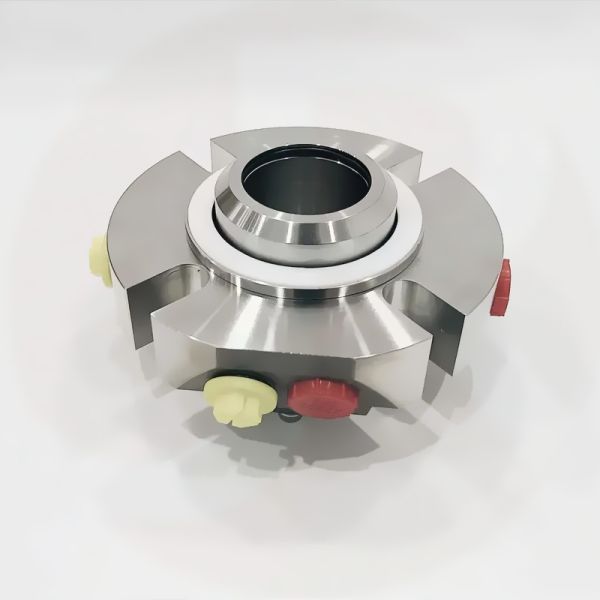

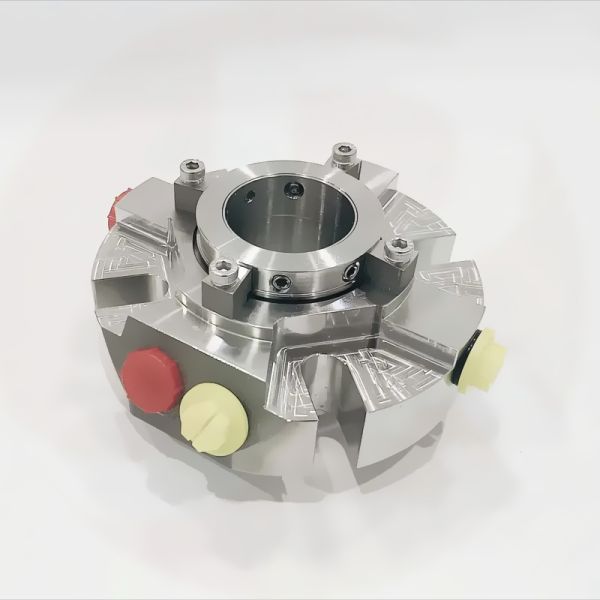

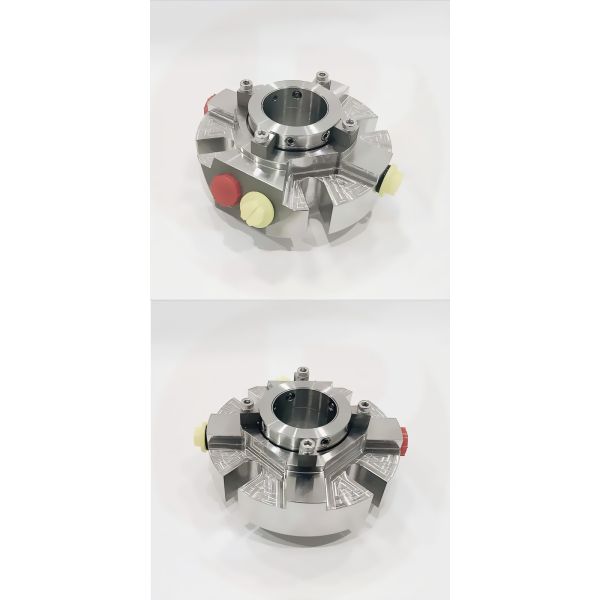

Chesterton S10 High Performance Single Cassette Cartridge Mechanical Seal
  • Mechanical Seals
  • Cartridge Seals

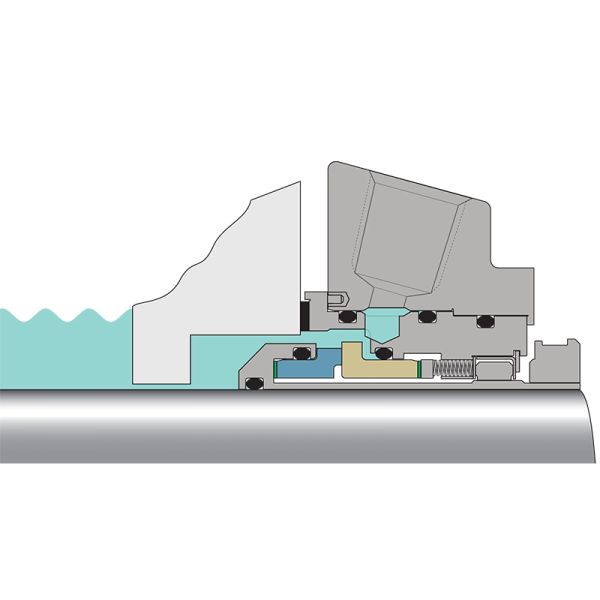

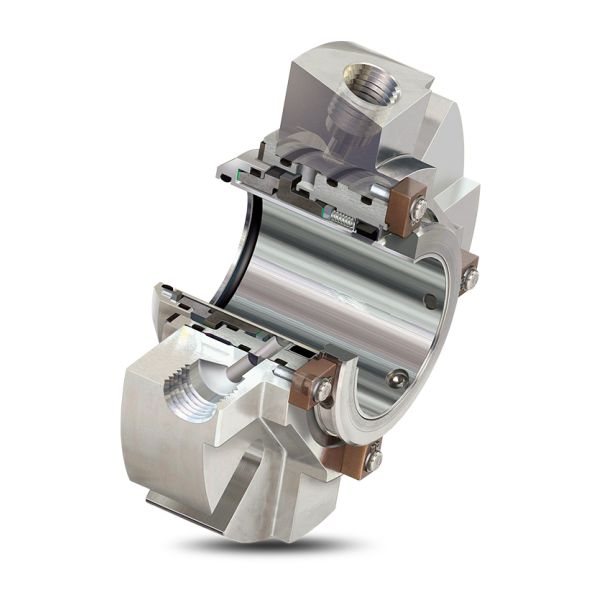

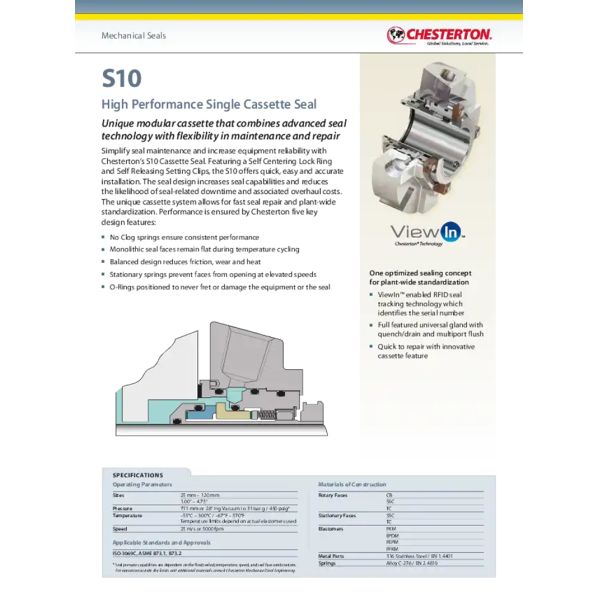

S10

High Performance Single Cassette Seal

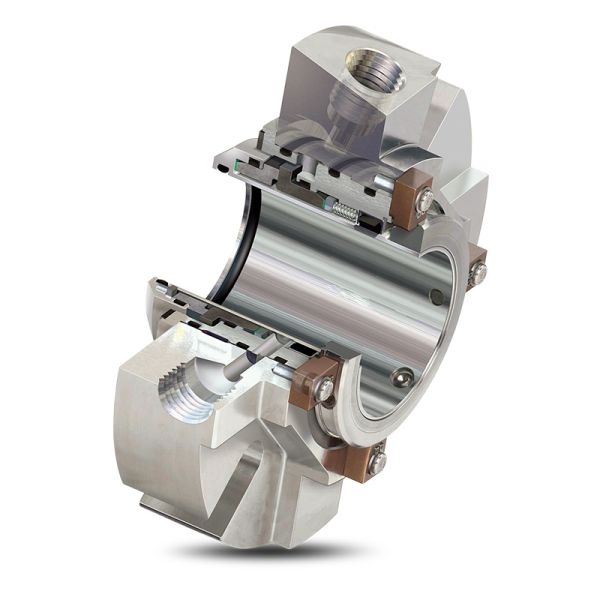

Unique modular cassette that combines advanced seal technology with flexibility in maintenance and repair.

Simplify seal maintenance and increase equipment reliability with Chesterton's S10 Cassette Seal. Featuring a Self Centering Lock Ring and Self Releasing Setting Clips, the S10 offers quick, easy and accurate installation. The seal design increases seal capabilities and reduces the likelihood of seal-related downtime and associated overhaul costs. The unique cassette system allows for fast seal repair and plant-wide standardization.

Product Features
  • One optimized sealing concept for plant-wide standardization
  • Full-featured universal gland with quench/drain and multi-port flush
  • Quick to repair with innovative cassette feature

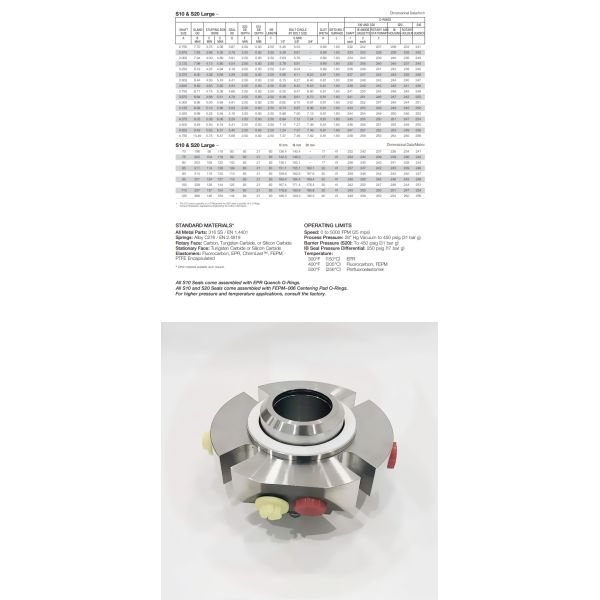

Technical Data

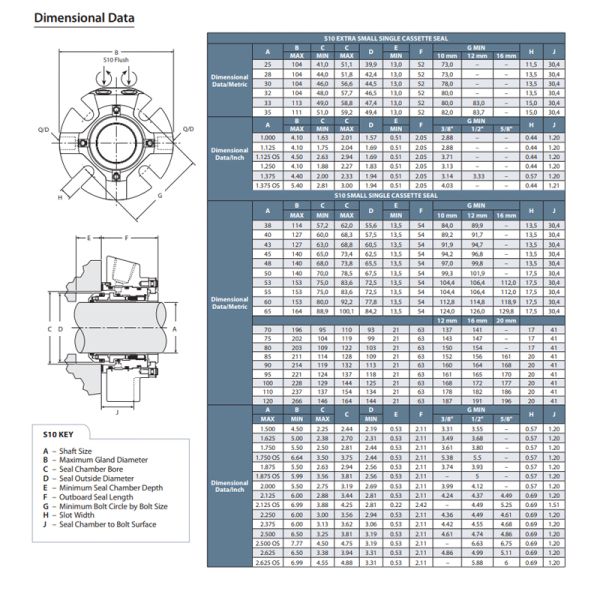

Size Range 25 mm to 120 mm (1.000 inch to 4.750 inch)
Standards and Approvals ISO-3069C, ASME B73.1, ASME B73.2, NSF61
Variants S10PQ - Positive Quench
S10CS - Coatings Seal
S10OS - Oversized Seal Chambers
Materials
Faces CB, TC, SSC
Elastomers FKM, EPDM, FEPM, FFKM
Metals EN 1.4401 (316SS), Other Metallurgies available on request
Springs EN 2.4819 (Alloy C-276)
Operating Conditions
Temperature -55 to 300 °C (-67 to 570 °F)
Speed 25 m/s ( 5000 fpm )
Pressure

711 mm (28") Hg Vacuum – 30 bar g (450 psig)
Notes Seal pressure capabilities are dependent on the fluid sealed, temperature, speed, and seal face combinations. For operation outside the limits and additional materials consult BESTSEAL.
