Steel EPDM FEPM chesterton Type 155 pump seals 316SS single mechanical seal
Steel EPDM FEPM chesterton Type 155 pump seals 316SS single mechanical seal
Steel EPDM FEPM chesterton Type 155 pump seals 316SS single mechanical seal
Steel EPDM FEPM chesterton Type 155 pump seals 316SS single mechanical seal
Steel EPDM FEPM chesterton Type 155 pump seals 316SS single mechanical seal
Steel EPDM FEPM chesterton Type 155 pump seals 316SS single mechanical seal
Steel EPDM FEPM chesterton Type 155 pump seals 316SS single mechanical seal
Steel EPDM FEPM chesterton Type 155 pump seals 316SS single mechanical seal
Steel EPDM FEPM chesterton Type 155 pump seals 316SS single mechanical seal
Steel EPDM FEPM chesterton Type 155 pump seals 316SS single mechanical seal
Specifications
Speed :
20 m/s ( 4000 fpm )
Certification :
ISO9001
Standards and Approvals :
ISO-3069C, ASME B73.1, ASME B73.2, NSF61
MOQ :
1pc
Metals :
EN 1.4401 (316SS), Other Metallurgies available on request
Pressure :
711 mm (28") Hg Vacuum – 40 bar g (600 psig)
Delivery Time :
15 working days
Packaging Details :
Carton
Temperature :
-55 to 300 °C (-67 to 570 °F)
Springs :
EN 2.4819 (Alloy C-276)
Faces :
CB, TC, SSC
Place of Origin :
CHINA
Model Number :
Chesterton 150/150L
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Size Range :
25 mm to 120 mm (1.000 inch to 4.750 inch)
Brand Name :
BESTSEAL
Supply Ability :
1000000/Month
Elastomers :
FKM, EPDM, FEPM, FFKM
Notes :
Seal pressure capabilities are dependent on the fluid sealed, temperature, speed, and seal face combinations. For operation outside the limits and additional materials consult BESTSEAL.
Description

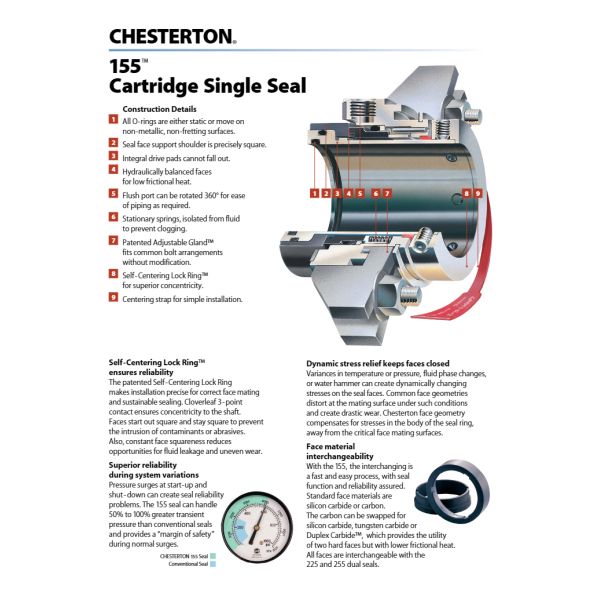

Chesterton 155 Standard Single Cartridge Mechanical Seal

  • Mechanical Seals
  • Cartridge Seals
155

Standard Single Cartridge Seal

A single cartridge design for plant-wide flexibility and ease-of-use.

Product Features
  • Low heat generation monolithic seal faces
  • Dual 360 degree rotation flush/monitoring ports

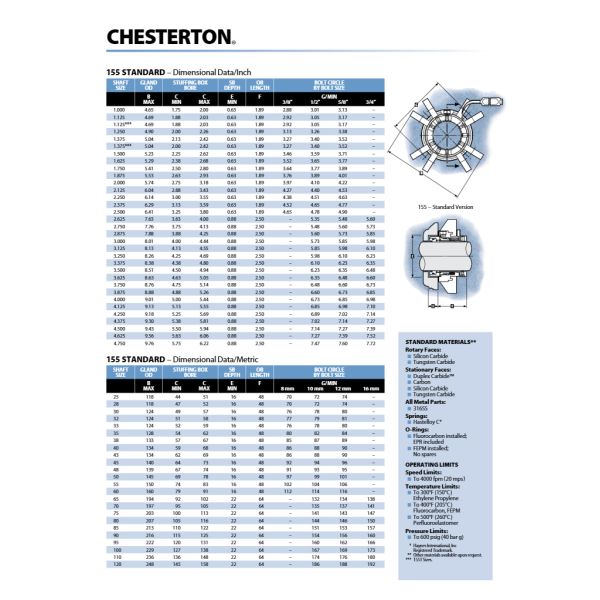

Technical Data
Size Range 25 mm to 120 mm (1.000 inch to 4.750 inch)
Standards and Approvals ISO-3069C, ASME B73.1, ASME B73.2, NSF61
Materials
Faces CB, TC, SSC
Elastomers FKM, EPDM, FEPM, FFKM
Metals EN 1.4401 (316SS), Other Metallurgies available on request
Springs EN 2.4819 (Alloy C-276)
Operating Conditions
Temperature -55 to 300 °C (-67 to 570 °F)
Speed 20 m/s ( 4000 fpm )
Pressure

711 mm (28") Hg Vacuum – 40 bar g (600 psig)
Notes Seal pressure capabilities are dependent on the fluid sealed, temperature, speed, and seal face combinations. For operation outside the limits and additional materials consult BESTSEAL.

Steel EPDM FEPM chesterton Type 155 pump seals 316SS single mechanical seal

Steel EPDM FEPM chesterton Type 155 pump seals 316SS single mechanical seal

Steel EPDM FEPM chesterton Type 155 pump seals 316SS single mechanical seal

Steel EPDM FEPM chesterton Type 155 pump seals 316SS single mechanical seal

Steel EPDM FEPM chesterton Type 155 pump seals 316SS single mechanical seal

Steel EPDM FEPM chesterton Type 155 pump seals 316SS single mechanical seal

Steel EPDM FEPM chesterton Type 155 pump seals 316SS single mechanical seal

Steel EPDM FEPM chesterton Type 155 pump seals 316SS single mechanical seal
